16-823 Series

Catalog

CONN IC DIP SOCKET 16POS GOLD

Part	Material Flammability Rating	Termination Post Length	Termination Post Length	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Housing Material	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Post	Contact Finish - Mating	Type	Type	Type	Contact Material - Post [custom]	Contact Material - Post
Aries Electronics 16-823-90C	UL94 V-0	3.56 mm	0.14 in	3 A	0.1 "	2.54 mm	Beryllium Copper	0.1 in	2.54 mm	200 µin	5.08 µm	Polyamide (PA46) Nylon 4/6 Glass Filled	Closed Frame	0.76 Ám	30 Áin	2	16	8	-55 C	105 ░C	Solder	Tin	Gold	7.62 mm	0.3 in	DIP	Brass

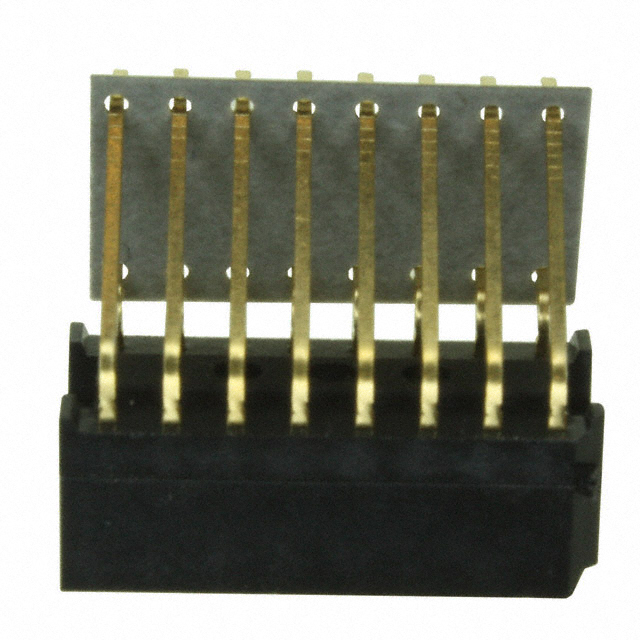

Aries Electronics 16-823-90	UL94 V-0	3.68 mm	0.145 in	1.5 A	0.1 "	2.54 mm	Phosphor Bronze	0.1 in	2.54 mm	10 Áin	0.25 çm	Polyamide (PA46) Nylon 4/6	Closed Frame	0.25 µm	10 µin	2	16	8			Solder	Gold	Gold	7.62 mm	0.3 in	DIP		Phosphor Bronze
Aries Electronics 16-823-90TWR	UL94 V-0	3.68 mm	0.145 in	1.5 A	0.1 "	2.54 mm	Phosphor Bronze	0.1 in	2.54 mm	200 µin	5.08 µm	Polyamide (PA46) Nylon 4/6	Closed Frame	5.08 µm	200 µin	2	16	8			Solder	Tin		7.62 mm	0.3 in	DIP		Phosphor Bronze
Aries Electronics 16-823-90WR	UL94 V-0	3.68 mm	0.145 in	1.5 A	0.1 "	2.54 mm	Phosphor Bronze	0.1 in	2.54 mm	10 Áin	0.25 çm	Polyamide (PA46) Nylon 4/6	Closed Frame	0.25 µm	10 µin	2	16	8			Solder	Gold	Gold	7.62 mm	0.3 in	DIP		Phosphor Bronze
Aries Electronics 16-823-90T	UL94 V-0	3.68 mm	0.145 in	1.5 A	0.1 "	2.54 mm	Phosphor Bronze	0.1 in	2.54 mm	200 µin	5.08 µm	Polyamide (PA46) Nylon 4/6	Closed Frame	5.08 µm	200 µin	2	16	8			Solder	Tin		7.62 mm	0.3 in	DIP		Phosphor Bronze
