AGL250V2 Series

Ultra Low Density FPGAs

Catalog

Ultra Low Density FPGAs

Part	Number of I/O	Mounting Type	Package / Case	Number of Logic Elements/Cells	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Gates
Microchip Technology AGL250V5-FGG144I	97	Surface Mount	144-LBGA	6144	13x13 144-FPBGA	1.575 V	1.425 V	85 °C	-40 °C	250000
Microchip Technology AGL250V5-VQG100	68 I/O	Surface Mount	100-TQFP	6144	100-VQFP (14x14)	1.575 V	1.425 V	70 °C	0 °C	250000

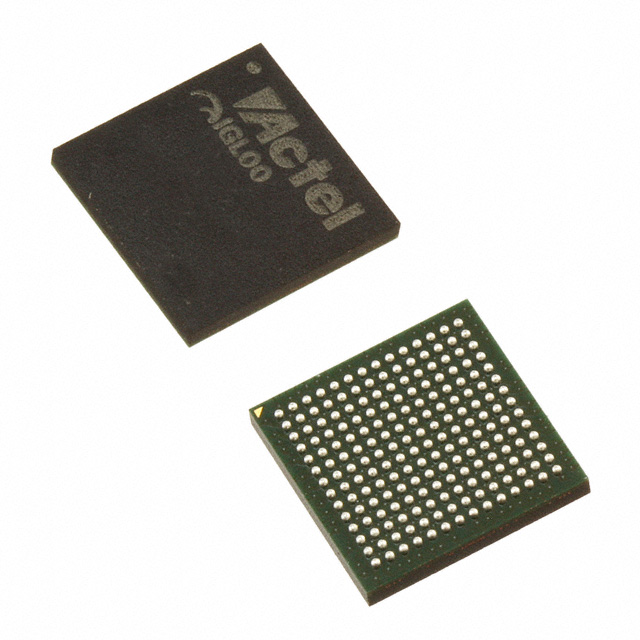

Microchip Technology AGL250V5-CSG196	143	Surface Mount	196-TFBGA CSBGA	6144	196-CSP (8x8)	1.575 V	1.425 V	70 °C	0 °C	250000
Microchip Technology AGL250V5-CS196I	143	Surface Mount	196-TFBGA CSBGA	6144	196-CSP (8x8)	1.575 V	1.425 V	85 °C	-40 °C	250000
Microchip Technology AGL250V2-CS196	143	Surface Mount	196-TFBGA CSBGA	6144	196-CSP (8x8)	1.575 V	1.14 V	70 °C	0 °C	250000
Microchip Technology AGL250V2-CS196I	143	Surface Mount	196-TFBGA CSBGA	6144	196-CSP (8x8)	1.575 V	1.14 V	85 °C	-40 °C	250000
Microchip Technology AGL250V5-VQG100I	68 I/O	Surface Mount	100-TQFP	6144	100-VQFP (14x14)	1.575 V	1.425 V	85 °C	-40 °C	250000
Microchip Technology AGL250V5-VQ100I	68 I/O	Surface Mount	100-TQFP	6144	100-VQFP (14x14)	1.575 V	1.425 V	85 °C	-40 °C	250000
Microchip Technology AGL250V2-VQ100I	68 I/O	Surface Mount	100-TQFP	6144	100-VQFP (14x14)	1.575 V	1.14 V	85 °C	-40 °C	250000
Microchip Technology AGL250V2-VQ100	68 I/O	Surface Mount	100-TQFP	6144	100-VQFP (14x14)	1.575 V	1.14 V	70 °C	0 °C	250000

Catalog

Ultra Low Density FPGAs

Key Features

• * 3K logic elements

• * 36 Kbits RAM

• * 1Kb FlashROM

• * 1 PLL in CCC

• * Temperature - Commercial, Industrial

Description

IGLOO offers the lowest power FPGA, small footprint packages, reprogrammability, and an abundance of features. Key Features • Ultra-low power in Flash\*Freeze mode, as low as 51 µW • 1.5V Core voltage support • Proven Security • Protection from Overbuilding and Cloning • Exceptional Reliability
