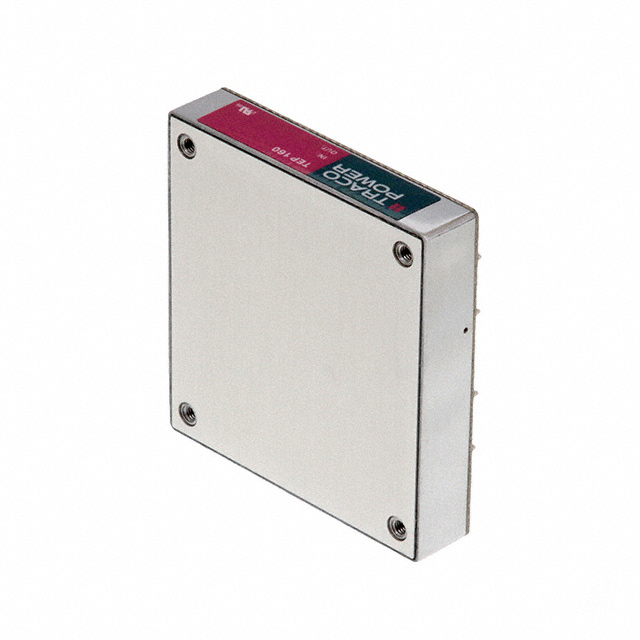

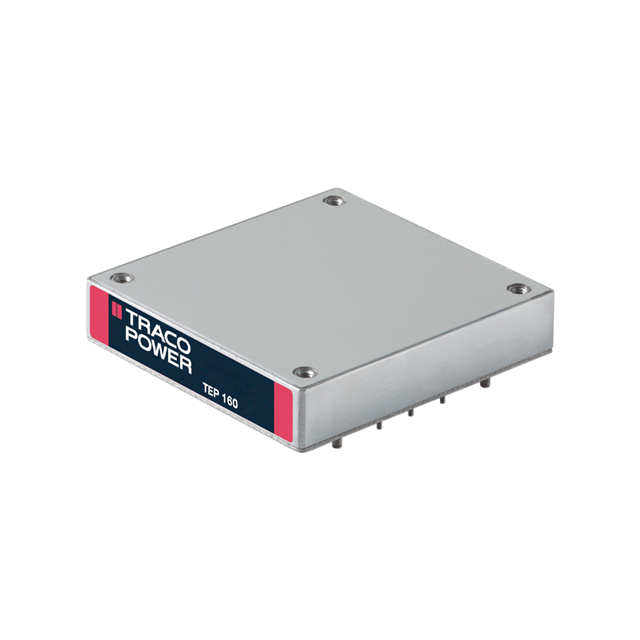

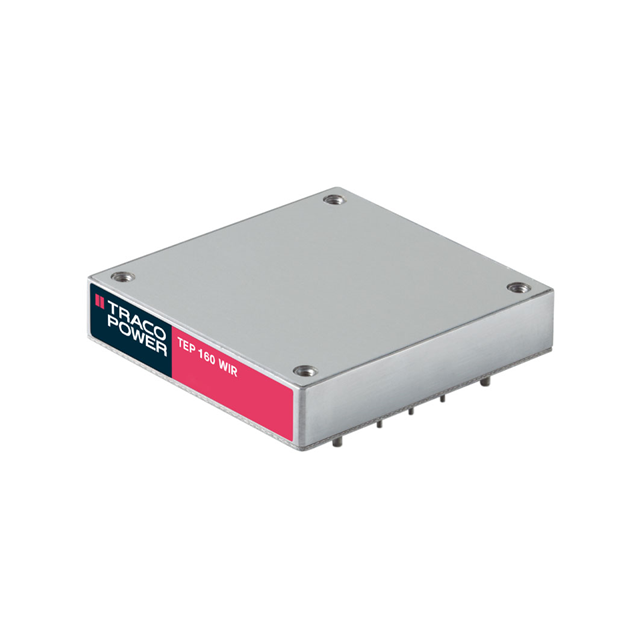

TEP 160 Series
Manufacturer: Traco Power
Beta
⌘K
DC/DC CONVERTER 24V 144W
| Part | Mounting Type | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Number of Outputs | Power (Watts) | Efficiency | Voltage - Input (Min) [Min] | Approval Agency | Voltage - Input (Max) [Max] | Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Voltage - Isolation | Current - Output (Max) | Features | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Chassis Mount | 6 A | 85.1 mm | 3.35 in | 1.33 in | 33.8 mm | 61 mm | 2.4 in | 1 | 144 W | 90 % | 9 V | CB CE cURus | 36 V | Enclosed | ITE (Commercial) Railway | 75 °C | -40 °C | 24 V | 2250 VDC | ||||
Traco Power | Chassis Mount | 28 A | 85.1 mm | 3.35 in | 1.33 in | 33.8 mm | 61 mm | 2.4 in | 1 | 140 W | 90 % | 9 V | CB CE cURus | 36 V | Enclosed | ITE (Commercial) Railway | 75 °C | -40 °C | 5 V | 2250 VDC | ||||
Traco Power | Chassis Mount | 85.1 mm | 3.35 in | 1.33 in | 33.8 mm | 61 mm | 2.4 in | 1 | 140 W | 90 % | 9 V | CB CE cURus | 36 V | Enclosed | ITE (Commercial) Railway | 75 °C | -40 °C | 28 V | 2250 VDC | 5 A | ||||
 Traco Power | Through Hole | 5.5 A | 61 mm | 2.4 in | 0.5 in | 12.7 mm | 57.9 mm | 2.28 in | 1 | 154 W | 93 % | 16.5 V | 36 V | Isolated Module | ITE (Commercial) Railway | 75 ░C | -40 C | 28 V | 2250 VDC | OTP OVP Remote On/Off SCP | 9-DIP Module | |||
Traco Power | Chassis Mount | 3.2 A | 85.1 mm | 3.35 in | 1.33 in | 33.8 mm | 61 mm | 2.4 in | 1 | 154 W | 91 % | 18 V | CB CE cURus | 75 V | Enclosed | ITE (Commercial) Railway | 75 °C | -40 °C | 48 V | 2250 VDC | ||||
 Traco Power | Through Hole | 40 A | 61 mm | 2.4 in | 0.5 in | 12.7 mm | 57.9 mm | 2.28 in | 1 | 132 W | 88 % | 16.5 V | 36 V | Isolated Module | ITE (Commercial) Railway | 75 ░C | -40 C | 3.3 V | 2250 VDC | OTP OVP Remote On/Off SCP UVLO | Half Brick | Half Brick | ||
 Traco Power | Through Hole | 7 A | 61 mm | 2.4 in | 0.5 in | 12.7 mm | 57.9 mm | 2.28 in | 1 | 196 W | 92 % | 33 V | 75 V | Isolated Module | ITE (Commercial) Railway | 75 ░C | -40 C | 28 V | 2250 VDC | OTP OVP Remote On/Off SCP | 9-DIP Module | |||
Traco Power | Chassis Mount | 40 A | 85.1 mm | 3.35 in | 1.27 " | 32.3 mm | 61 mm | 2.4 in | 1 | 132 W | 88 % | 16.5 V | 36 V | Enclosed | ITE (Commercial) | 75 °C | -40 °C | 3.3 V | 2250 VDC | |||||
Traco Power | Chassis Mount | 28 A | 85.1 mm | 3.35 in | 1.33 in | 33.8 mm | 61 mm | 2.4 in | 1 | 140 W | 90 % | 9 V | CB CE cURus | 36 V | Enclosed | ITE (Commercial) Railway | 75 °C | -40 °C | 5 V | 2250 VDC | ||||
Traco Power | Chassis Mount | 34 A | 85.1 mm | 3.35 in | 1.27 " | 32.3 mm | 61 mm | 2.4 in | 1 | 170 W | 91 % | 33 V | 75 V | Enclosed | ITE (Commercial) | 75 °C | -40 °C | 5 V | 2250 VDC |
