AD7264 Series

Catalog

IC ADC 14BIT SAR 48LQFP

Part	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Data Interface	Sampling Rate (Per Second)	Ratio - S/H:ADC	Number of Bits	Mounting Type	Voltage - Supply, Analog	Number of Inputs	Configuration	Number of A/D Converters	Features	Package / Case	Architecture	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Reference Type	Input Type	Supplied Contents	Power (Typ) @ Conditions	Input Range	Utilized IC / Part	Sampling Rate (Per Second)
Analog Devices AD7264BSTZ-5-RL7	5.25 V	2.7 V	DSP SPI	500k	1:1	14	Surface Mount	5 V	2	PGA-S/H-ADC	2	PGA Simultaneous Sampling	48-LQFP	SAR	48-LQFP (7x7)	-40 °C	105 ░C	External Internal	Differential
Analog Devices AD7264BCPZ-5	5.25 V	2.7 V	DSP SPI	500k	1:1	14	Surface Mount	5 V	2	PGA-S/H-ADC	2	PGA Simultaneous Sampling	48-VFQFN Exposed Pad CSP	SAR	48-LFCSP-VQ (7x7)	-40 °C	105 ░C	External Internal	Differential

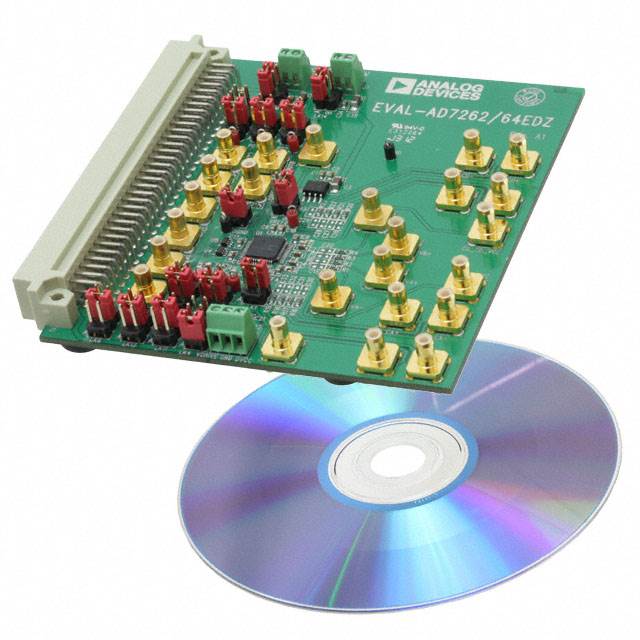

Analog Devices EVAL-AD7264EDZ			Serial			14					1									Board(s)	120 mW	5 Vpp	AD7264	1 M
Analog Devices AD7264BCPZ-5-RL7	5.25 V	2.7 V	DSP SPI	500k	1:1	14	Surface Mount	5 V	2	PGA-S/H-ADC	2	PGA Simultaneous Sampling	48-VFQFN Exposed Pad CSP	SAR	48-LFCSP-VQ (7x7)	-40 °C	105 ░C	External Internal	Differential
Analog Devices AD7264BSTZ	5.25 V	2.7 V	DSP SPI		1:1	14	Surface Mount	5 V	2	PGA-S/H-ADC	2	PGA Simultaneous Sampling	48-LQFP	SAR	48-LQFP (7x7)	-40 °C	105 ░C	External Internal	Differential					1 M
Analog Devices AD7264BCPZ-RL7	5.25 V	2.7 V	DSP SPI		1:1	14	Surface Mount	5 V	2	PGA-S/H-ADC	2	PGA Simultaneous Sampling	48-VFQFN Exposed Pad CSP	SAR	48-LFCSP-VQ (7x7)	-40 °C	105 ░C	External Internal	Differential					1 M
Analog Devices AD7264BSTZ-5	5.25 V	2.7 V	DSP SPI	500k	1:1	14	Surface Mount	5 V	2	PGA-S/H-ADC	2	PGA Simultaneous Sampling	48-LQFP	SAR	48-LQFP (7x7)	-40 °C	105 ░C	External Internal	Differential
Analog Devices AD7264BSTZ-RL7	5.25 V	2.7 V	DSP SPI		1:1	14	Surface Mount	5 V	2	PGA-S/H-ADC	2	PGA Simultaneous Sampling	48-LQFP	SAR	48-LQFP (7x7)	-40 °C	105 ░C	External Internal	Differential					1 M
