333-016 Series
Manufacturer: EDAC Inc.
Beta
⌘K

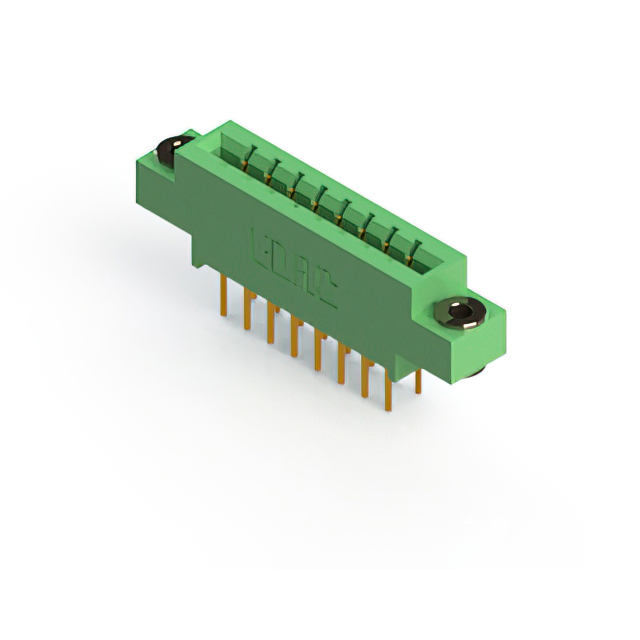

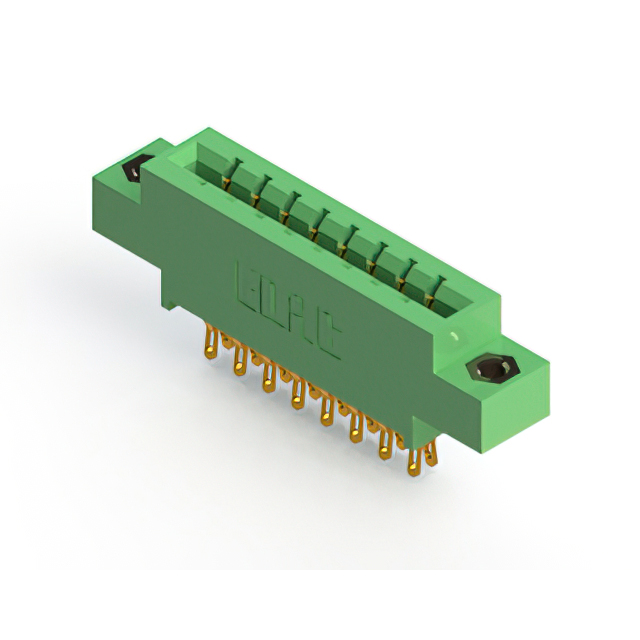

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 16 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Contact Finish | Color | Termination | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Card Type | Pitch | Pitch | Contact Type | Mounting Type | Contact Material | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Number of Rows | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | 0.156 " | 3.96 mm | Female | Gold | Green | Solder | Dual | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 8 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Cantilever | Through Hole | Copper Alloy | 16 | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Polyester Thermoplastic | 0.128 " | 3.25 mm | Female | Gold | Green | Solder | Single | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 16 | Non Specified - Single Edge | 3.96 mm | 0.156 in | Cantilever | Through Hole | Copper Alloy | 16 | 0.25 Ám | 10 Áin | 1 | 1 | Side Mount Opening Unthreaded | |||
 EDAC Inc. | Polyester Thermoplastic | 0.116 " | 2.95 mm | Female | Gold | Green | Wire Wrap | Single | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 16 | Non Specified - Single Edge | 3.96 mm | 0.156 in | Cantilever | Through Hole | Copper Alloy | 16 | 0.25 Ám | 10 Áin | 1 | 1 | Floating Bobbin Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | 0.116 " | 2.95 mm | Female | Gold | Green | Wire Wrap | Dual | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 8 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Cantilever | Through Hole | Copper Alloy | 16 | 0.25 Ám | 10 Áin | Floating Bobbin Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Female | Gold | Green | Solder | Dual | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 8 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Cantilever | Right Angle Through Hole | Copper Alloy | 16 | 0.25 Ám | 10 Áin | M3 Threaded Insert Top Mount Opening | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Female | Gold | Green | Solder Eyelet(s) | Dual | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 8 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Cantilever | Board Edge Straddle Mount | Copper Alloy | 16 | 0.25 Ám | 10 Áin | M3 Threaded Insert Top Mount Opening | Card Extender | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | Female | Gold | Green | Wire Wrap | Dual | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 8 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Cantilever | Through Hole | Copper Alloy | 16 | 0.25 Ám | 10 Áin | ||||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | 0.128 " | 3.25 mm | Female | Gold | Green | Solder | Dual | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 8 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Cantilever | Board Edge Straddle Mount | Copper Alloy | 16 | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | Card Extender | ||
 EDAC Inc. | Polyester Thermoplastic | 0.116 " | 2.95 mm | Female | Gold | Green | Wire Wrap | Single | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 16 | Non Specified - Single Edge | 3.96 mm | 0.156 in | Cantilever | Through Hole | Copper Alloy | 16 | 0.25 Ám | 10 Áin | 1 | 1 | Floating Bobbin Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 2 | 0.128 " | 3.25 mm | Female | Gold | Green | Solder | Dual | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 8 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Cantilever | Board Edge Straddle Mount | Copper Alloy | 16 | 0.25 Ám | 10 Áin | Card Extender |
