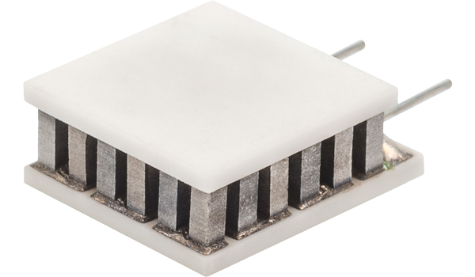

Thermoelectric Peltier Modules OptoTEC HOT Series, Thermoelectric Cooler, 1.5W cooling power, Non-Metallized Hot and Cold surface, RTV perimeter seal
Thermoelectric Peltier Modules OptoTEC HOT Series, Thermoelectric Cooler, 1.5W cooling power, Non-Metallized Hot and Cold surface, RTV perimeter seal
Thermoelectric Peltier Modules OptoTEC HOT Series, Thermoelectric Cooler, 1.5W cooling power, Non-Metallized Hot and Cold surface, RTV perimeter seal
| Part | Delta Tmax @ Th | Operating Temperature | Size / Dimension [y] | Size / Dimension [x] | Qmax @ Th | Type | Voltage - Max [Max] | Height [z] | Current - Max [Max] | Features | Resistance | Number of Stages | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tark Thermal Solutions | 67 °C | 175 °C | 13.16 mm | 13.16 mm | 8.9 W | TEC (Thermoelectric Cooler) | 7.4 V | 2.18 mm | 2 A | Lead Wires Non-Sealed | 3.39 Ohms | 1 | |
Tark Thermal Solutions | 67 °C | 175 °C | 13.16 mm | 13.16 mm | 8.9 W | TEC (Thermoelectric Cooler) | 7.4 V | 2.18 mm | 2 A | Lead Wires Sealed - Silicone RTV | 3.39 Ohms | 1 | |
 Tark Thermal Solutions | 64 °C | 175 °C | 6 mm | 7.2 mm | 1.5 W | TEC (Thermoelectric Cooler) | 2.1 V | 1.2 A | Lead Wires Sealed - Silicone RTV | 1.57 Ohms | 1 | 2.69 mm | |
 Tark Thermal Solutions | 67 °C | 175 °C | 6 mm | 12.2 mm | 4.5 W | TEC (Thermoelectric Cooler) | 4 V | 1.88 mm | 1.9 A | Lead Wires Non-Sealed | 1.92 Ohms | 1 |
