C0952 Series
Manufacturer: Prysmian Group
Beta
⌘K

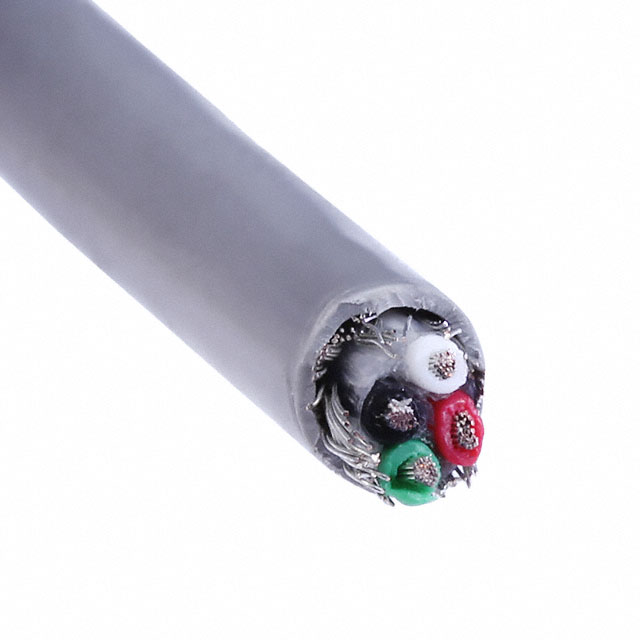

CABLE 4COND 24AWG GRAY SHLD 100'
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Usage | Length [x] | Length [x] | Wire Gauge | Conductor Material | Shield Type | Cable Type | Jacket Color | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Voltage | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 80 °C | -20 ░C | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Computer | 100 ft | 30.5 m | 24 AWG | Copper Annealed Tinned | Braid Foil | Multi-Conductor | Gray | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 4 | 0.197 in | 5 mm | 0.813 mm | 0.032 in | ASTM B-33 | 300 VDC | ||
Prysmian Group | 80 °C | -20 ░C | 304.8 m | 1000 ft | Computer | 100 ft | 30.5 m | 24 AWG | Copper Annealed Tinned | Braid Foil | Multi-Conductor | Gray | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 4 | 0.197 in | 5 mm | 0.813 mm | 0.032 in | ASTM B-33 | 300 VDC | Copper Flexfoil® Tinned | 65 % 100 % |
