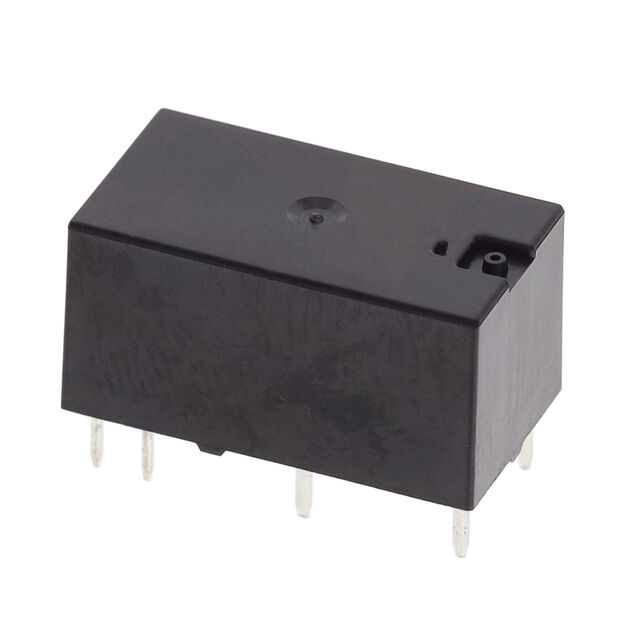

AZ888P2 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GENERAL PURPOSE SPST 8A 5V
| Part | Coil Resistance | Coil Current | Operate Time | Coil Insulation | Seal Rating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Contact Rating (Current) | Contact Material | Coil Type | Contact Form | Relay Type | Coil Voltage | Release Time | Must Release Voltage | Must Operate Voltage | Load - Max Switching | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 83 Ohms | 60.2 mA | 5 ms | Class F | Sealed - Fully | Through Hole | 85 °C | -40 C | 240 VDC 380 VAC | 8 A | Silver Tin Oxide (AgSnO) | Dual Coil Latching | SPST-NO (1 Form A) | General Purpose | 5 VDC | 3 ms | 0.5 VDC | 4 VDC | 150 W 2000 VA | PC Pin |
American Zettler | 480 Ohms | 25 mA | 5 ms | Class F | Sealed - Fully | Through Hole | 85 °C | -40 C | 240 VDC 380 VAC | 8 A | Silver Tin Oxide (AgSnO) | Dual Coil Latching | DPST-NO/NC (1 Form A 1 Form B) | General Purpose | 12 VDC | 3 ms | 1.2 VDC | 9.6 VDC | 150 W 2000 VA | PC Pin |
 American Zettler | 83 Ohms | 60.2 mA | 5 ms | Class F | Through Hole | 85 °C | -40 C | 240 VDC 380 VAC | 8 A | Silver Tin Oxide (AgSnO) | Dual Coil Latching | DPST-NO/NC (1 Form A 1 Form B) | General Purpose | 5 VDC | 3 ms | 0.5 VDC | 4 VDC | 150 W 2000 VA | PC Pin | |
American Zettler | 1.92 kOhms | 5 ms | Class F | Sealed - Fully | Through Hole | 85 °C | -40 C | 240 VDC 380 VAC | 8 A | Gold (Au) Silver Tin Oxide (AgSnO) | Dual Coil Latching | DPST-NO/NC (1 Form A 1 Form B) | General Purpose | 24 VDC | 3 ms | 2.4 VDC | 19.2 VDC | 150 W 2000 VA | PC Pin | |
American Zettler | 480 Ohms | 25 mA | 5 ms | Class F | Sealed - Fully | Through Hole | 85 °C | -40 C | 240 VDC 380 VAC | 5 A | Silver Tin Oxide (AgSnO) | Dual Coil Latching | DPST-NO (2 Form A) | General Purpose | 12 VDC | 3 ms | 1.2 VDC | 9.6 VDC | 150 W 2000 VA | PC Pin |
American Zettler | 120 Ohms | 50 mA | 5 ms | Class F | Sealed - Fully | Through Hole | 85 °C | -40 C | 240 VDC 380 VAC | 8 A | Silver Tin Oxide (AgSnO) | Dual Coil Latching | SPST-NO (1 Form A) | General Purpose | 3 ms | 0.6 VDC | 4.8 VDC | 150 W 2000 VA | PC Pin | |
American Zettler | 83 Ohms | 60.2 mA | 5 ms | Class F | Sealed - Fully | Through Hole | 85 °C | -40 C | 240 VDC 380 VAC | 8 A | Silver Tin Oxide (AgSnO) | Dual Coil Latching | DPST-NO/NC (1 Form A 1 Form B) | General Purpose | 5 VDC | 3 ms | 0.5 VDC | 4 VDC | 150 W 2000 VA | PC Pin |
