16Mb 1.65-1.95V Parallel Flash
Key Features
• * Organized as 1M x16
• * Single Voltage Read and Write Operations– 1.65-1.95V
• * Superior Reliability
•
• + Endurance: 100,000 Cycles (Typical)
• + Greater than 100 years Data Retention
•
• * Low Power Consumption (typical values at 5 MHz)
•
• + Active Current: 5 mA (typical)
• + Standby Current: 5 µA (typical)
• + Auto Low Power Mode: 5 µA (typical)
•
• * Hardware Block-Protection/WP# Input Pin
•
• + Top Block-Protection (top 32 KWord) for SST39WF1602
• + Bottom Block-Protection (bottom 32 KWord) for SST39WF1601
•
• * Flexible Erase Capabilities
•
• + Sector-Erase Capability– Uniform 2 KWord sectors
• + Block-Erase Capability– Uniform 32 KWord blocks
• + Chip-Erase Capability
• + Erase-Suspend/Erase-Resume Capabilities
•
• * Fast Program and Erase Times
•
• + Block-Erase Time: 36 ms (typical)
• + Word-Program Time: 28 µs (typical)
• + Chip-Erase Time: 140 ms (typical)
• + Sector-Erase Time: 36 ms (typical)
•
• * Other Features
•
• + Hardware Reset Pin (RST#)
• + Latched Address and Data
• + Fast Read Access Time – 70 ns
• + Security-ID Feature

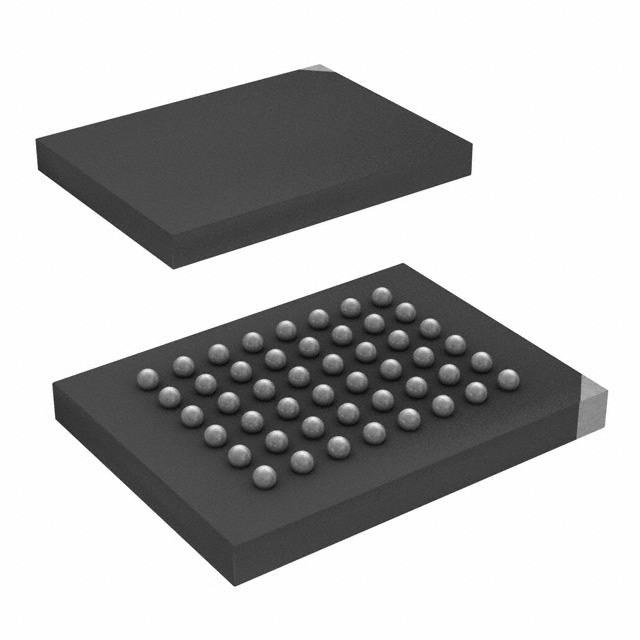

• + Packages Available – 48-ball TFBGA (6mm x 8mm), 48-ball WFBGA (5mm x 6mm), 48-ball WFBGA (4mm x 6mm)
Description
AI
The SST39WF1601 is a 1M x16 CMOS Multi-Purpose Flash Plus (MPF+) device manufactured with proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and faster erase times compared with alternate approaches. These devices conform to JEDEC standard pin assignments for x16 memories.
