E3042S Series

Catalog

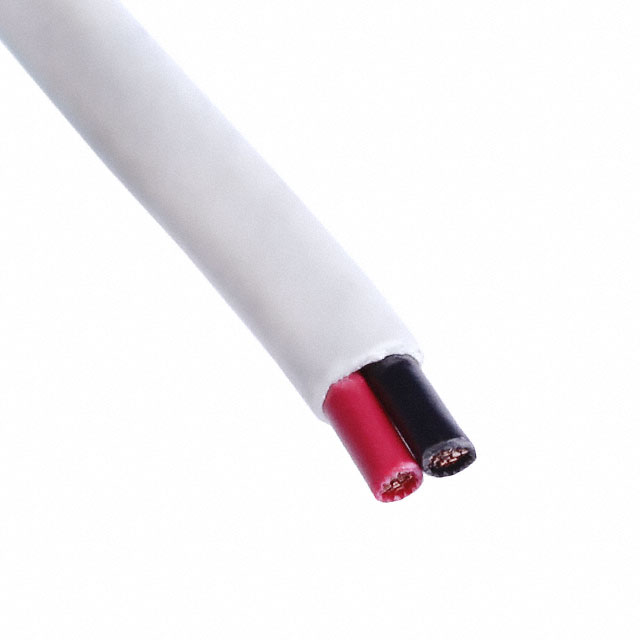

CABLE 2COND 16AWG WHITE

Part	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Wire Gauge	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Conductor Material	Cable Type	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [diameter]	Jacket Color	Number of Conductors	Operating Temperature [Max]	Voltage	Usage	Jacket (Insulation) Material	Length [x]	Length [x]
Prysmian Group E3042S.30.02	304.8 m	1000 ft	0.174 in	4.42 mm	ASTM B-3	16 AWG	0.381 mm	0.015 in	Copper Annealed Bare	Multi-Conductor	Poly-Vinyl Chloride (PVC)	19	0.0117 in	White	2	75 ░C	300 VDC	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)
Prysmian Group E3042S.30.01	304.8 m	1000 ft	0.174 in	4.42 mm	ASTM B-3	16 AWG	0.381 mm	0.015 in	Copper Annealed Bare	Multi-Conductor	Poly-Vinyl Chloride (PVC)	19	0.0117 in	Black	2	75 ░C	300 VDC	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)
Prysmian Group E3042S.30.13	304.8 m	1000 ft	0.174 in	4.42 mm	ASTM B-3	16 AWG	0.381 mm	0.015 in	Copper Annealed Bare	Multi-Conductor	Poly-Vinyl Chloride (PVC)	19	0.0117 in	Pink	2	75 ░C	300 VDC	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)
Prysmian Group E3042S.30.10	304.8 m	1000 ft	0.174 in	4.42 mm	ASTM B-3	16 AWG	0.381 mm	0.015 in	Copper Bare	Multi-Conductor	Poly-Vinyl Chloride (PVC)	19	0.0117 in	Gray	2	75 ░C	300 VDC	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)
Prysmian Group E3042S.41.86	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	0.174 in	4.42 mm	ASTM B-3	16 AWG	0.381 mm	0.015 in	Copper Annealed Bare	Multi-Conductor	Poly-Vinyl Chloride (PVC)	19	0.0117 in	Natural	2	75 ░C	300 VDC	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)	100 ft	30.5 m
Prysmian Group E3042S.41.02	304.8 m	1000 ft	0.174 in	4.42 mm	ASTM B-3	16 AWG	0.381 mm	0.015 in	Copper Annealed Bare	Multi-Conductor	Poly-Vinyl Chloride (PVC)	19	0.0117 in	White	2	75 ░C	300 VDC	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)
Prysmian Group E3042S.30.86	304.8 m	1000 ft	0.174 in	4.42 mm	ASTM B-3	16 AWG	0.381 mm	0.015 in	Copper Annealed Bare	Multi-Conductor	Poly-Vinyl Chloride (PVC)	19	0.0117 in	Natural	2	75 ░C	300 VDC	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)
Prysmian Group E3042S.41.08	304.8 m	1000 ft	0.174 in	4.42 mm	ASTM B-3	16 AWG	0.381 mm	0.015 in	Copper Bare	Multi-Conductor	Poly-Vinyl Chloride (PVC)	19	0.0117 in	Brown	2	75 ░C	300 VDC	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)
Prysmian Group E3042S.30.01	304.8 m	1000 ft	0.174 in	4.42 mm	ASTM B-3	16 AWG	0.381 mm	0.015 in	Copper Annealed Bare	Multi-Conductor	Poly-Vinyl Chloride (PVC)	19	0.0117 in	Black	2	75 ░C	300 VDC	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)
Prysmian Group E3042S.41.02	304.8 m	1000 ft	0.174 in	4.42 mm	ASTM B-3	16 AWG	0.381 mm	0.015 in	Copper Annealed Bare	Multi-Conductor	Poly-Vinyl Chloride (PVC)	19	0.0117 in	White	2	75 ░C	300 VDC	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)
