TMCS1126 Series

80ARMS 500kHz Hall-effect current sensor with AFR, reference and ALERT

Catalog

80ARMS 500kHz Hall-effect current sensor with AFR, reference and ALERT

Part	Package / Case	Output	Frequency [Max]	Frequency [Min]	Current - Sensing [Max]	Current - Sensing [Min]	Number of Channels	Sensitivity	For Measuring	Mounting Type	Supplier Device Package	Sensor Type	Polarization	Linearity	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Sensing

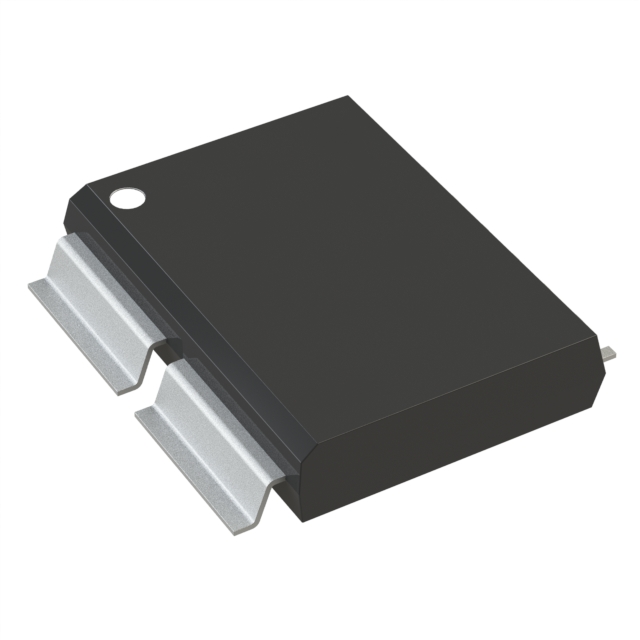

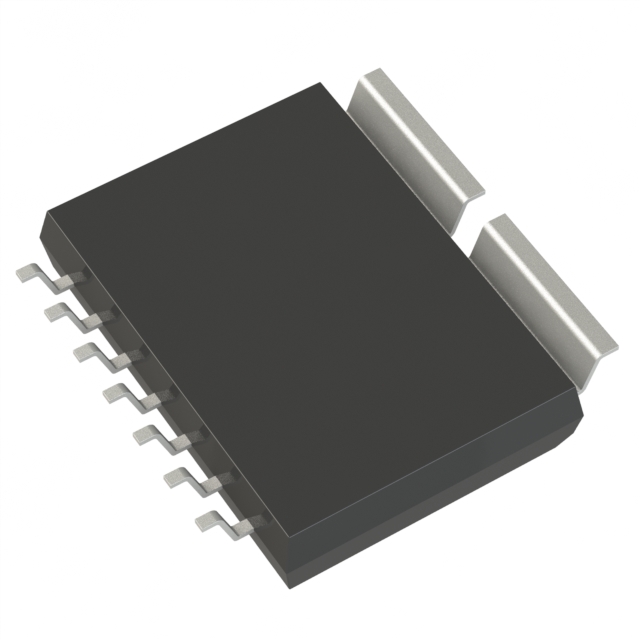

Texas Instruments TMCS1126B4BQDVGR	10-SOIC	Ratiometric Voltage	550 kHz	DC	32.5 A	-15.5 A	1	100 mV/g	AC/DC	Surface Mount	10-SOIC	Hall Effect	Bidirectional	0.2 %	80 A	125 °C	-40 °C	250 ns	5.5 V	3 V
Texas Instruments TMCS1126BABQDVGR	10-SOIC	Ratiometric Voltage	550 kHz	DC			1	66 mV/A	AC/DC	Surface Mount	10-SOIC	Hall Effect	Bidirectional	0.2 %	80 A	125 °C	-40 °C	250 ns	5.5 V	3 V
Texas Instruments TMCS1126C1AQDVGR	10-SOIC	Ratiometric Voltage	550 kHz	DC	183 A	-9.2 A	1	25 mV/°	AC/DC	Surface Mount	10-SOIC	Hall Effect	Bidirectional	0.1 %	80 A	125 °C	-40 °C	250 ns	5.5 V	3 V
Texas Instruments TMCS1126A8AQDVGR	10-SOIC	Ratiometric Voltage	550 kHz	DC			1	40 mV/mT	AC/DC	Surface Mount	10-SOIC	Hall Effect	Bidirectional	0.1 %	80 A	125 °C	-40 °C	250 ns	5.5 V	3 V	60 A
Texas Instruments TMCS1126A2AQDVGR	10-SOIC	Ratiometric Voltage	550 kHz	DC			1	50 mV/A	AC/DC	Surface Mount	10-SOIC	Hall Effect	Bidirectional	0.1 %	80 A	125 °C	-40 °C	250 ns	5.5 V	3 V	48 A
Texas Instruments TMCS1126C2AQDVGR	10-SOIC	Ratiometric Voltage	550 kHz	DC	91.4 A	-4.6 A	1	50 mV/A	AC/DC	Surface Mount	10-SOIC	Hall Effect	Bidirectional	0.1 %	80 A	125 °C	-40 °C	250 ns	5.5 V	3 V
Texas Instruments TMCS1126C5BQDVGR	10-SOIC	Ratiometric Voltage	550 kHz	DC	30.5 A	-1.5 A	1	150 mV/A	AC/DC	Surface Mount	10-SOIC	Hall Effect	Bidirectional	0.2 %	80 A	125 °C	-40 °C	250 ns	5.5 V	3 V
Texas Instruments TMCS1126A4BQDVGR	10-SOIC	Ratiometric Voltage	550 kHz	DC			1	100 mV/g	AC/DC	Surface Mount	10-SOIC	Hall Effect	Bidirectional	0.2 %	80 A	125 °C	-40 °C	250 ns	5.5 V	3 V	24 A
Texas Instruments TMCS1126B3BQDVGR	10-SOIC	Ratiometric Voltage	550 kHz	DC	43.3 A	-20.7 A	1	75 mV/A	AC/DC	Surface Mount	10-SOIC	Hall Effect	Bidirectional	0.2 %	80 A	125 °C	-40 °C	250 ns	5.5 V	3 V
Texas Instruments TMCS1126B1BQDVGR	10-SOIC	Ratiometric Voltage	550 kHz	DC	130 A	-62 A	1	25 mV/°	AC/DC	Surface Mount	10-SOIC	Hall Effect	Bidirectional	0.2 %	80 A	125 °C	-40 °C	250 ns	5.5 V	3 V

Catalog

80ARMS 500kHz Hall-effect current sensor with AFR, reference and ALERT

Key Features

• High continuous current capability: 80ARMSRobust reinforced isolationHigh accuracySensitivity error: ±0.1%Sensitivity thermal drift: ±20ppm/°CSensitivity lifetime drift: ±0.2%Offset error: ±0.2mVOffset thermal drift: ±2µV/°COffset lifetime drift: ±0.2mVNon-linearity: ±0.1%High immunity to external magnetic fieldsPrecision zero-current reference outputFast ResponseSignal bandwidth: 500kHzResponse time: 250nsPropagation delay: 60nsOvercurrent detection response: 100nsOperating supply range: 3V to 5.5VBidirectional and unidirectional current sensingMultiple sensitivity options:Ranging from 15mV/A to 150mV/ASafety related certifications (planned)UL 1577 Component Recognition ProgramIEC/CB 62368-1High continuous current capability: 80ARMSRobust reinforced isolationHigh accuracySensitivity error: ±0.1%Sensitivity thermal drift: ±20ppm/°CSensitivity lifetime drift: ±0.2%Offset error: ±0.2mVOffset thermal drift: ±2µV/°COffset lifetime drift: ±0.2mVNon-linearity: ±0.1%High immunity to external magnetic fieldsPrecision zero-current reference outputFast ResponseSignal bandwidth: 500kHzResponse time: 250nsPropagation delay: 60nsOvercurrent detection response: 100nsOperating supply range: 3V to 5.5VBidirectional and unidirectional current sensingMultiple sensitivity options:Ranging from 15mV/A to 150mV/ASafety related certifications (planned)UL 1577 Component Recognition ProgramIEC/CB 62368-1

Description

The TMCS1126 is a galvanically isolated Hall-effect current sensor with industry leading isolation and accuracy. An output voltage proportional to the input current is provided with excellent linearity and low drift at all sensitivity options. Precision signal conditioning circuitry with built-in drift compensation is capable of less than 1.4% maximum sensitivity error over temperature and lifetime with no system level calibration, or less than 1% maximum sensitivity error including both lifetime and temperature drift with a one-time calibration at room temperature. AC or DC input current flows through an internal conductor generating a magnetic field measured by integrated, on-chip, Hall-effect sensors. Core-less construction eliminates the need for magnetic concentrators. Differential Hall sensors reject interference from stray external magnetic fields. Low conductor resistance increases measurable current ranges up to ±103A while minimizing power loss and easing thermal dissipation requirements. Insulation capable of withstanding 5kVRMS, coupled with a minimum of 8mm creepage and clearance, provides high levels of reliable lifetime reinforced working voltage. Integrated shielding enables excellent common-mode rejection and transient immunity. Fixed sensitivity allows the device to operate from a single 3V to 5.5V power supply, eliminating ratiometry errors and improving supply noise rejection. TI provides the TMCS1126xxB as a lower-cost option. The TMCS1126 is a galvanically isolated Hall-effect current sensor with industry leading isolation and accuracy. An output voltage proportional to the input current is provided with excellent linearity and low drift at all sensitivity options. Precision signal conditioning circuitry with built-in drift compensation is capable of less than 1.4% maximum sensitivity error over temperature and lifetime with no system level calibration, or less than 1% maximum sensitivity error including both lifetime and temperature drift with a one-time calibration at room temperature. AC or DC input current flows through an internal conductor generating a magnetic field measured by integrated, on-chip, Hall-effect sensors. Core-less construction eliminates the need for magnetic concentrators. Differential Hall sensors reject interference from stray external magnetic fields. Low conductor resistance increases measurable current ranges up to ±103A while minimizing power loss and easing thermal dissipation requirements. Insulation capable of withstanding 5kVRMS, coupled with a minimum of 8mm creepage and clearance, provides high levels of reliable lifetime reinforced working voltage. Integrated shielding enables excellent common-mode rejection and transient immunity. Fixed sensitivity allows the device to operate from a single 3V to 5.5V power supply, eliminating ratiometry errors and improving supply noise rejection. TI provides the TMCS1126xxB as a lower-cost option.
