AM1DU Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 12V 996MW

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Efficiency	Package / Case	Power (Watts)	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Applications	Mounting Type	Number of Outputs	Voltage - Isolation
aimtec AM1DU-2412SH30Z	36 V	18 V	90 °C	-40 °C	Isolated Module	80 %	7-SIP Module 4 Leads	996 mW	12 V	7.2 mm	10 mm	19.5 mm	0.39 "	0.28 in	0.77 in	83 mA	ITE (Commercial)	Through Hole	1	3000 V

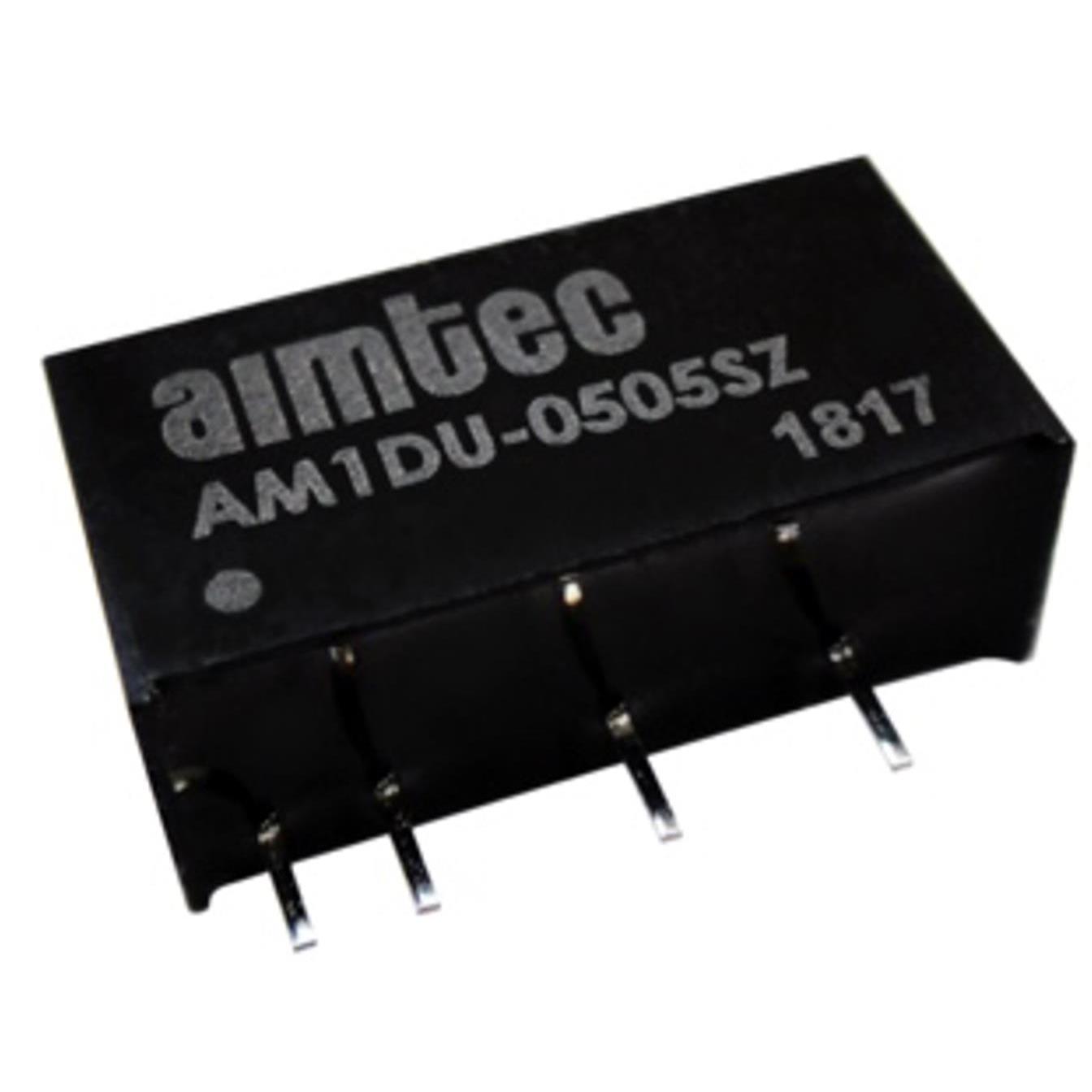

aimtec AM1DU-0512SZ	9 V	4.5 V	90 °C	-40 °C	Isolated Module	79 %	7-SIP Module 4 Leads	996 mW	12 V	7.2 mm	10 mm	19.5 mm	0.39 "	0.28 in	0.77 in	83 mA	ITE (Commercial)	Through Hole	1	1.5 kV
aimtec AM1DU-0505SH30Z	9 V	4.5 V	90 °C	-40 °C	Isolated Module	76 %	7-SIP Module 4 Leads		5 V	7.2 mm	10 mm	19.5 mm	0.39 "	0.28 in	0.77 in	200 mA	ITE (Commercial)	Through Hole	1	3000 V
