5952 Series

Catalog

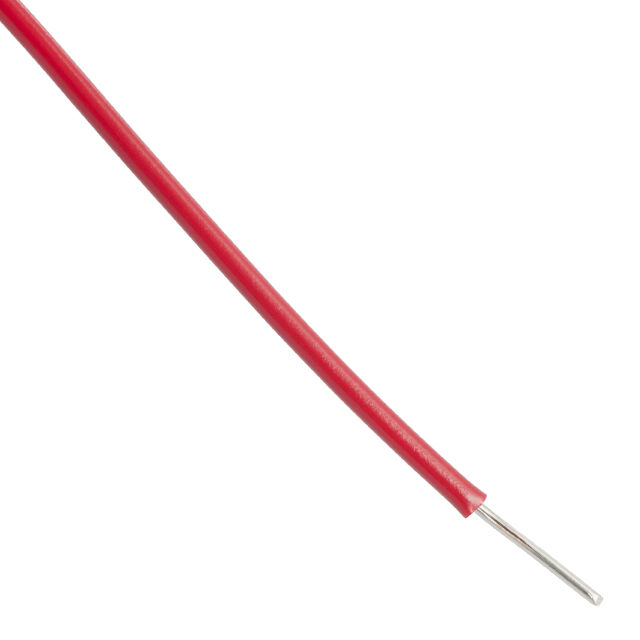

HOOK-UP SOLID 28AWG RED 1000'

Part	Conductor Strand	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Ratings	Length [x]	Length [x]	Length	Length	Jacket (Insulation) Material
ALPHA WIRE 5952 RD001	Solid	Red	0.024 in	0.61 mm	28 AWG	125 °C	-40 °C	Copper Silver Coated	0.006 in	0.15 mm	Hook-Up	UL Style 1422	50 ft 100 ft 500 '	30.5 m 152.4 m	15.24 m 304.8 m	1000 ft	Polyvinylidene Fluoride (PVDF)
ALPHA WIRE 5952 WH001	Solid		0.024 in	0.61 mm	28 AWG	125 °C	-40 °C	Copper Silver Coated	0.006 in	0.15 mm	Hook-Up	UL Style 1422			304.8 m	1000 ft	Polyvinylidene Fluoride (PVDF)
ALPHA WIRE 5952 BR001	Solid	Brown	0.024 in	0.61 mm	28 AWG	125 °C	-40 °C	Copper Silver Coated	0.006 in	0.15 mm	Hook-Up	UL Style 1422			304.8 m	1000 ft	Polyvinylidene Fluoride (PVDF)
ALPHA WIRE 5952 GR001	Solid	Green	0.024 in	0.61 mm	28 AWG	125 °C	-40 °C	Copper Silver Coated	0.006 in	0.15 mm	Hook-Up	UL Style 1422	50 ft 500 '	152.4 m	15.24 m 304.8 m	1000 ft	Polyvinylidene Fluoride (PVDF)
ALPHA WIRE 5952 BK001	Solid	Black	0.024 in	0.61 mm	28 AWG	125 °C	-40 °C	Copper Silver Coated	0.006 in	0.15 mm	Hook-Up	UL Style 1422	50 ft 100 ft 500 '	30.5 m 152.4 m	15.24 m 304.8 m	1000 ft	Polyvinylidene Fluoride (PVDF)
ALPHA WIRE 5952 BL001	Solid	Blue	0.024 in	0.61 mm	28 AWG	125 °C	-40 °C	Copper Silver Coated	0.006 in	0.15 mm	Hook-Up	UL Style 1422			304.8 m	1000 ft	Polyvinylidene Fluoride (PVDF)
ALPHA WIRE 5952 VI001	Solid	Violet	0.024 in	0.61 mm	28 AWG	125 °C	-40 °C	Copper Silver Coated	0.006 in	0.15 mm	Hook-Up	UL Style 1422			304.8 m	1000 ft	Polyvinylidene Fluoride (PVDF)
