MCG50P03 Series

Catalog

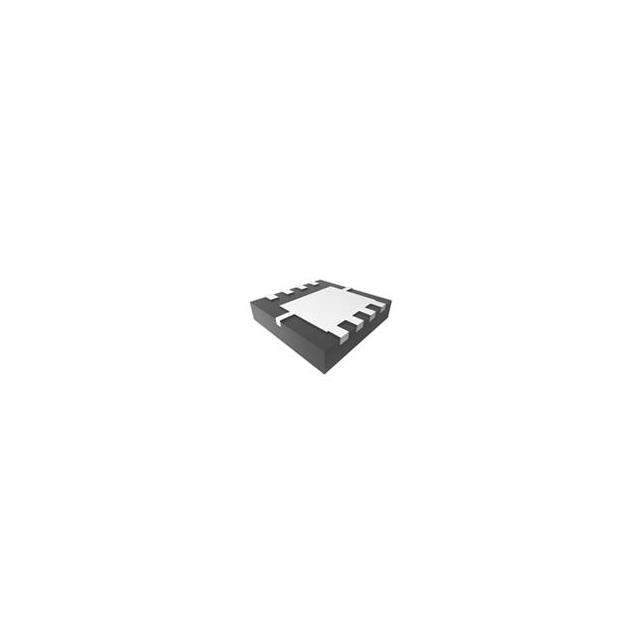

P-CHANNEL MOSFET,DFN3333

Part	Technology	Supplier Device Package	Package / Case	Power Dissipation (Max) [Max]	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]	FET Type	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)
Micro Commercial Components MCG50P03-TP	MOSFET (Metal Oxide)	DFN3333	8-VDFN Exposed Pad	83 W	6.2 mOhm	6464 pF	P-Channel	-55 °C	150 °C	30 V	50 A	2.8 V	Surface Mount	111.7 nC	4.5 V 10 V	25 V
