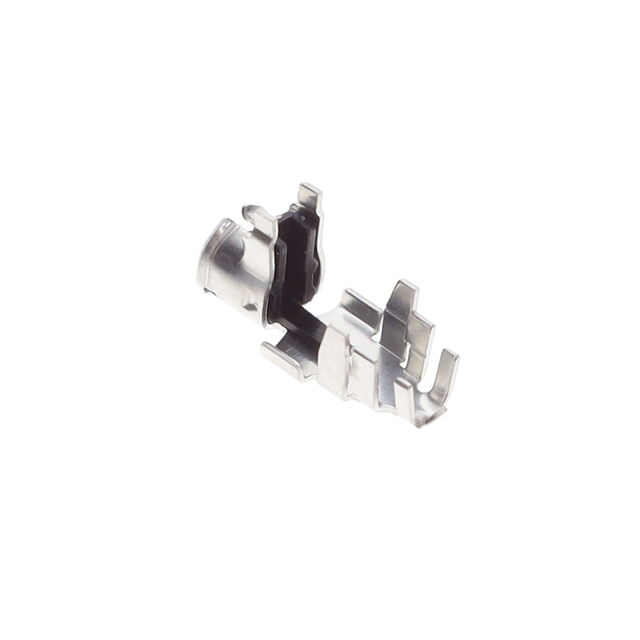

E.FL-LP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONNECTOR
| Part | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Body Finish | Body Material | Dielectric Material | Shield Termination | Center Contact Material | Fastening Type | Connector Type | Number of Ports | Frequency - Max [Max] | Connector Style | Housing Color | Contact Termination | Mounting Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | ||||||||||||||||||
 Hirose Electric Co Ltd | 30 | 90 °C | -40 C | Gold | Silver | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Solder | Phosphor Bronze | Snap-On | Female Socket Plug | 1 | 6000 MHz | E.FL | Silver | Solder | Free Hanging (In-Line) Right Angle | 50 Ohms |
Hirose Electric Co Ltd | ||||||||||||||||||
Hirose Electric Co Ltd | 30 | 90 °C | -40 C | Gold | Silver | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Solder | Phosphor Bronze | Snap-On | Female Socket Plug | 1 | 6000 MHz | E.FL | Silver | Solder | Free Hanging (In-Line) Right Angle | 50 Ohms |
