PMN30 Series

Catalog

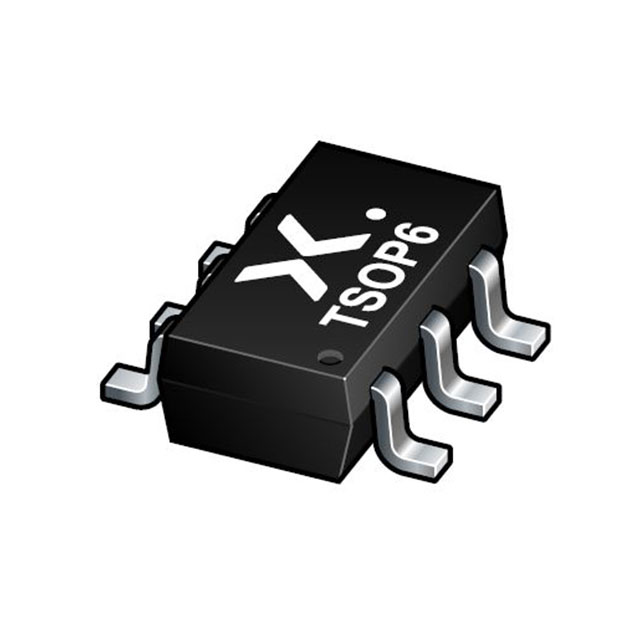

MOSFET N-CH 20V 4.8A 6TSOP

Part	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Drain to Source Voltage (Vdss)	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Grade	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Qualification
Freescale Semiconductor - NXP PMN30UNEX	558 pF	4.46 W 530 mW	36 mOhm	900 mV	8 V	9 nC	SC-74 SOT-457	MOSFET (Metal Oxide)	-55 °C	150 °C	6-TSOP	20 V	N-Channel	1.5 V 4.5 V	Surface Mount	4.8 A
Freescale Semiconductor - NXP PMN30XPEX		6.25 W 560 mW	34 mOhm	1.25 V	12 V	17 nC	SC-74 SOT-457	MOSFET (Metal Oxide)	-55 °C	150 °C	6-TSOP	20 V	P-Channel	2.5 V 4.5 V	Surface Mount	5.3 A	1465 pF
Freescale Semiconductor - NXP PMN30XPAX	1039 pF	7.5 W 660 mW	33 mOhm	1.3 V	12 V		SC-74 SOT-457	MOSFET (Metal Oxide)	-55 °C	175 ░C	6-TSOP	20 V	P-Channel		Surface Mount	5.2 A		16 nC	Automotive	2.5 V	8 V	AEC-Q101
