MCP2515 Series

Stand-Alone CAN Controller with SPI Interface

Catalog

Stand-Alone CAN Controller with SPI Interface

Part	Type	Utilized IC / Part	Primary Attributes	Supplied Contents	Function	Contents	Protocol	Interface	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [y]	Package / Case [y]	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Standards	Supplier Device Package	Grade	Qualification	Package / Case [x]

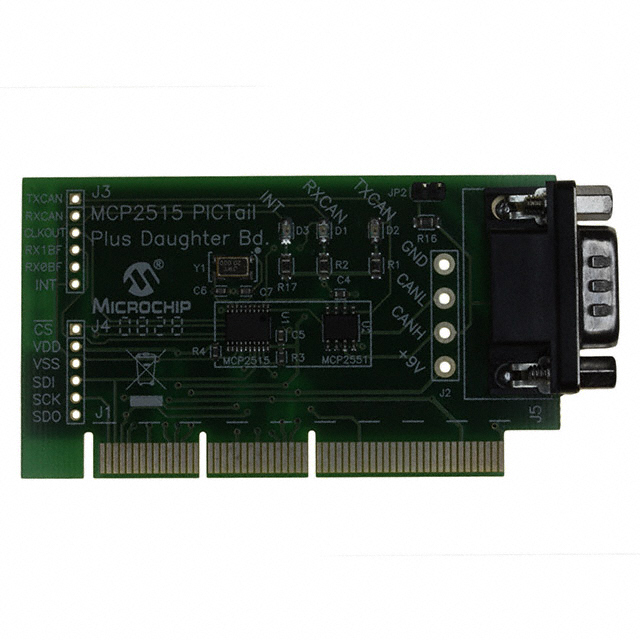

Microchip Technology MCP2515DM-PTPLS	Interface	MCP2515 MCP2551	CAN Controller and CAN Transceiver in a PICtail Plus Daughter Board	Board(s)	CANbus Controller	Board(s)
Microchip Technology MCP2515-E/SO					Controller		CANbus	SPI	10 mA	125 °C	-40 °C	0.295 in	7.5 mm	18-SOIC	2.7 V	5.5 V	CAN 2.0	18-SOIC
Microchip Technology MCP2515-I/SOVAO					Controller		CANbus	SPI	10 mA	85 °C	-40 °C	0.295 in	7.5 mm	18-SOIC	2.7 V	5.5 V	CAN 2.0	18-SOIC	Automotive	AEC-Q100
Microchip Technology MCP2515T-E/MLVAO					Controller		CANbus	SPI	10 mA	125 °C	-40 °C			20-VFQFN Exposed Pad	2.7 V	5.5 V	CAN 2.0	20-QFN (4x4)	Automotive	AEC-Q100
Microchip Technology MCP2515-I/STVAO					Controller		CANbus	SPI	10 mA	85 °C	-40 °C	4.4 mm		20-TSSOP	2.7 V	5.5 V	CAN 2.0	20-TSSOP	Automotive	AEC-Q100	0.173 in
Microchip Technology MCP2515T-E/ST					Controller		CANbus	SPI	10 mA	125 °C	-40 °C	4.4 mm		20-TSSOP	2.7 V	5.5 V	CAN 2.0	20-TSSOP			0.173 in
Microchip Technology MCP2515T-E/ML					Controller		CANbus	SPI	10 mA	125 °C	-40 °C			20-VFQFN Exposed Pad	2.7 V	5.5 V	CAN 2.0	20-QFN (4x4)
Microchip Technology MCP2515-E/MLVAO					Controller		CANbus	SPI	10 mA	125 °C	-40 °C			20-VFQFN Exposed Pad	2.7 V	5.5 V	CAN 2.0	20-QFN (4x4)	Automotive	AEC-Q100
Microchip Technology MCP2515-E/ML					Controller		CANbus	SPI	10 mA	125 °C	-40 °C			20-VFQFN Exposed Pad	2.7 V	5.5 V	CAN 2.0	20-QFN (4x4)
Microchip Technology MCP2515T-I/SOVAO					Controller		CANbus	SPI	10 mA	85 °C	-40 °C	0.295 in	7.5 mm	18-SOIC	2.7 V	5.5 V	CAN 2.0	18-SOIC	Automotive	AEC-Q100

Catalog

Stand-Alone CAN Controller with SPI Interface

Key Features

• * 18-pin package

• * Simple SPI interface to any MCU

• * One-shot mode ensures message transmission is attempted only once

• * Databyte filtering

• * Start-of-Frame (SOF) output

• * Low-power CMOS Technology

Description

The MCP2515 is a second generation stand-alone CAN controller. It is pin and function compatible with the MCP2510 and also includes upgraded features like faster throughput, databyte filtering, and support for time-triggered protocols. Please see our MikroElektronika click Board! <https://www.mikroe.com/can-spi-5v-click>
