PIC32CX5109BZ31032 Series

ARM® Cortex® M4F Multi-Protocol MCU SoC With AEC-Q100 Grade 1 Qualification, Advanced Security and Robust Analog

Catalog

ARM® Cortex® M4F Multi-Protocol MCU SoC With AEC-Q100 Grade 1 Qualification, Advanced Security and Robust Analog

Part	Memory Size	RF Family/Standard	Package / Case	GPIO	Data Rate (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Serial Interfaces	Power - Output	Current - Transmitting [Min]	Current - Transmitting [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Type	Current - Receiving [Max]	Current - Receiving [Min]	Modulation	Supplier Device Package	Sensitivity

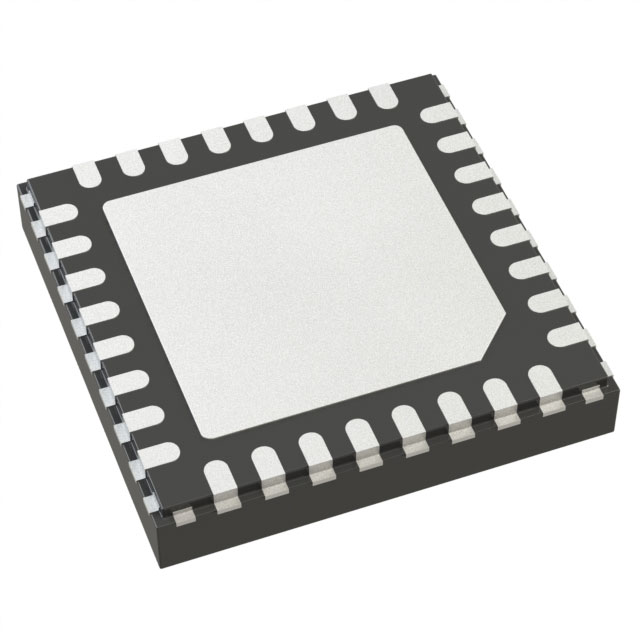

Microchip Technology PIC32CX5109BZ31032T-V/RTB
Microchip Technology PIC32CX5109BZ31032-V/RTB	64 kB 96 kB 512 kB	802.15.4 Bluetooth	32-VFQFN Exposed Pad	32	2 Mbps	-40 °C	105 ░C	GPIO HCI I2C IrDA PWM SPI UART USART	11 dBm	21.5 mA	50 mA	3.6 V	1.9 V	Surface Mount Wettable Flank	TxRx + MCU	20 mA	14.5 mA	DSSS	32-VQFN (5x5)	-108 dBm

Catalog

ARM® Cortex® M4F Multi-Protocol MCU SoC With AEC-Q100 Grade 1 Qualification, Advanced Security and Robust Analog

Key Features

• MCU:* 64 MHz Arm Cortex M4F processor

• * 512 kB Flash with error correction code (ECC)

• * 96 kB multi-port programmable quality of service (QoS) SRAM

• * Up to 32 kB of SRAM retention in backup

• * 64 kB of ROM for secure boot

• * 32-channel event system

• * 16-channel direct memory access controller (DMAC)

• * Internal and external clock options

•

• Peripherals:* Serial communication: USART, I2C, SPI, RS485, LIN

• * Quad SPI with execute in place (XIP) support

• * 12-bit, 2 Msps analog-to-digital converters (ADC)

• * Up to four capacitive voltage divider (CVD) channels for touch

• * 7-bit general purpose digital-to-analog converter (DAC)

• * Up to 14 GPIOs

• * Eight 16-bit timers/counters (TC)

• * 24-bit and 16-bit timers/counters for control (TCC)

•

• Security:* Secure boot with immutable root-of-trust

• * High-performance cryptographic accelerator

• * 128-bit, 192-bit, and 256-bit AES

• * Secure hash algorithm (SHA1, SHA224, SHA256)

• * Public key algorithms (ECC, ECDSA)

• * True random number generator (TRNG)

•

• Radio:* Bluetooth LE 5.2 certified

• * 2M uncoded PHY

• * Long-range coded PHY

• * Multi-link and multi-role support

• * Zigbee 3.0 certified

• * Hardware radio arbiter for Bluetooth and 802.15.4 coexistence

• * Secure over-the-air (OTA) update

• * Transmit output power up to +11 dBm

• * Receiver power sensitivity down to −108 dBm

Description
