HNC1 Series

Catalog

CONN HEADER VERT 12POS 2.5MM

Part	Mated Stacking Heights	Style	Overall Contact Length	Overall Contact Length	Contact Type	Shrouding	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Fastening Type	Number of Positions	Contact Shape	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Material	Connector Type	Insulation Height	Insulation Height	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish - Post	Note	Contact Termination	Pitch	Pitch	Color
Hirose Electric Co Ltd HNC1-2.5P-12DS(55)	15.5 mm	Board to Board Cable	0.433 in	11 mm	Male Pin	Unshrouded	Solder	-55 C	85 °C	All	Through Hole	UL94 V-0	39.4 µin	1 µm	Black	0.197 in	5 mm	0.118 in	3 mm	Brass	Push-Pull	12	Square	1	2.5 mm	0.098 in	Nylon Polyamide (PA)	Header	0.256 in	6.5 mm	250 V

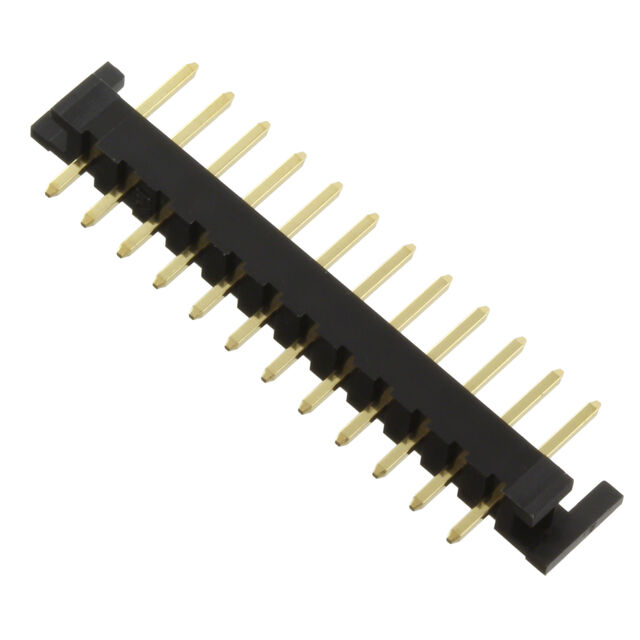

Hirose Electric Co Ltd HNC1-2.5P-12DS(02)	15.5 mm	Board to Board Cable	0.433 in	11 mm	Male Pin	Unshrouded	Solder	-55 C	85 °C	All	Through Hole	UL94 V-0			Black	0.197 in	5 mm	0.118 in	3 mm	Brass	Push-Pull	12	Square	1	2.5 mm	0.098 in	Nylon Polyamide (PA)	Header	0.256 in	6.5 mm	250 V	8 µin	0.203 µm	Gold
Hirose Electric Co Ltd HNC1-2.5P-12DSL(55)		Board to Board Cable			Male Pin	Unshrouded	Solder	-55 C	85 °C	All	Right Angle Through Hole	UL94 V-0	39.4 µin	1 µm	Black	0.197 in	5 mm	0.118 in	3 mm	Brass	Push-Pull	12	Square	1	2.5 mm	0.098 in	Nylon Polyamide (PA)	Header	0.169 "	4.3 mm	250 V				Tin

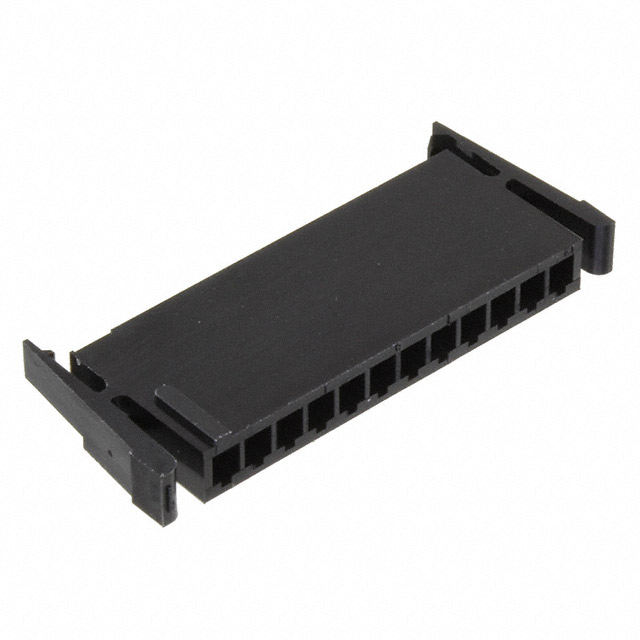

Hirose Electric Co Ltd HNC1-2.5S-12					Female Socket			-55 C	85 °C		Free Hanging (In-Line)										Latch Lock	12		1			Nylon Polyamide (PA)	Receptacle								Contacts Not Included	Crimp	2.5 mm	0.098 in	Black
