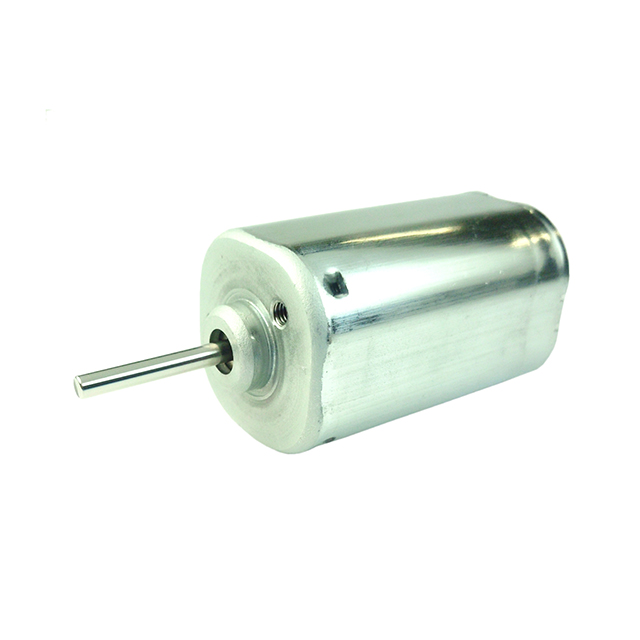

SE24P1 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STANDARD MOTOR 2508 RPM 24V
| Part | Type | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Motor Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Function | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | RPM | Voltage - Rated | Termination Style | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | DC Motor | 2.83 oz-in | 20 mNm | Brushed | 24 mm | 0.945 " | 0.945 " | Square | 24 mm | Standard | 0.098 in | 2.5 mm | 0.63 in | 16 mm | 2508 RPM | 24 VDC | Solder Tab | 20 mm | 0.787 in |
