CSD13385F5 Series

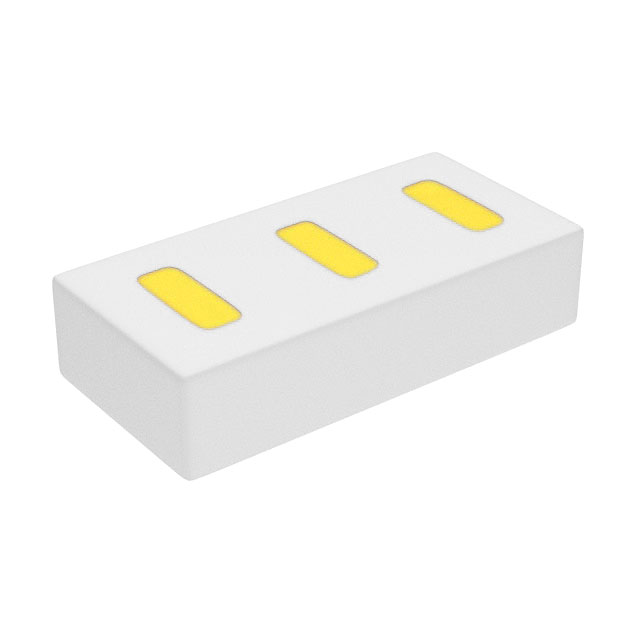

12-V, N channel NexFET™ power MOSFET, single LGA 0.8 mm x 1.5 mm, 19 mOhm, gate ESD protection

Catalog

12-V, N channel NexFET™ power MOSFET, single LGA 0.8 mm x 1.5 mm, 19 mOhm, gate ESD protection

Part	Technology	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max) [Max]	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	FET Type	Mounting Type	Vgs (Max) [Max]	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds	Package / Case
Texas Instruments CSD13385F5	MOSFET (Metal Oxide)	4.3 A	3-PICOSTAR	12 V	5 nC	-55 °C	150 °C	500 mW	19 mOhm	1.2 V	N-Channel	Surface Mount	8 V	1.8 V 4.5 V	674 pF	3-SMD No Lead

Catalog

12-V, N channel NexFET™ power MOSFET, single LGA 0.8 mm x 1.5 mm, 19 mOhm, gate ESD protection

Key Features

• Low on resistanceLow Qgand QgdUltra-small footprint1.53 mm × 0.77 mmLow profile0.36-mm heightIntegrated ESD protection diodeRated > 4-kV HBMRated > 2-kV CDMLead and halogen freeRoHS compliantLow on resistanceLow Qgand QgdUltra-small footprint1.53 mm × 0.77 mmLow profile0.36-mm heightIntegrated ESD protection diodeRated > 4-kV HBMRated > 2-kV CDMLead and halogen freeRoHS compliant

Description

This 12-V, 15-mΩ, N-Channel FemtoFET™ MOSFET technology is designed and optimized to minimize the footprint in many handheld and mobile applications. This technology is capable of replacing standard small signal MOSFETs while providing a significant reduction in footprint size. . . . . This 12-V, 15-mΩ, N-Channel FemtoFET™ MOSFET technology is designed and optimized to minimize the footprint in many handheld and mobile applications. This technology is capable of replacing standard small signal MOSFETs while providing a significant reduction in footprint size. . . . .
