BXEB-TL-L0280 Series
Manufacturer: BRIDGELUX
Beta
⌘K

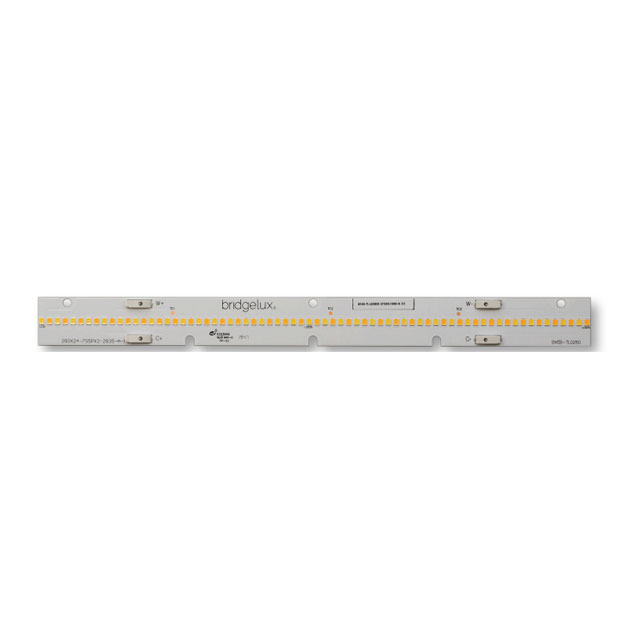

VESTA TL GEN 3 (1 SMD ROW) LED MODULE, 280 MM, 2700-5000K, 80 CRI
| Part | CRI (Color Rendering Index) | Type | Viewing Angle | Color | Height [z] | Configuration | CCT (K) | Size / Dimension [x] | Size / Dimension [y] | Temperature - Test | Current - Max [Max] | Lumens/Watt @ Current - Test | Current - Test | Lens Type | Voltage - Forward (Vf) (Typ) | Luminous Flux @ Current/Temperature | CCT (K) [Min] | CCT (K) | CCT (K) [Max] | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 80 | LED Module | 120 ° | White Cool White Warm | 5.6 mm | Linear Light Strip | 2700K 3-Step MacAdam Ellipse 5000K 3-Step MacAdam Ellipse | 280 mm | 24 mm | 25 °C | 750 mA | 165 lm/W 184 lm/W | 375 mA | Flat | 19.7 V | 1219 lm 1362 lm | ||||
 BRIDGELUX | 98 | LED Module | White Cool White Warm | 5.6 mm | Linear Light Strip | 280 mm | 24 mm | 25 °C | 750 mA | 122 lm/W 138 lm/W | Flat | 20.3 V | 740 lm 840 lm | 2700 K | 3850 K | 5000 K | 2 x 300mA |
