MIC5308 Series

Low Vin/Vout, Low Iq 150mA High PSRR ULDO

Catalog

Low Vin/Vout, Low Iq 150mA High PSRR ULDO

Part	Current - Output	Voltage Dropout (Max) [Max]	PSRR [Min]	PSRR [Max]	Control Features	Mounting Type	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Number of Regulators	Output Configuration	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Output Type	Voltage - Output (Max) [Max]	Output Type
Microchip Technology MIC5308-1.8YD6-TR	150 mA	0.15 V	70 dB	90 dB	Enable	Surface Mount	TSOT-23-6	5.5 V	1.8 V	1	Positive	SOT-23-6 Thin TSOT-23-6	125 °C	-40 °C	Over Current Over Temperature	1.81 mOhm

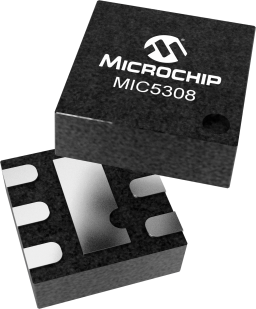

Microchip Technology MIC5308-1.5YMT-TR	150 mA	0.15 V	70 dB	90 dB	Enable	Surface Mount	6-TMLF® (1.6x1.6)	5.5 V	1.5 V	1	Positive	6-TMLF® 6-UFDFN Exposed Pad	125 °C	-40 °C	Over Current Over Temperature	1.81 mOhm

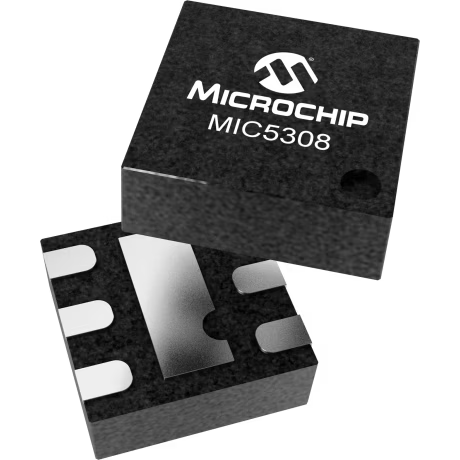

Microchip Technology MIC5308-1.2YMT-TR	150 mA	0.15 V	70 dB	90 dB	Enable	Surface Mount	6-TMLF® (1.6x1.6)	5.5 V	1.2 V	1	Positive	6-TMLF® 6-UFDFN Exposed Pad	125 °C	-40 °C	Over Current Over Temperature	1.81 mOhm
Microchip Technology MIC5308YD6-TR	150 mA	0.15 V	70 dB	90 dB	Enable	Surface Mount	TSOT-23-6	5.5 V	0.8 V	1	Positive	SOT-23-6 Thin TSOT-23-6	125 °C	-40 °C	Over Current Over Temperature		2 V	Adjustable
Microchip Technology MIC5308-1.5YD6-TR	150 mA	0.15 V	70 dB	90 dB	Enable	Surface Mount	TSOT-23-6	5.5 V	1.5 V	1	Positive	SOT-23-6 Thin TSOT-23-6	125 °C	-40 °C	Over Current Over Temperature	1.81 mOhm

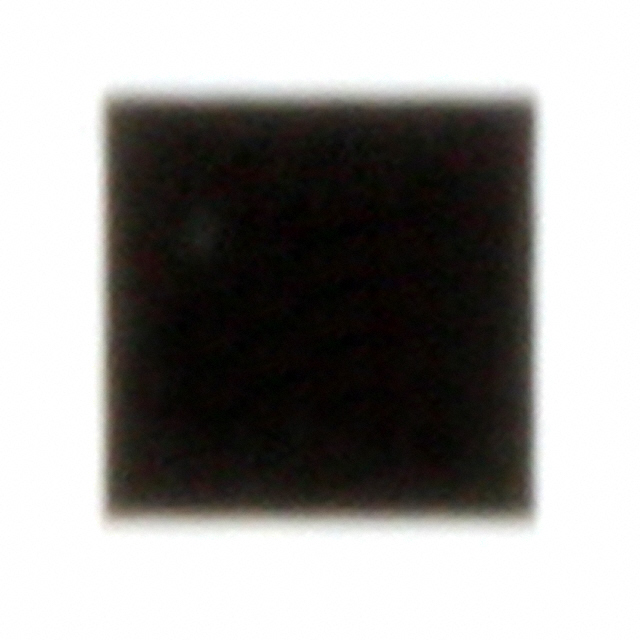

Microchip Technology MIC5308-1.8YMT-TR	150 mA	0.15 V	70 dB	90 dB	Enable	Surface Mount	6-TMLF® (1.6x1.6)	5.5 V	1.8 V	1	Positive	6-TMLF® 6-UFDFN Exposed Pad	125 °C	-40 °C	Over Current Over Temperature	1.81 mOhm

Catalog

Low Vin/Vout, Low Iq 150mA High PSRR ULDO

Key Features

• * Input voltage range: 1.6V to 5.5V

• * Guaranteed 150mA over temperature

• * Ultra-low dropout voltage: 45mV at 150mA

• * High PSRR: up to 90dB at 1kHz

• * Output voltage range: 0.8V to 2.0V

• * Very low ground current: 23µA under full load

• * Bias supply voltage range: 2.5V to 5.5V

• * Stable with 1µF ceramic output capacitor

• * 150mA maximum output current at 1.6V input voltage

• * Very fast transient response ideal for digital loads

• * Thermal shutdown and current limit protection

• * Cost effective 6-pin TSOT-23 package

Description

The MIC5308 is a high performance, µCap low dropout regulator, offering ultra-low operating current while maintaining very fast transient response. The MIC5308 can source up to 150mA of output current and can regulate down from a low input supply voltage to increase system efficiency. Ideal for battery-operated applications; the MIC5308 offers extremely low dropout voltage (45mV typically at 150mA) and low ground current at all load conditions (typically 23µA). The MIC5308 can also be put into a zero off-mode current state, drawing virtually no current when disabled.
