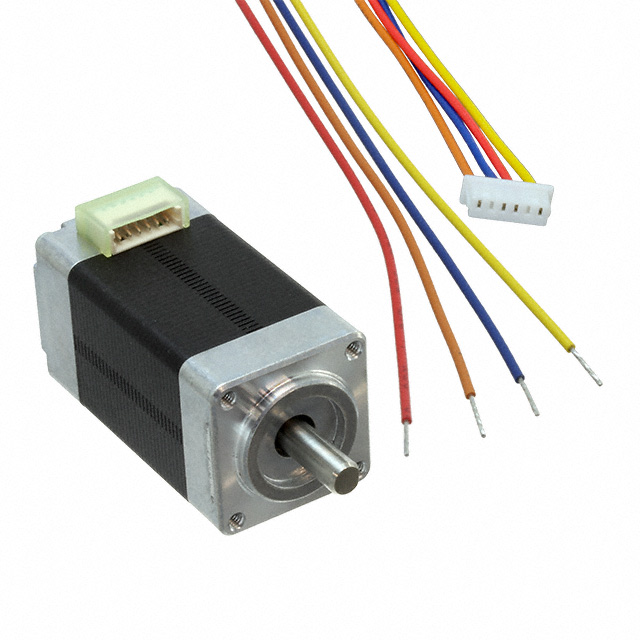

08PM Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STEPPER MOTOR HYBRID BIPOLAR 24V
| Part | Rotor Inertia | Weight | Weight | Coil Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Features | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Current Rating (Amps) | Steps per Revolution | NEMA Frame Size | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Step Angle | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Coil Resistance | Voltage - Rated | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 2.9 gcm˛ | 70.31 g | 0.155 lb | Bipolar | 0.787 in | 0.787 " | 20 mm | 20 mm | Flatted Shaft | 36 mNm | 5.1 oz-in | 600 mA | 200 | 8 | 10 mm | 0.394 " | 1.8 ° | 0.63 in | 16 mm | 6.5 Ohms | 24 VDC | 0.157 in | 4 mm | Hybrid |
