A3A-10DA Series

Catalog

CONN RCPT 10POS 0.079 GOLD SMD

Part	Contact Shape	Contact Material	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Color	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Insulation Height	Insulation Height	Mated Stacking Heights	Number of Rows [custom]	Contact Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Features	Style	Termination	Contact Finish - Mating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Voltage Rating
Hirose Electric Co Ltd A3A-10DA-2SV	Square	Phosphor Bronze	General Purpose Telecommunications	39.4 çin	1 çm	Polyphenylene Sulfide (PPS)	Brown	Tin	All	10	0.165 in	4.2 mm	5.1 mm 6 mm	2	Female Socket	UL94 V-0	0.079 "	2 mm	8 µin	0.203 µm	-55 C	85 °C	Push-Pull	Board Guide	Board to Board Cable	Solder	Gold	Receptacle	2 mm	0.079 in	Surface Mount	200 VAC

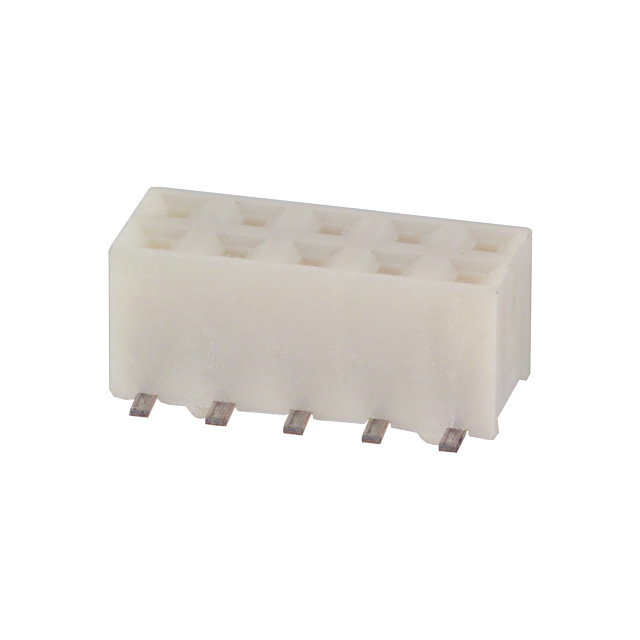

Hirose Electric Co Ltd A3A-10DA-2SV(71)	Square	Phosphor Bronze	General Purpose Telecommunications	39.4 çin	1 çm	Polyphenylene Sulfide (PPS)	Brown	Tin	All	10	0.165 in	4.2 mm	5.1 mm 6 mm	2	Female Socket	UL94 V-0	0.079 "	2 mm	8 µin	0.203 µm	-55 C	85 °C	Push-Pull	Board Guide	Board to Board Cable	Solder	Gold	Receptacle	2 mm	0.079 in	Surface Mount	200 VAC
