ADR3625 Series

Precision, Micropower, High Current Output Voltage Reference

Catalog

Precision, Micropower, High Current Output Voltage Reference

Part	Output Type	Package / Case	Package / Case [custom]	Package / Case	Voltage - Output (Min/Fixed)	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Noise - 10Hz to 10kHz	Supplier Device Package	Noise - 0.1Hz to 10Hz	Reference Type	Current - Supply	Primary Attributes [Max]	Primary Attributes [Min]	Type	Supplied Contents	Utilized IC / Part	Function
Analog Devices ADR3625BRMZ	1.81 mOhm	8-MSOP 8-TSSOP	0.118 in	3 mm	2.5 V	Surface Mount	0.04 %	-40 °C	125 °C	3 ppm/°C	4 ppmrms	8-MSOP	3 µVp-p	Series	75 µA

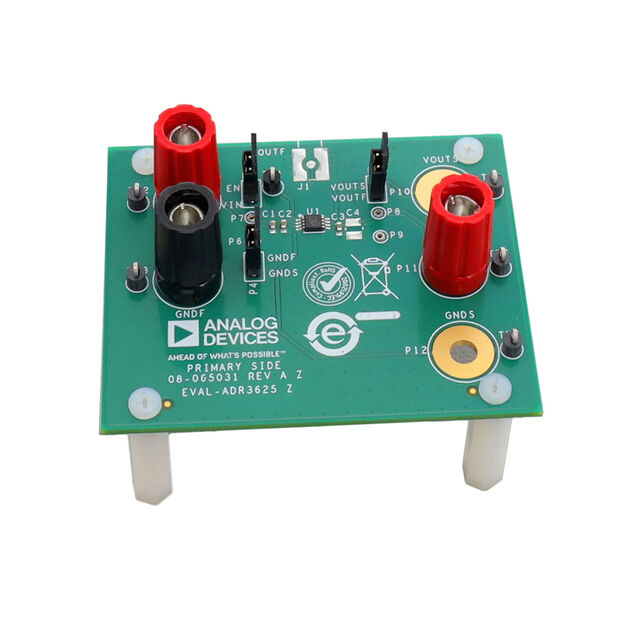

Analog Devices EVAL-ADR3625EBZ																16 V	3 V	Power Management	Board(s)	ADR3625	Voltage Reference
Analog Devices ADR3625BRMZ-R7	1.81 mOhm	8-MSOP 8-TSSOP	0.118 in	3 mm	2.5 V	Surface Mount	0.04 %	-40 °C	125 °C	3 ppm/°C	4 ppmrms	8-MSOP	3 µVp-p	Series	75 µA
Analog Devices ADR3625ARMZ	1.81 mOhm	8-MSOP 8-TSSOP	0.118 in	3 mm	2.5 V	Surface Mount	0.08 %	-40 °C	125 °C	6 ppm/°C	4 ppmrms	8-MSOP	3 µVp-p	Series	75 µA
Analog Devices ADR3625ARMZ-R7	1.81 mOhm	8-MSOP 8-TSSOP	0.118 in	3 mm	2.5 V	Surface Mount	0.08 %	-40 °C	125 °C	6 ppm/°C	4 ppmrms	8-MSOP	3 µVp-p	Series	75 µA

Catalog

Precision, Micropower, High Current Output Voltage Reference

Key Features

• Maximum temperature coefficient3 ppm/°C (B grade)6 ppm/°C (A grade)

• 3 ppm/°C (B grade)

• 6 ppm/°C (A grade)

• Output current capacity (typical): 70 mA sourcing/20 mA sinking

• Low quiescent current: 65 μA

• Low shutdown current: 1.5 μA

• Output voltage noise (0.1 Hz to 10 Hz): 3 ppm p-p

• Maximum initial output voltage error±0.04% (B grade)±0.08% (A grade)

• ±0.04% (B grade)

• ±0.08% (A grade)

• Operating temperature range: −40°C to +125°C

• Maximum input voltage: 16 V

• Low dropout voltage: 0.25 V

• 1.8 V logic compatible

• 8-Lead MSOP package

Description

The ADR3625\ADR3630\ADR3650are low power, high precision voltage references that feature a maximum temperature coefficient of 3 ppm/°C for the B grade in an 8-lead MSOP. Capable of sourcing up to 70 mA, the ADR3625\ADR3630\ADR3650 are an exceptional replacement to standard low dropout (LDO) regulators. For high accuracy, the output voltage and temperature coefficient are trimmed during production using the Analog Devices, Inc., proprietary DigiTrim®technology.The low thermal hysteresis (7 ppm) and low long-term drift (160 ppm at 3500 Hr) improve system lifetime accuracy. A minimum load capacitance of 0.1 μF is required for operation. The ADR3625\ADR3630\ADR3650 is specified over the –‍40°C to +125°C operating temperature range.APPLICATIONSPrecision power suppliesPortable instrumentationProcess transmittersRemote sensorsMedical instrumentationAuto battery monitors
