ADP1710 Series

Catalog

IC REG LINEAR 0.95V 150MA TSOT5

Part	Current - Supply (Max) [Max]	Output Type	Voltage Dropout (Max) [Max]	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Protection Features	Output Configuration	Current - Output	Control Features	Number of Regulators	PSRR	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Contents	Channels per IC	Board Type	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Regulator Type
Analog Devices ADP1710AUJZ-0.95R7	1.3 mA	1.81 mOhm	0.25 V	Surface Mount	5.5 V	SOT-23-5 Thin TSOT-23-5	0.95 V	50 çA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	150 mA	Enable	1	58 dB	-40 °C	125 ¯C

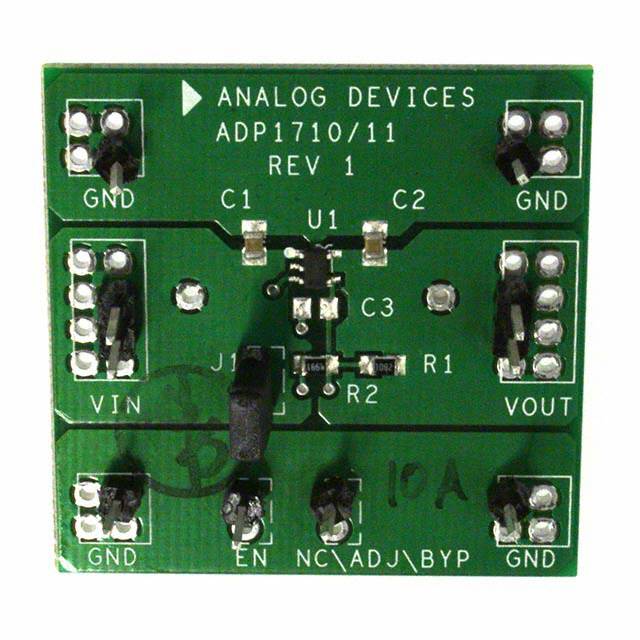

Analog Devices ADP1710-EVALZ											150 mA						5 V	0.8 V	Board(s)	1 - Single	Fully Populated	ADP1710AUJZ	2.5 V	5.5 V	Board(s)	Positive Adjustable
Analog Devices ADP1710AUJZ-3.3-R7	1.3 mA	1.81 mOhm	0.3 V	Surface Mount	5.5 V	SOT-23-5 Thin TSOT-23-5	3.3 V	50 çA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	150 mA	Enable	1	58 dB	-40 °C	125 ¯C
Analog Devices ADP1710AUJZ-0.9-R7	1.3 mA	1.81 mOhm	0.25 V	Surface Mount	5.5 V	SOT-23-5 Thin TSOT-23-5	0.9 V	50 çA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	150 mA	Enable	1	58 dB	-40 °C	125 ¯C
Analog Devices ADP1710AUJZ-1.05R7	1.3 mA	1.81 mOhm	0.25 V	Surface Mount	5.5 V	SOT-23-5 Thin TSOT-23-5	1.05 V	50 çA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	150 mA	Enable	1	58 dB	-40 °C	125 ¯C
Analog Devices ADP1710AUJZ-2.5-R7	1.3 mA	1.81 mOhm	0.3 V	Surface Mount	5.5 V	SOT-23-5 Thin TSOT-23-5	2.5 V	50 çA	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	150 mA	Enable	1	58 dB	-40 °C	125 ¯C
