C0765 Series

Catalog

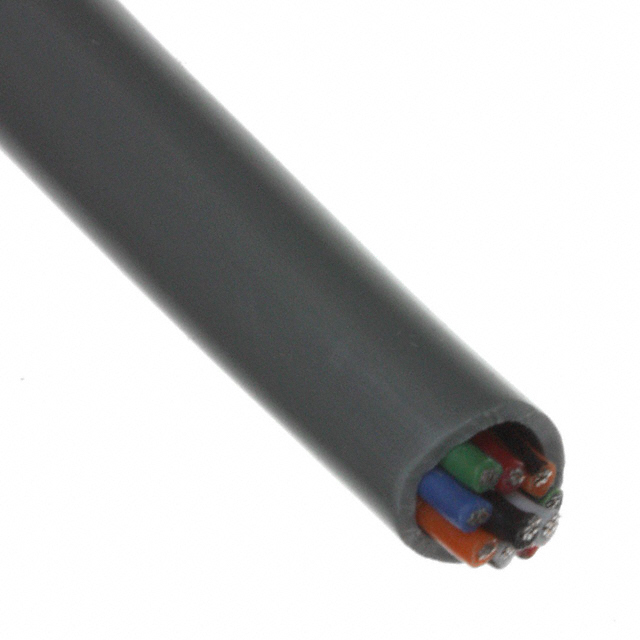

CABLE 10CON 22AWG GRAY SHLD

Part	Shield Type	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Wire Gauge	Features	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Length	Length	Usage	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Jacket (Insulation) Material	Conductor Insulation	Shield Coverage	Cable Type
Prysmian Group C0765A.18.10	Foil	Copper Annealed Tinned	80 °C	-20 ░C	Gray	22 AWG	Drain Wire	30 AWG	7	300 VDC	152.4 m	500 ft	Computer	ASTM B-33	6.83 mm	0.269 "	10	0.813 mm	0.032 in	Flexfoil®	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	100 %	Multi-Conductor
Prysmian Group C0765A.18.10	Foil	Copper Annealed Tinned	80 °C	-20 ░C	Gray	22 AWG	Drain Wire	30 AWG	7	300 VDC	152.4 m	500 ft	Computer	ASTM B-33	6.83 mm	0.269 "	10	0.813 mm	0.032 in		Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)		Multi-Conductor
Prysmian Group C0765A.41.10	Foil	Copper Annealed Tinned	80 °C	-20 ░C	Gray	22 AWG	Drain Wire	30 AWG	7	300 VDC	15.24 m 304.8 m	50 ft 1000 ft	Computer	ASTM B-33	6.83 mm	0.269 "	10	0.813 mm	0.032 in	Flexfoil®	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	100 %	Multi-Conductor
Prysmian Group C0765A.41.10	Foil	Copper Annealed Tinned	80 °C	-20 ░C	Gray	22 AWG	Drain Wire	30 AWG	7	300 VDC	15.24 m 304.8 m	50 ft 1000 ft	Computer	ASTM B-33	6.83 mm	0.269 "	10	0.813 mm	0.032 in		Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)		Multi-Conductor
Prysmian Group C0765A.38.10	Foil	Copper Annealed Tinned	80 °C	-20 ░C	Gray	22 AWG	Drain Wire	30 AWG	7	300 VDC	152.4 m	500 ft		ASTM B-33	6.83 mm	0.269 "	10	0.813 mm	0.032 in	Flexfoil®	Poly-Vinyl Chloride (PVC) Riser	Poly-Vinyl Chloride (PVC)	100 %	Multi-Conductor
Prysmian Group C0765A.38.10	Foil	Copper Annealed Tinned	80 °C	-20 ░C	Gray	22 AWG	Drain Wire	30 AWG	7	300 VDC	152.4 m	500 ft		ASTM B-33	6.83 mm	0.269 "	10	0.813 mm	0.032 in		Poly-Vinyl Chloride (PVC) Riser	Poly-Vinyl Chloride (PVC)		Multi-Conductor
