BXRC-65 Series

Manufacturer: BRIDGELUX

Catalog

Catalog

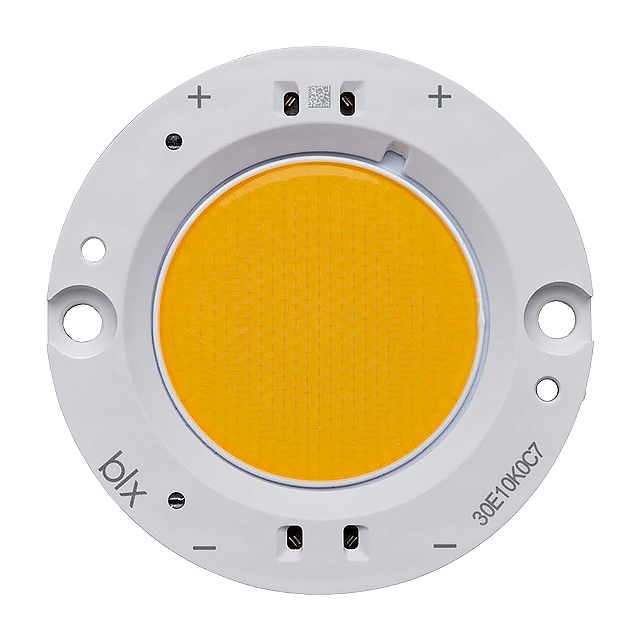

LED COB VERO 29 WHT RND 6500K

...

Part	Type	Temperature - Test	Height [z]	CCT (K)	CCT (K)	Current - Max [Max]	Size / Dimension [diameter]	Viewing Angle	Color	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Lens Type	Lumens/Watt @ Current - Test	Configuration	Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Features	Height
BRIDGELUX BXRC-65E10K1-D-74	Chip On Board (COB)	25 °C	1.9 mm	4-Step MacAdam Ellipse	6500 K	4.2 A	49.2 mm	120 °	Cool White	80	29.2 mm	Flat	172 lm/W	Round	2.1 A	13581 lm	37.6 V
BRIDGELUX BXRC-65E2001-C-74	Chip On Board (COB)	85 °C	1.9 mm	4-Step MacAdam Ellipse	6500 K	1.26 A	36.2 mm	120 °	Cool White	80	13.2 mm	Flat	157 lm/W	Round	630 mA	3383 lm	34.1 V	With Connector
BRIDGELUX BXRC-65E1001-C-73-SE	Chip On Board (COB)	85 °C	3.6 mm		6500 K	720 mA	30.8 mm	120 °	Cool White	80	9.9 mm	Flat	150 lm/W	Round	360 mA	1827 lm	33.8 V
BRIDGELUX BXRC-65E2001-C-83	Chip On Board (COB)	25 °C	1.9 mm		6500 K	1.75 A	36.2 mm	120 °	Cool White	80	13.3 mm	Flat	181 lm/W	Round	500 mA	3015 lm	33.4 V		1.8 mm
BRIDGELUX BXRC-65C4001-C-73-SE	Chip On Board (COB)	85 °C	3.6 mm		6500 K	2.34 A	36.2 mm	120 °	Cool White	70	18.4 mm	Flat		Round	1.17 A	6449 lm	34.1 V
BRIDGELUX BXRC-65C4001-B-74	Chip On Board (COB)	85 °C	1.9 mm	4-Step MacAdam Ellipse	6500 K	1.8 A	36.2 mm		Cool White	70	18.4 mm	Flat	159 lm/W 166 lm/W	Round	900 mA	4876 lm 5052 lm	33.9 V 34.1 V	With Connector
BRIDGELUX BXRC-65E2001-D-74	Chip On Board (COB)	85 °C	1.9 mm	4-Step MacAdam Ellipse	6500 K	1 A	36.2 mm	120 °	Cool White	80	13.2 mm	Flat	159 lm/W	Round	500 mA	2461 lm	30.9 V	With Connector
BRIDGELUX BXRC-65E10K1-B-73-SE	Chip On Board (COB)	25 °C	3.6 mm		6500 K	3.6 A	49.2 mm	120 °	Cool White	80	29.2 mm	Flat	172 lm/W	Round	1.8 A	16099 lm	52 V
BRIDGELUX BXRC-65E10K1-B-74	Chip On Board (COB)	25 °C	1.9 mm	4-Step MacAdam Ellipse	6500 K	3.6 A	49.2 mm	120 °	Cool White	80	29.2 mm	Flat	172 lm/W	Round	1.8 A	16099 lm	52 V
BRIDGELUX BXRC-65E2001-D-73-SE	Chip On Board (COB)	85 °C	3.6 mm		6500 K	1 A	36.2 mm	120 °	Cool White	80	13.4 mm	Flat	156 lm/W	Round	500 mA	2418 lm	30.9 V
