887-015 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SGL FMALE 15POS 0.156

...

Part	Material - Insulation	Termination Rows	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Color	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Read Out	Mounting Type	Card Type	Contact Type	Number of Rows	Gender	Contact Material	Contact Finish	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 887-015-523-107	Polyphenylene Sulfide (PPS)	1	3.96 mm	0.156 in	125 °C	-40 C	15	Black	Solder	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Single	Through Hole	Non Specified - Single Edge	Cantilever	1	Female	Copper Alloy	Gold	15	0.07 in 1.78 mm	0.054 in 1.37 mm

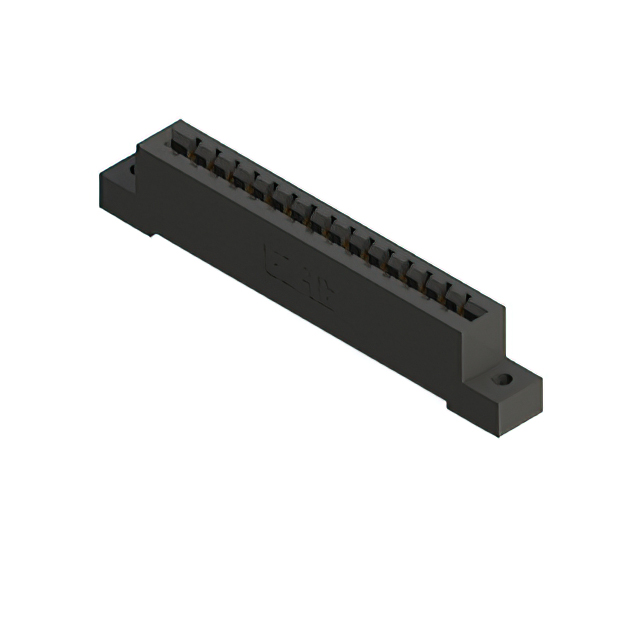

EDAC Inc. 887-015-544-102	Polyphenylene Sulfide (PPS)	1	3.96 mm	0.156 in	125 °C	-40 C	15	Black	Wire Wrap	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Single	Through Hole	Non Specified - Single Edge	Cantilever	1	Female	Copper Alloy	Gold	15	0.07 in 1.78 mm	0.054 in 1.37 mm	3.25 mm	0.128 "
EDAC Inc. 887-015-520-102	Polyphenylene Sulfide (PPS)	1	3.96 mm	0.156 in	125 °C	-40 C	15	Black	Solder	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Single	Through Hole	Non Specified - Single Edge	Cantilever	1	Female	Copper Alloy	Gold	15	0.07 in 1.78 mm	0.054 in 1.37 mm	3.25 mm	0.128 "
EDAC Inc. 887-015-520-608	Polyphenylene Sulfide (PPS)	1	3.96 mm	0.156 in	125 °C	-40 C	15	Black	Solder	0.25 Ám	10 Áin	4-40 Threaded Insert Top Mount Opening	Single	Through Hole	Non Specified - Single Edge	Cantilever	1	Female	Copper Alloy	Gold	15	0.07 in 1.78 mm	0.054 in 1.37 mm

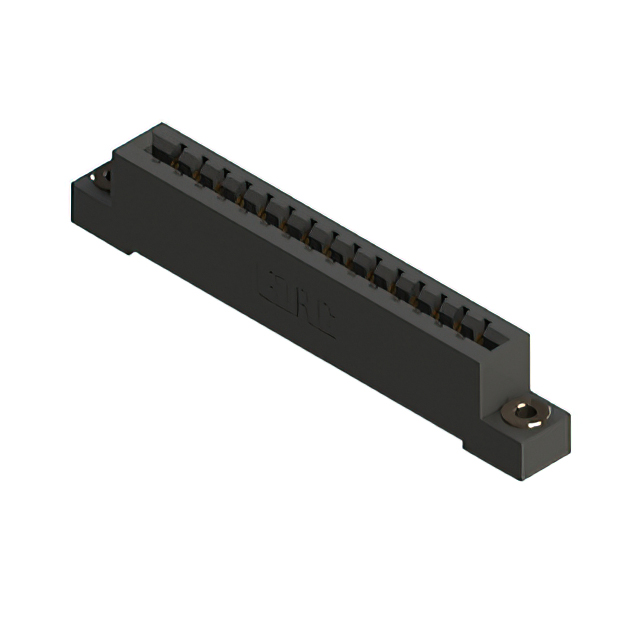

EDAC Inc. 887-015-523-103	Polyphenylene Sulfide (PPS)	1	3.96 mm	0.156 in	125 °C	-40 C	15	Black	Solder	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	Single	Through Hole	Non Specified - Single Edge	Cantilever	1	Female	Copper Alloy	Gold	15	0.07 in 1.78 mm	0.054 in 1.37 mm	2.95 mm	0.116 "
EDAC Inc. 887-015-520-612	Polyphenylene Sulfide (PPS)	1	3.96 mm	0.156 in	125 °C	-40 C	15	Black	Solder	0.25 Ám	10 Áin	Side Mount Opening Unthreaded	Single	Through Hole	Non Specified - Single Edge	Cantilever	1	Female	Copper Alloy	Gold	15	0.07 in 1.78 mm	0.054 in 1.37 mm	3.25 mm	0.128 "
EDAC Inc. 887-015-540-108	Polyphenylene Sulfide (PPS)	1	3.96 mm	0.156 in	125 °C	-40 C	15	Black	Wire Wrap	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Single	Through Hole	Non Specified - Single Edge	Cantilever	1	Female	Copper Alloy	Gold	15	0.07 in 1.78 mm	0.054 in 1.37 mm

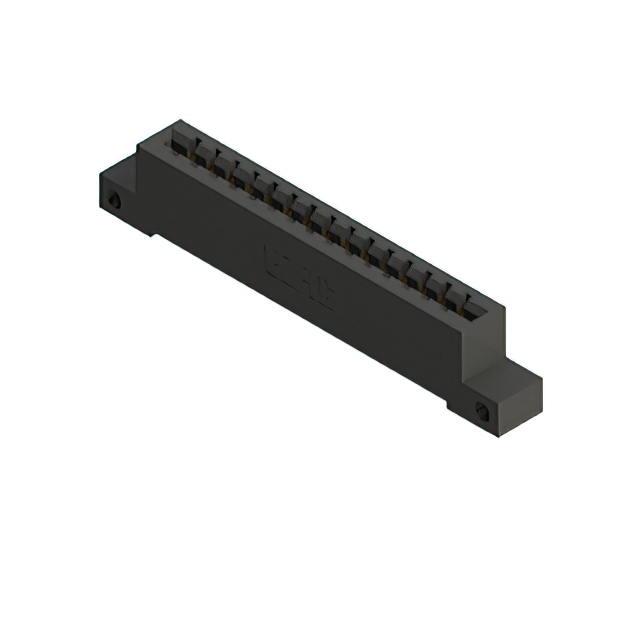

EDAC Inc. 887-015-541-112	Polyphenylene Sulfide (PPS)	1	3.96 mm	0.156 in	125 °C	-40 C	15	Black	Wire Wrap	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	Single	Through Hole	Non Specified - Single Edge	Cantilever	1	Female	Copper Alloy	Gold	15	0.07 in 1.78 mm	0.054 in 1.37 mm	3.25 mm	0.128 "

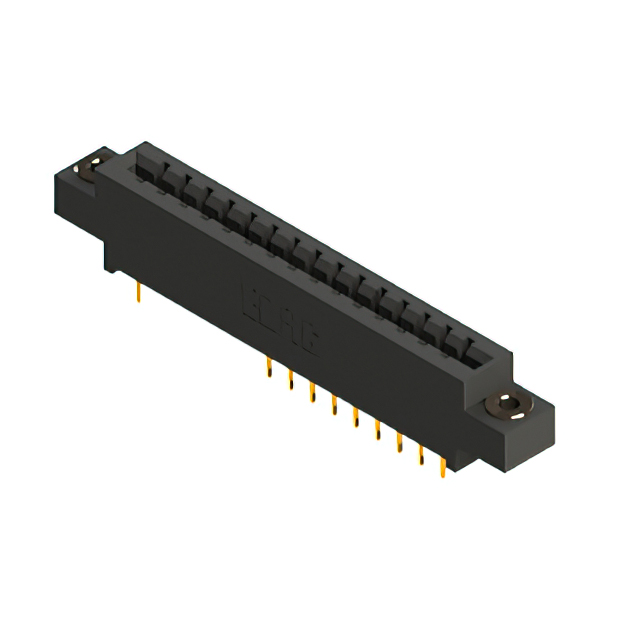

EDAC Inc. 887-015-558-603	Polyphenylene Sulfide (PPS)	1	3.96 mm	0.156 in	125 °C	-40 C	15	Black	Solder	0.25 Ám	10 Áin	Floating Bobbin Top Mount Opening	Single	Right Angle Through Hole	Non Specified - Single Edge	Cantilever	1	Female	Copper Alloy	Gold	15	0.07 in 1.78 mm	0.054 in 1.37 mm	2.95 mm	0.116 "
EDAC Inc. 887-015-521-603	Polyphenylene Sulfide (PPS)	1	3.96 mm	0.156 in	125 °C	-40 C	15	Black	Solder	0.25 Ám	10 Áin	Floating Bobbin Top Mount Opening	Single	Through Hole	Non Specified - Single Edge	Cantilever	1	Female	Copper Alloy	Gold	15	0.07 in 1.78 mm	0.054 in 1.37 mm	2.95 mm	0.116 "
