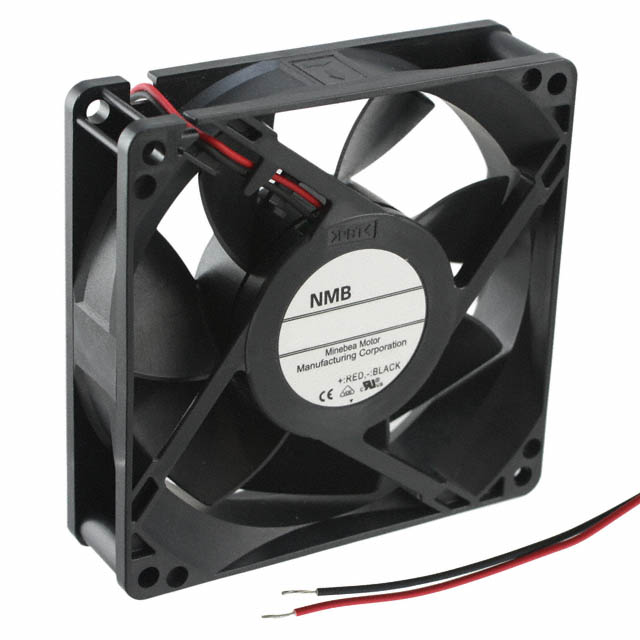

3610VL Series

Catalog

FAN AXIAL 92X25MM 12VDC WIRE

Part	Air Flow	Air Flow	Material - Frame	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Current Rating (Amps)	RPM	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Voltage - Rated	Static Pressure	Static Pressure	Bearing Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Noise	Width [y]	Termination	Weight	Weight	Approval Agency	Features
NMB TECHNOLOGIES 3610VL-04W-B70-B00	2.7 m³/min	96.4 CFM	Plastic	Plastic	13.8 VDC	7 V	100000 Hrs	0.72 A	5600 RPM	92 mm	92 mm	Tubeaxial	12 VDC	0.602 in H2O	149.9 Pa	Ball	8.64 W	70 °C	-10 °C	96.4 CFM	51 dB(A)	25 mm	2 Wire Leads	135.17 g	0.298 lb	CE UL VDE
NMB TECHNOLOGIES 3610VL-04W-B70-E00	2.7 m³/min		Plastic	Plastic	13.8 VDC	7 V	100000 Hrs	0.72 A	5600 RPM	92 mm	92 mm	Tubeaxial	12 VDC	0.602 in H2O	149.9 Pa	Ball	8.64 W	70 °C	-10 °C	96.4 CFM	51 dB(A)	25 mm	2 Wire Leads	135.17 g	0.298 lb	CE UL VDE
NMB TECHNOLOGIES 3610VL-04W-B50-E00	2.16 m³/min		Plastic	Plastic	13.8 VDC	7 V	100000 Hrs	400 mA	4500 RPM	92 mm	92 mm	Tubeaxial	12 VDC	0.393 in H2O	98 Pa	Ball	4.8 W	70 °C	-10 °C	77 CFM	45 dB(A)	25 mm	2 Wire Leads	135.17 g	0.298 lb	CE UL VDE
NMB TECHNOLOGIES 3610VL-04W-B60-B00	2.4 m³/min		Plastic	Plastic	13.8 VDC	7 V	100000 Hrs	0.52 A	5000 RPM	92 mm	92 mm	Tubeaxial	12 VDC	0.48 in H2O	119.6 Pa	Ball	6.24 W	70 °C	-10 °C	85.8 CFM	48 dB	25 mm	2 Wire Leads	135.17 g	0.298 lb	CE UL VDE
NMB TECHNOLOGIES 3610VL-05W-B70-E00	2.7 m³/min		Plastic	Plastic	27.6 VDC	14	100000 Hrs	0.38 A	5600 RPM	92 mm	92 mm	Tubeaxial	24 VDC	0.602 in H2O	149.9 Pa	Ball	9.12 W	70 °C	-10 °C	96.4 CFM	51 dB(A)	25 mm	2 Wire Leads	135.17 g	0.298 lb	CE UL VDE
NMB TECHNOLOGIES 3610VL-05W-B30-E00	1.71 m³/min		Plastic	Plastic	27.6 VDC	14	100000 Hrs	140 mA	3600 RPM	92 mm	92 mm	Tubeaxial	24 VDC	0.261 in H2O	65 Pa	Ball	3.36 W	70 °C	-10 °C	61.1 CFM	38.5 dB	25 mm	2 Wire Leads	135.17 g	0.298 lb	CE UL VDE
NMB TECHNOLOGIES 3610VL-04W-B40-E00	1.91 m³/min		Plastic	Plastic	13.8 VDC	7 V	100000 Hrs	0.3 A	4000 RPM	92 mm	92 mm	Tubeaxial	12 VDC			Ball	3.6 W	70 °C	-10 °C	68.1 CFM	42 dB	25 mm	2 Wire Leads	135.17 g	0.298 lb	CE UL VDE

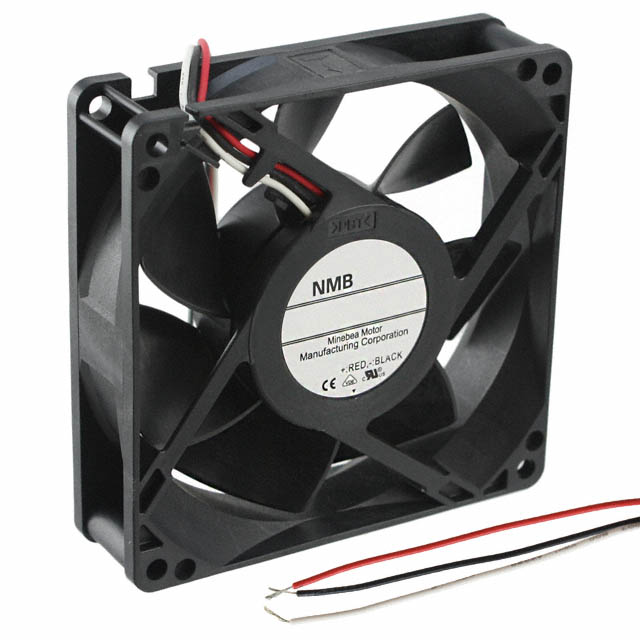

NMB TECHNOLOGIES 3610VL-05W-B59-E00	2.16 m³/min		Plastic	Plastic	27.6 VDC	14	100000 Hrs	0.22 A	4500 RPM	92 mm	92 mm	Tubeaxial	24 VDC	0.393 in H2O	98 Pa	Ball	5.28 W	70 °C	-10 °C	77 CFM	45 dB(A)	25 mm	3 Wire Leads	135.17 g	0.298 lb	CE UL VDE	Locked Rotor Sensor
NMB TECHNOLOGIES 3610VL-05W-B29-E00	1.51 m³/min		Plastic	Plastic	27.6 VDC	14	100000 Hrs	110 mA	3200 RPM	92 mm	92 mm	Tubeaxial	24 VDC	0.2 in H2O	49.8 Pa	Ball	2.64 W	70 °C	-10 °C	54 CFM	35.5 dB	25 mm	3 Wire Leads	135.17 g	0.298 lb	CE UL VDE	Locked Rotor Sensor
NMB TECHNOLOGIES 3610VL-04W-B30-B00	1.71 m³/min		Plastic	Plastic	13.8 VDC	7 V	100000 Hrs	0.24 A	3600 RPM	92 mm	92 mm	Tubeaxial	12 VDC	0.261 in H2O	65 Pa	Ball	2.88 W	70 °C	-10 °C	61.1 CFM	38.5 dB	25 mm	2 Wire Leads	135.17 g	0.298 lb	CE UL VDE
