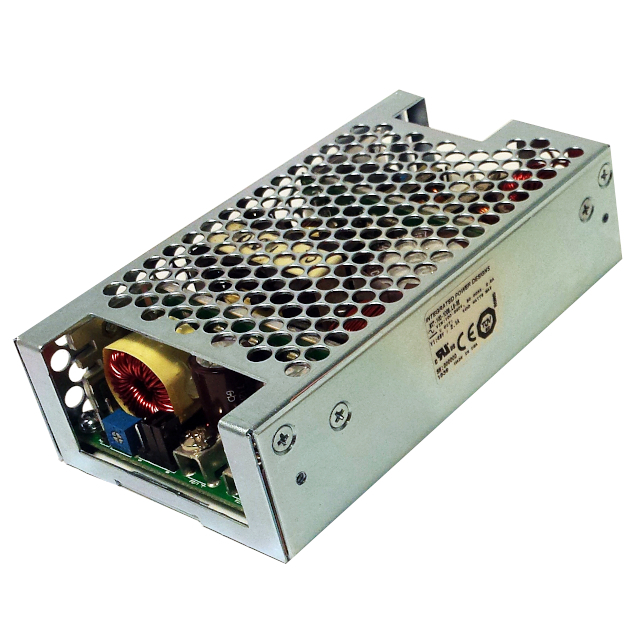

1010978 Series
Manufacturer: Integrated Power Designs
Beta
⌘K
NXT-100-1004,RE CHCO
| Part | Approval Agency | Number of Outputs | Standard Number | Power (Watts) | Features | Mounting Type | Voltage - Output 1 | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Efficiency | Type | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | CE cURus TUV UKCA | 1 | 60601-1; 62368-1 | 100 W | Adjustable Output Remote Sense Universal Input | Chassis Mount | 12 V | 8.3 A | 70 °C | 0 °C | ITE (Commercial) Medical | 85 % | Enclosed | 100 VAC | 240 VAC | 2.59 " 4.81 " 33 mm 33.02 mm 65.8 mm 122.2 mm |
