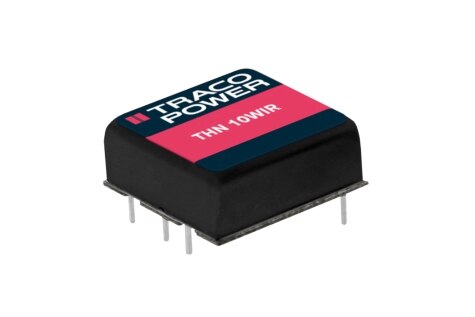

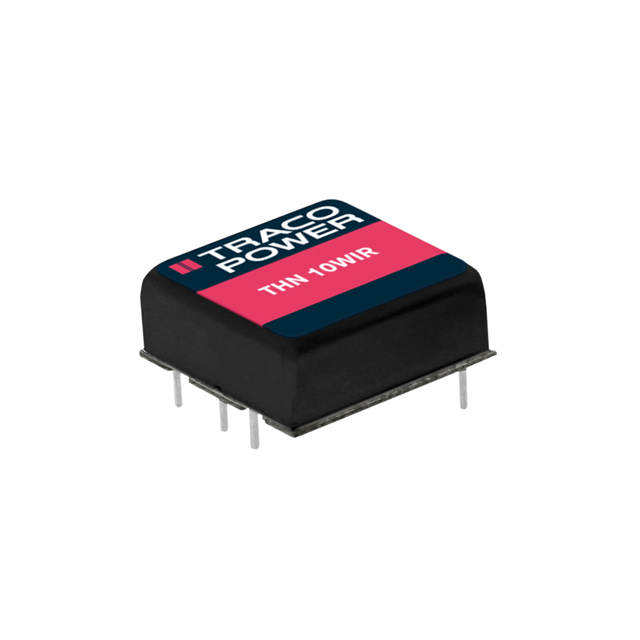

THN 10WIR Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 9-36VIN +/-24V 210MA 10W 1X1 RAILWAY
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Package / Case | Voltage - Isolation | Applications | Voltage - Input (Max) [Max] | Power (Watts) | Number of Outputs | Type | Voltage - Output 2 | Voltage - Input (Min) [Min] | Mounting Type | Features | Efficiency | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | -40 C | 105 ░C | CB cURus | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 24 V | 6-DIP Module | 3000 V | ITE (Commercial) Railway | 36 V | 10 W | 2 | Isolated Module | -24 V | 9 V | Through Hole | Adjustable Output Remote On/Off | 90 % | 210 mA | 210 mA | ||
Traco Power | -40 C | 105 ░C | CB cURus | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 12 V | 6-DIP Module | 3000 V | ITE (Commercial) Railway | 36 V | 10 W | 2 | Isolated Module | -12 V | 9 V | Through Hole | Adjustable Output Remote On/Off | 89 % | 416 mA | 416 mA | ||
 Traco Power | -40 C | 105 ░C | CB cURus | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 15 V | 6-DIP Module | 3000 V | ITE (Commercial) Railway | 75 V | 10 W | 1 | Isolated Module | 18 V | Through Hole | Adjustable Output Remote On/Off | 90 % | 670 mA | ||||
Traco Power | -40 C | 105 ░C | CB cURus | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 3.3 V | 6-DIP Module | 3000 V | ITE (Commercial) Railway | 160 V | 10 W | 1 | Isolated Module | 36 V | Through Hole | Adjustable Output Remote On/Off | 87 % | 3 A | ||||
 Traco Power | -40 C | 105 ░C | CB cURus | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 12 V | 6-DIP Module | 3000 V | ITE (Commercial) Railway | 160 V | 10 W | 1 | Isolated Module | 36 V | Through Hole | Adjustable Output Remote On/Off | 89 % | 830 mA | ||||
Traco Power | -40 C | 105 ░C | CB cURus | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 15 V | 6-DIP Module | 3000 V | ITE (Commercial) Railway | 36 V | 10 W | 1 | Isolated Module | 9 V | Through Hole | Adjustable Output Remote On/Off | 90 % | 670 mA | ||||
Traco Power | -40 C | 105 ░C | CB cURus | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 5 V | 6-DIP Module | 3000 V | ITE (Commercial) Railway | 75 V | 10 W | 2 | Isolated Module | -5 V | 18 V | Through Hole | Adjustable Output Remote On/Off | 86 % | 1 A | |||
Traco Power | -40 C | 105 ░C | CB cURus | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 15 V | 6-DIP Module | 3000 V | ITE (Commercial) Railway | 36 V | 10 W | 2 | Isolated Module | -15 V | 9 V | Through Hole | Adjustable Output Remote On/Off | 89 % | 333 mA | |||
Traco Power | -40 C | 105 ░C | CB cURus | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 12 V | 6-DIP Module | 3000 V | ITE (Commercial) Railway | 160 V | 10 W | 2 | Isolated Module | -12 V | 36 V | Through Hole | Adjustable Output Remote On/Off | 89 % | 416 mA | 416 mA | ||
Traco Power | -40 C | 105 ░C | CB cURus | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 12 V | 6-DIP Module | 3000 V | ITE (Commercial) Railway | 75 V | 10 W | 1 | Isolated Module | 18 V | Through Hole | Adjustable Output Remote On/Off | 89 % | 830 mA |
