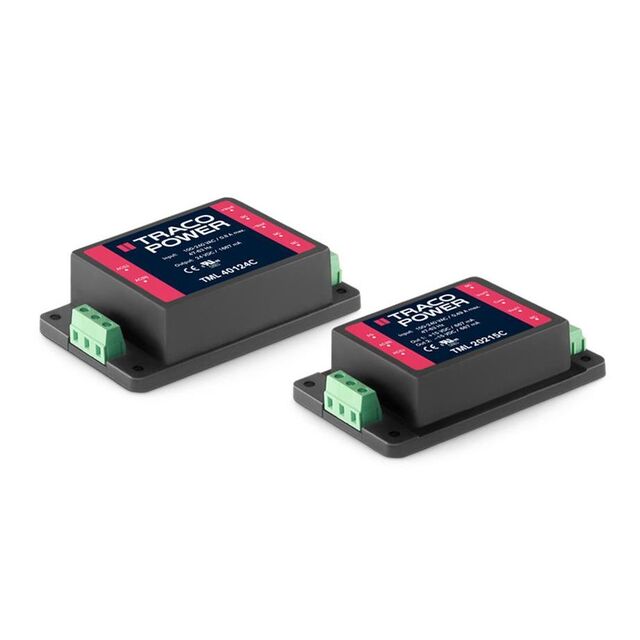

TML 40515 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 5V +/-15V 40W
| Part | Minimum Load Required | Applications | Current - Output 3 | Current - Output 1 | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Efficiency | Power (Watts) | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 3 | Approval Agency | Voltage - Output 1 | Current - Output 2 | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Type | Mounting Type | Features | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | ITE (Commercial) | 500 mA | 5 A | 2.5 " | 63.5 mm | 4.41 " | 32.5 mm | 112 mm | 1.28 " | 84 % | 40 W | 3 | 264 VAC 375 VDC | 90 VAC 100 V | -15 V | CB CE cURus | 5 V | 500 mA | 3000 V | -40 °C | 60 °C | Enclosed | Chassis Mount | Adjustable Output Universal Input | 15 V |
