MCP3425 Series

Catalog

16-BIT DELTA-SIGMA ADC, SINGLE CHANNEL, 15SPS 6 SOT-23 T/R ROHS COMPLIANT: YES

Part	Features	Number of Inputs	Number of Bits	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Configuration	Data Interface	Mounting Type	Sampling Rate (Per Second)	Number of A/D Converters	Architecture	Reference Type	Input Type	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Supplied Contents	Input Range	Sampling Rate (Per Second) [Min]	Sampling Rate (Per Second) [Max]
Microchip Technology MCP3425A2T-E/CH	PGA	1	16	5.5 V	2.7 V	2.7 V	5.5 V	PGA-ADC	I2C	Surface Mount	15 Per Second	1	Sigma-Delta	Internal	Differential	SOT-23-6	SOT-23-6	125 °C	-40 °C

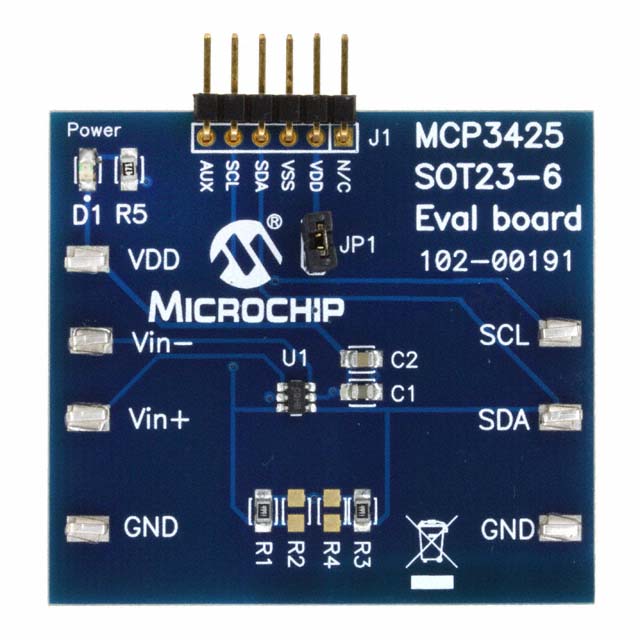

Microchip Technology MCP3425EV			16						I2C			1								MCP3425	Board(s)	2.048 V	15 Per Second	240 Per Second
Microchip Technology MCP3425A1T-E/CH	PGA	1	16	5.5 V	2.7 V	2.7 V	5.5 V	PGA-ADC	I2C	Surface Mount	15 Per Second	1	Sigma-Delta	Internal	Differential	SOT-23-6	SOT-23-6	125 °C	-40 °C
Microchip Technology MCP3425A3T-E/CH	PGA	1	16	5.5 V	2.7 V	2.7 V	5.5 V	PGA-ADC	I2C	Surface Mount	15 Per Second	1	Sigma-Delta	Internal	Differential	SOT-23-6	SOT-23-6	125 °C	-40 °C
