LF13WBJ Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

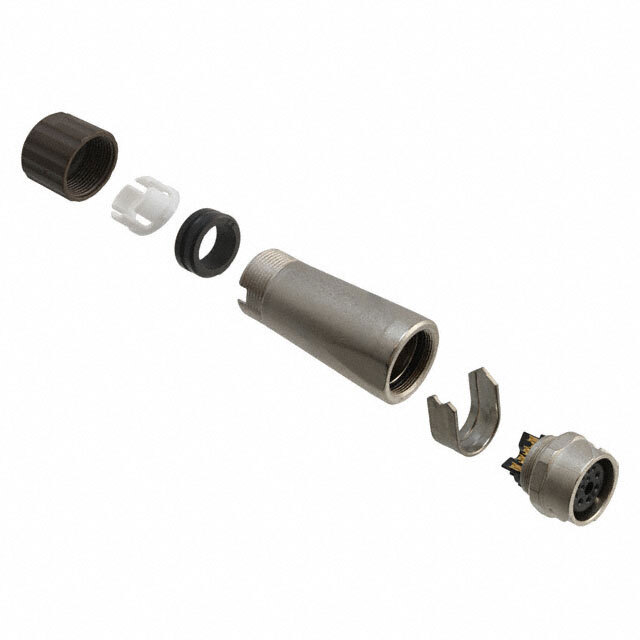

CONN JACK FMALE 20P SOLDER CUP
| Part | Shell Size - Insert [custom] | Shielding | Material Flammability Rating | Contact Finish - Mating | Features | Contact Material | Current Rating (Amps) | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Applications | Backshell Material, Plating | Shell Material | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Orientation | Insert Material | Number of Positions | Primary Material | Shell Finish | Ingress Protection | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 13 | Shielded | UL94 V-0 | Gold | Backshell Clamp Strain Relief | Phosphor Bronze | 2 A | 30 VAC 42 VDC | 85 °C | -25 °C | Free Hanging (In-Line) | Industrial Telecommunications | Nickel Zinc Alloy | Zinc Alloy | Bayonet Lock | 8 µin | 0.203 µm | Jack Female Sockets | Keyed | Polyphenylene Sulfide (PPS) | 20 | Metal | Nickel | IP67/IP68 | Brown Silver |
