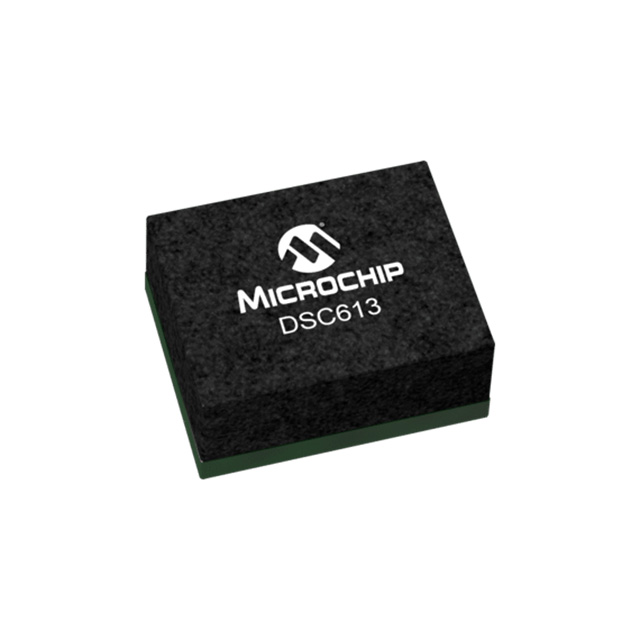

DSC613 Series

3-Output Low Power MEMS Clock Generator

Catalog

3-Output Low Power MEMS Clock Generator

Part	Current - Supply (Max) [Max]	Frequency - Output 3	Frequency - Output 2	Package / Case	Frequency Stability	Frequency - Output 1	Height [z]	Height [z]	Output	Base Resonator	Current - Supply (Disable) (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Function	Operating Temperature [Max]	Operating Temperature [Min]	Divider/Multiplier	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Number of Circuits	Mounting Type	Ratio - Input:Output [custom]
Microchip Technology DSC613RI3A-010UT	6.5 mA	27 MHz	25 MHz	6-VFLGA	20 ppm	50 MHz	0.035 in	0.89 mm	LVCMOS	MEMS	1.5 µA	3.63 V	1.71 V	XO (Standard)	0.098 "	2 mm	2.5 mm	0.079 in	Enable/Disable	85 °C	-40 °C
Microchip Technology DSC613RE2A-016Y				6-VFLGA					LVCMOS			3.63 V	1.71 V	Clock Generator						70 °C	-20 C	Yes/No	6-VFLGA (2x1.6)	2	1.6	1	Surface Mount	1:3
Microchip Technology DSC613NI3A-0105T	6.5 mA	32.768 kHz	12 MHz	6-VFLGA	20 ppm	25 MHz	0.035 in	0.89 mm	LVCMOS	MEMS	1.5 µA	3.63 V	1.71 V	XO (Standard)	0.079 in	1.6 mm	2 mm	0.063 in	Enable/Disable	85 °C	-40 °C
Microchip Technology DSC613RI3A-016P				6-VFLGA					LVCMOS			3.63 V	1.71 V	Clock Generator						85 °C	-40 °C	Yes/No	6-VFLGA (2x1.6)	2	1.6	1	Surface Mount	1:3
Microchip Technology DSC613RE1A-0136	6.5 mA	100 MHz	100 MHz	6-VFLGA	50 ppm	50 MHz	0.035 in	0.89 mm	LVCMOS	MEMS	1.5 µA	3.63 V	1.71 V	XO (Standard)	0.098 "	2 mm	2.5 mm	0.079 in	Enable/Disable	70 °C	-20 C
Microchip Technology DSC613RL2A-0131T	6.5 mA	32.768 kHz	25 MHz	6-VFLGA	25 ppm	12 MHz	0.035 in	0.89 mm	LVCMOS	MEMS	1.5 µA	3.63 V	1.71 V	XO (Standard)	0.098 "	2 mm	2.5 mm	0.079 in		105 ░C	-40 °C
Microchip Technology DSC613RA2A-0106B	6.5 mA	32.768 kHz	24 MHz	6-VFLGA	25 ppm	19.2 MHz	0.035 in	0.89 mm	LVCMOS	MEMS	1.5 µA	3.63 V	1.71 V	XO (Standard)	0.098 "	2 mm	2.5 mm	0.079 in	Enable/Disable	125 °C	-40 °C
Microchip Technology DSC613PI2A-0131	6.5 mA	32.768 kHz	25 MHz	6-VFLGA	25 ppm	12 MHz	0.035 in	0.89 mm	LVCMOS	MEMS	1.5 µA	3.63 V	1.71 V	XO (Standard)	0.063 in	1.2 mm	1.6 mm	0.047 in		85 °C	-40 °C
Microchip Technology DSC613RE1A-0135	6.5 mA	100 MHz	100 MHz	6-VFLGA	50 ppm	50 MHz	0.035 in	0.89 mm	LVCMOS	MEMS	1.5 µA	3.63 V	1.71 V	XO (Standard)	0.098 "	2 mm	2.5 mm	0.079 in	Enable/Disable	70 °C	-20 C
Microchip Technology DSC613PI3A-0105T	6.5 mA	32.768 kHz	12 MHz	6-VFLGA	20 ppm	25 MHz	0.035 in	0.89 mm	LVCMOS	MEMS	1.5 µA	3.63 V	1.71 V	XO (Standard)	0.063 in	1.2 mm	1.6 mm	0.047 in	Enable/Disable	85 °C	-40 °C

Catalog

3-Output Low Power MEMS Clock Generator

Key Features

• Supports 3 LVCMOS clock outputs from 2kHz to 100MHz

•

• Integrated MEMS resonator eliminates the need of external crystal

•

• Low power consumption: 5.2mA active, 1 µA standby current

•

• Wide supply voltage range: 1.71V -3.63V

•

• Ultra-small package size: 1.6mm x 1.2mm, 2.0mm x 1.6mm, 2.5mm x 2.0mm

•

• High frequency stability: ±20ppm, ±25ppm, ±50ppm

•

• Supports wide temperature range: -40 to +125ºC

•

• Flexible control functions: Output Enable, Standby, SLEEP, Frequency Select, SpreadSpectrum Enable

•

• Supports 3 output drive strength and Spread Spectrum clock for EMI reduction

•

• Excellent shock and vibration immunity

•

• High reliability

•

• Lead free and RoHS compliant* Refer to DSA613 for automotive applications

Description

The DSC613 family of devices is industry’s smallest MEMS clock generator that can replace up to three crystals and oscillators on a board, reducing timing component board space by up to 80 percent. The clock generator eliminates the need for an external crystal by integrating the low power and high stability Micro-Electro-Mechanical Systems (MEMS) resonator. The family includes two low power fractional PLLs that provide leading frequency flexibility and robust jitter performance. Customer can configure output frequency, control pin function, package size, PPM accuracy and temperature range. Up to three output drive strengths are available based on the custom board loading condition. Spread-Spectrum clocks are also available for EMI reduction. The DSC613 is a highly configurable device and is factory programmed to meet the customer’s needs. Please go to[**ClockWorks Configurator**](https://clockworks.microchip.com/microchip/CWHome/DSC613) to configure the output frequencies and control functions, generate custom part number and data sheet, and order samples. [DSC613 product family sell sheet](https://ww1.microchip.com/downloads/en/DeviceDoc/DSC612%20613%20Sell%20Sheet.pdf) Under the same family, the [DSC612](https://www.microchip.com/en-us/product/dsc612) supports two anyRate LVCMOS clock outputs and two control inputs.
