LF10WBRB Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT MALE 12POS GOLD SOLDER
| Part | Insert Material | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Primary Material | Contact Finish - Mating | Number of Positions | Shell Material | Connector Type | Mounting Feature | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Color | Current Rating (Amps) | Shell Size - Insert [custom] | Mounting Type | Shell Finish | Termination | Material Flammability Rating | Fastening Type | Voltage Rating | Orientation | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

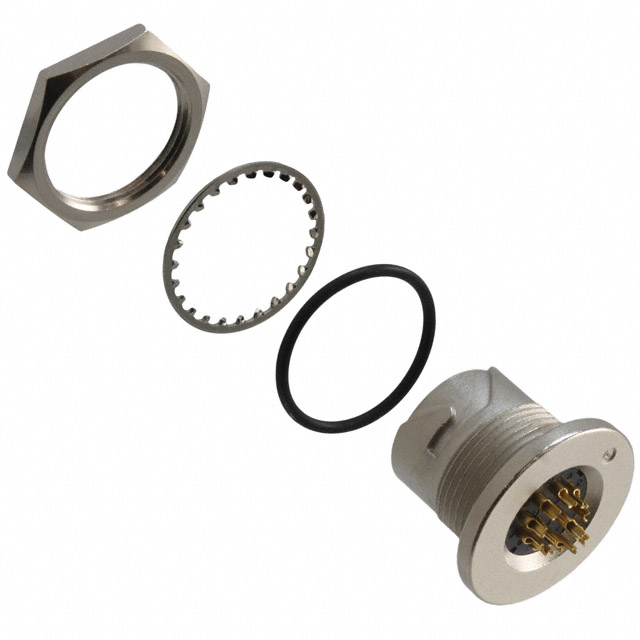

 Hirose Electric Co Ltd | Polyphenylene Sulfide (PPS) | Industrial Telecommunications | 8 µin | 0.203 µm | Copper Alloy | Metal | Gold | 12 | Zinc Alloy | Receptacle Male Pins | Bulkhead - Front Side Nut | IP67/IP68 | 85 °C | -25 °C | Silver | 2 A | 10 | Panel Mount Through Hole | Nickel | Solder | UL94 V-0 | Bayonet Lock | 30 VAC 42 VDC | Keyed | |

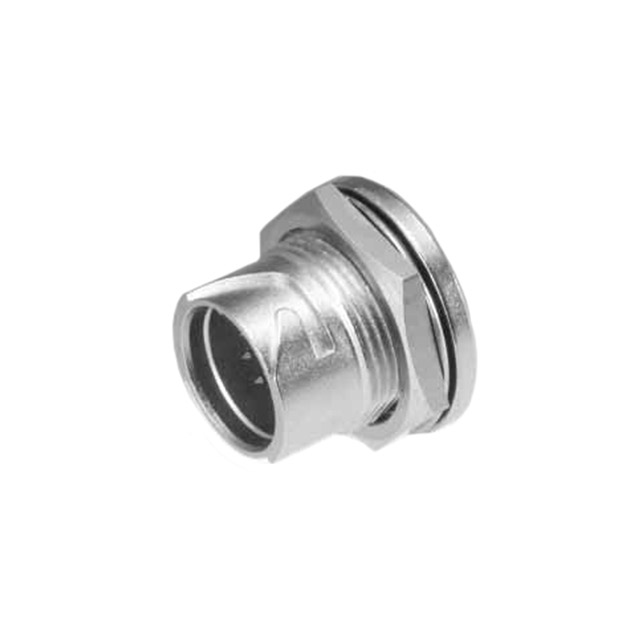

 Hirose Electric Co Ltd | Polyphenylene Sulfide (PPS) | Industrial Telecommunications | 8 µin | 0.203 µm | Copper Alloy | Metal | Gold | 12 | Zinc Alloy | Receptacle Male Pins | Bulkhead - Front Side Nut | IP67/IP68 | 85 °C | -25 °C | Silver | 2 A | 10 | Panel Mount | Nickel | UL94 V-0 | Bayonet Lock | 30 VAC 42 VDC | Keyed | ||
Hirose Electric Co Ltd | |||||||||||||||||||||||||
 Hirose Electric Co Ltd | Polyphenylene Sulfide (PPS) | Industrial Telecommunications | Copper Alloy | Metal | Gold | 4 | Zinc Alloy | Receptacle Female Sockets | Bulkhead - Front Side Nut | IP67/IP68 | 85 °C | -25 °C | Silver | 2 A | 10 | Panel Mount | Nickel | UL94 V-0 | Bayonet Lock | 30 VAC 42 VDC | Keyed | Shielded | |||

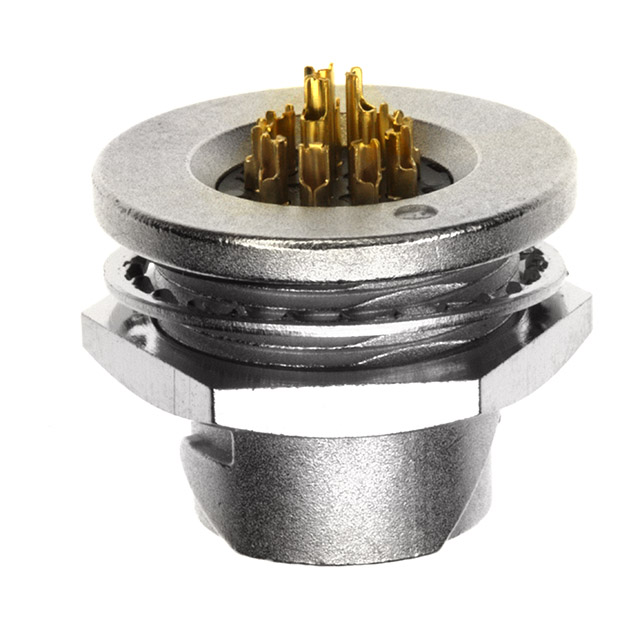

 Hirose Electric Co Ltd | Polyphenylene Sulfide (PPS) | Industrial Telecommunications | 8 µin | 0.203 µm | Phosphor Bronze | Metal | Gold | 12 | Zinc Alloy | Receptacle Female Sockets | Bulkhead - Front Side Nut | IP67/IP68 | 85 °C | -25 °C | Silver | 2 A | 10 | Panel Mount | Nickel | UL94 V-0 | Bayonet Lock | 30 VAC 42 VDC | Keyed |
