IS281 Series

Manufacturer: Isocom Components 2004 LTD

Catalog

OPTOCPLR, TRANS, 1CH, 3.75KV, SOP-4 ROHS COMPLIANT: YES

Part	Current Transfer Ratio (Max)	Input Type	Number of Channels [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Mounting Type	Current - DC Forward (If) (Max) [Max]	Package / Case [x]	Package / Case	Package / Case [y]	Vce Saturation (Max) [Max]	Current - Output / Channel [custom]	Output Type	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)	Current Transfer Ratio (Min)	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Min) [Min]	Current Transfer Ratio (Max) [Max]

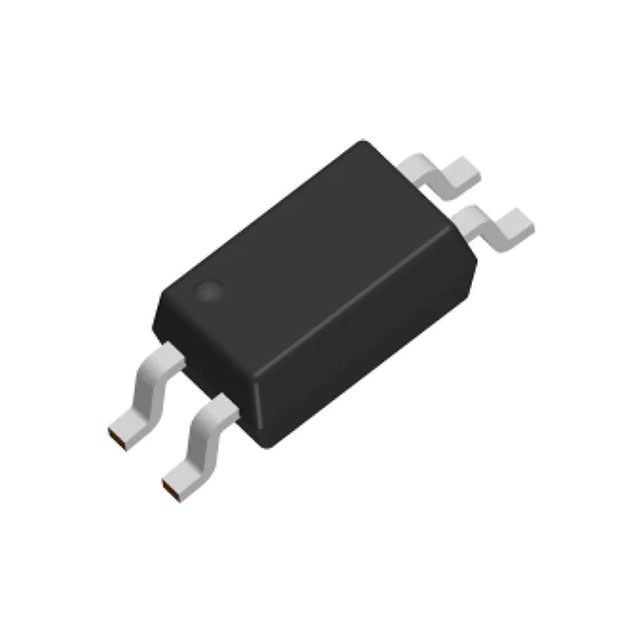

Isocom Components 2004 LTD IS281A	160 %	DC	1	-55 C	110 °C	3750 Vrms	Surface Mount	60 mA	0.173 "	4-SOIC	4.4 mm	200 mV	50 mA	Transistor	3 µs	5 µs	80 %
Isocom Components 2004 LTD IS281K		DC	1	-55 C	110 °C	3750 Vrms	Surface Mount	60 mA	0.173 "	4-SOIC	4.4 mm	200 mV	50 mA	Transistor	3 µs	5 µs

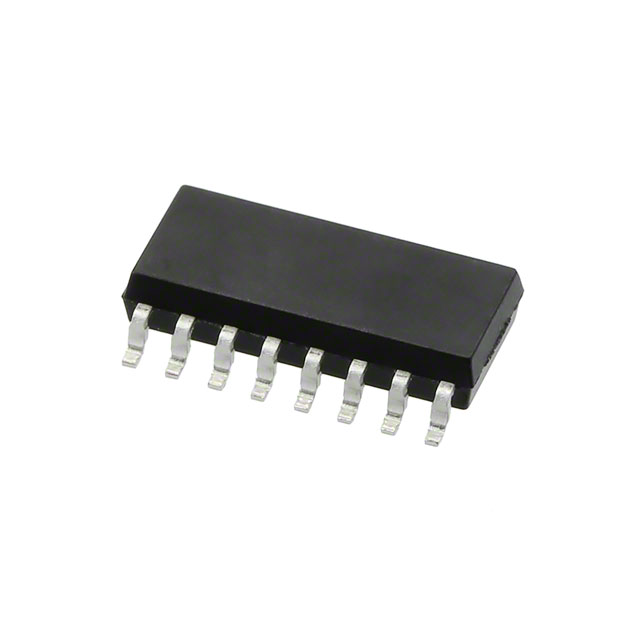

Isocom Components 2004 LTD IS281-4GB		DC	4	-55 C	110 °C	3750 Vrms	Surface Mount	50 mA		16-SOIC		400 mV	50 mA	Transistor				0.173 " 4.4 mm	4 µs	3 µs	100 %	600 %
Isocom Components 2004 LTD IS281C	400 %	DC	1	-55 C	110 °C	3750 Vrms	Surface Mount	60 mA	0.173 "	4-SOIC	4.4 mm	200 mV	50 mA	Transistor	3 µs	5 µs	200 %
Isocom Components 2004 LTD IS281E		DC	1	-55 C	110 °C	3750 Vrms	Surface Mount	60 mA	0.173 "	4-SOIC	4.4 mm	200 mV	50 mA	Transistor	3 µs	5 µs					100 %	200 %
Isocom Components 2004 LTD IS281F		DC	1	-55 C	110 °C	3750 Vrms	Surface Mount	60 mA	0.173 "	4-SOIC	4.4 mm	200 mV	50 mA	Transistor	3 µs	5 µs	150 %					300 %
Isocom Components 2004 LTD IS281B		DC	1	-55 C	110 °C	3750 Vrms	Surface Mount	60 mA	0.173 "	4-SOIC	4.4 mm	200 mV	50 mA	Transistor	3 µs	5 µs	130 %					260 %
Isocom Components 2004 LTD IS281-4		DC	4	-55 C	110 °C	3750 Vrms	Surface Mount	50 mA		16-SOIC		400 mV	50 mA	Transistor			50 %	0.173 " 4.4 mm	4 µs	3 µs		600 %
Isocom Components 2004 LTD IS281GR		DC	1	-55 C	110 °C	3750 Vrms	Surface Mount	60 mA	0.173 "	4-SOIC	4.4 mm	200 mV	50 mA	Transistor	3 µs	5 µs					100 %	300 %
