DF1-8 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

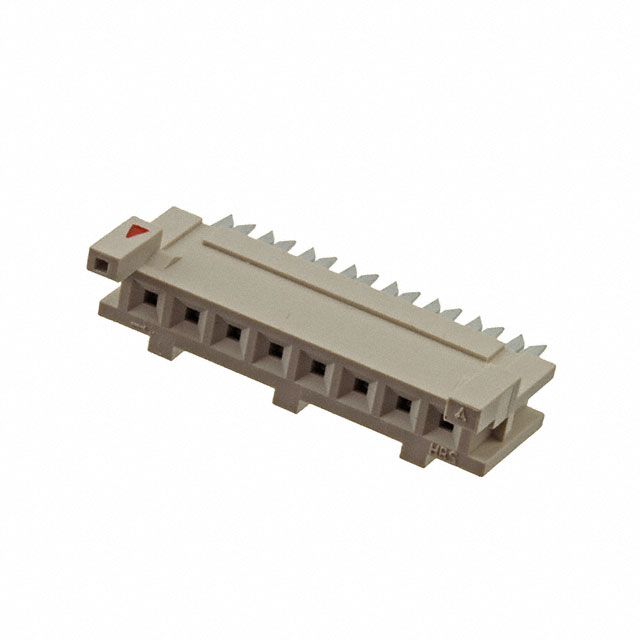

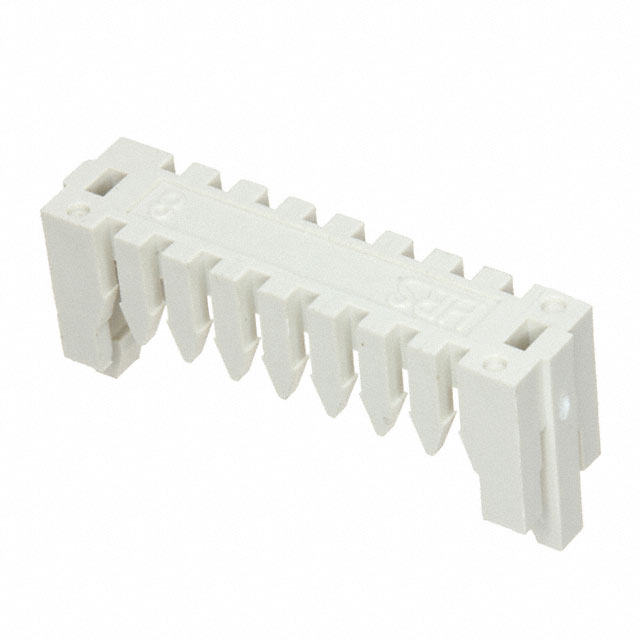

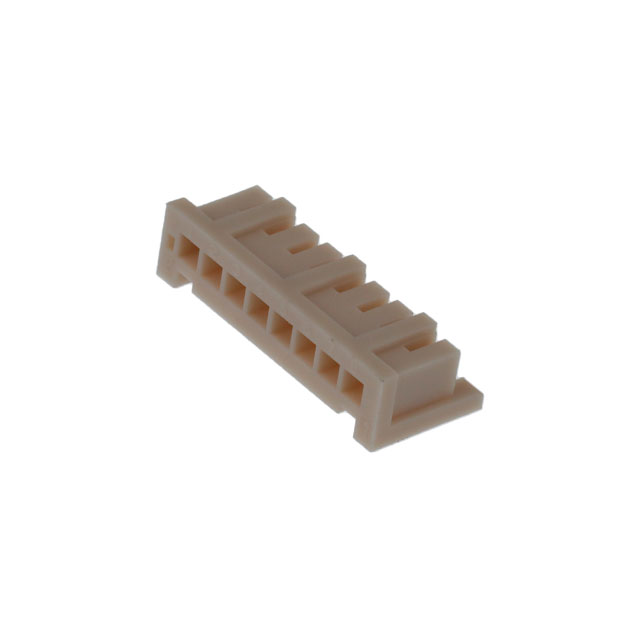

IDC PROTECTOR 8POS 26,28AWG
| Part | Number of Positions | Features [Max] | Features [Min] | For Use With/Related Products | Accessory Type | Material Flammability Rating | Contact Finish - Post | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Insulation Height [custom] | Insulation Height [custom] | Number of Rows | Current Rating (Amps) | Fastening Type | Voltage Rating | Connector Type | Shrouding | Insulation Color | Number of Positions Loaded | Style | Contact Type | Contact Material | Contact Length - Post | Contact Length - Post | Contact Shape | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Termination | Mounting Type | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Note | Contact Termination | Color | Pitch | Pitch | Contact Finish | Features | Cable Termination | Wire Type | Wire Gauge | Insulation Height [z] | Insulation Height [z] | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 8 | 28 AWG | 26 AWG | DF1 Series | Cap (Cover) | |||||||||||||||||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | 8 | UL94 V-0 | Tin | 39.4 µin | 1 µm | 0.236 " | 6 mm | 1 | 3 A | Friction Lock | 250 V | Header | Shrouded - 1 Wall | Brown | All | Board to Cable/Wire | Male Pin | Brass | 0.118 in | 3 mm | Square | 0.177 in | 4.5 mm | 2.5 mm | 0.098 in | Solder | Right Angle Through Hole | Nylon Polyamide (PA) | 85 °C | -30 ░C | ||||||||||||||||||
 Hirose Electric Co Ltd | 8 | 1 | Socket | Female Socket | Free Hanging (In-Line) | Nylon Polyamide (PA) | 85 °C | -30 ░C | Contacts Not Included | Crimp | Brown | 2.5 mm | 0.098 in | |||||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | 8 | 1 | Socket | Female Socket | Free Hanging (In-Line) | Brown | 2.5 mm | 0.098 in | Tin | Feed Through | IDC | Discrete | 26 AWG | |||||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | 8 | UL94 V-0 | Tin | 39.4 µin | 1 µm | 1 | 3 A | Friction Lock | 250 V | Header | Shrouded - 1 Wall | Brown | All | Board to Cable/Wire | Male Pin | Brass | 0.118 in | 3 mm | Square | 0.177 in | 4.5 mm | 2.5 mm | 0.098 in | Solder | Through Hole | Nylon Polyamide (PA) | 85 °C | -30 ░C | 7.5 mm | 0.295 in | 10 mm | 0.394 in | ||||||||||||||||
 Hirose Electric Co Ltd | 8 | 1 | Socket | Female Socket | Free Hanging (In-Line) | Brown | 2.5 mm | 0.098 in | Tin | Feed Through | IDC | Discrete | 28 AWG |
