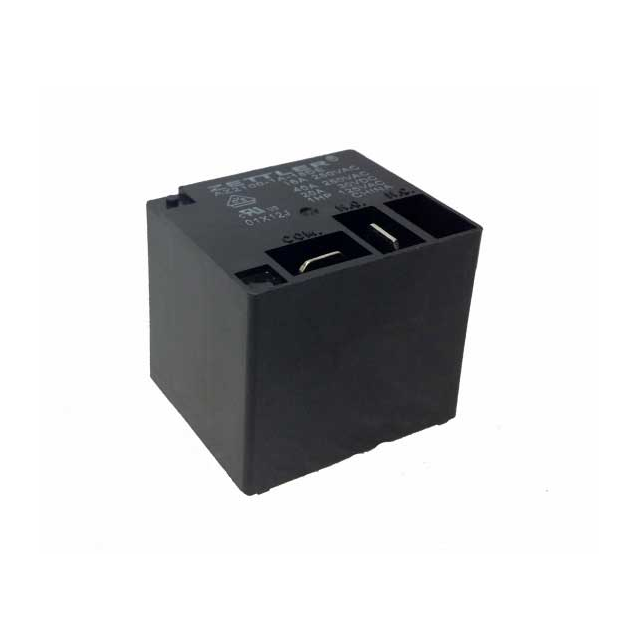

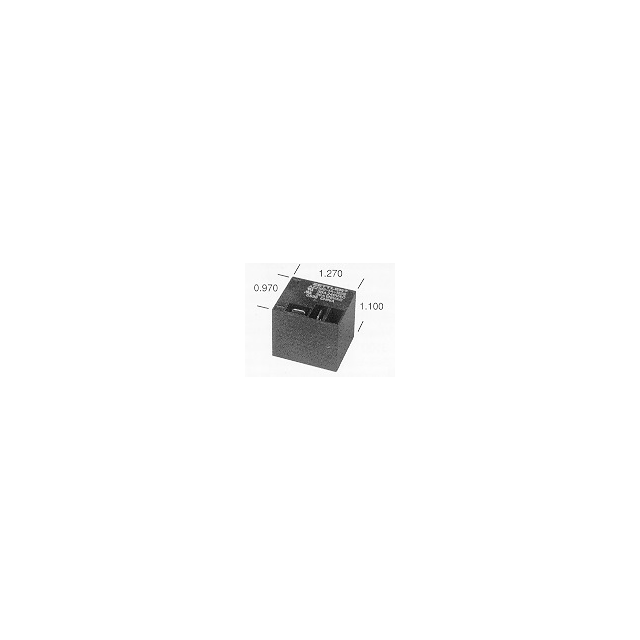

AZ2100-1C Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE SPDT 40A 70V
| Part | Coil Resistance | Coil Current | Must Release Voltage | Contact Form | Coil Insulation | Coil Type | Termination Style | Contact Material | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Release Time | Coil Voltage | Must Operate Voltage | Relay Type | Contact Rating (Current) | Mounting Type | Load - Max Switching | Approval Agency | Seal Rating | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 5.5 kOhms | 12.7 mA | 7 VDC | SPDT (1 Form C) | Class B | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | Silver Cadmium Oxide (AgCdO) | 30 VDC 300 VAC | -55 C | 85 °C | 15 ms | 10 ms | 70 VDC | 52.5 VDC | General Purpose | 40 A | Through Hole | 1200 W 12000 VA | cURus VDE | ||
American Zettler | 2560 Ohms | 18.8 mA | 4.8 VDC | SPDT (1 Form C) | Class B | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | Silver Cadmium Oxide (AgCdO) | 30 VDC 300 VAC | -55 C | 85 °C | 15 ms | 10 ms | 48 VDC | 36 VDC | General Purpose | 40 A | Through Hole | 1200 W 12000 VA | cURus VDE | ||
American Zettler | 660 Ohms | 36.4 mA | 2.4 VDC | SPDT (1 Form C) | Class B | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | Silver Cadmium Oxide (AgCdO) | 30 VDC 300 VAC | -55 C | 85 °C | 15 ms | 10 ms | 24 VDC | 18 VDC | General Purpose | 40 A | Through Hole | 1200 W 12000 VA | cURus VDE | Sealed - Fully | |
 American Zettler | 155 Ohms | 77.4 mA | 1.2 VDC | SPDT (1 Form C) | Class F | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | Silver Cadmium Oxide (AgCdO) | -55 C | 85 °C | 15 ms | 10 ms | 12 VDC | 9 VDC | General Purpose | 40 A | Through Hole | 1200 W 12000 VA | cURus VDE | Sealed - Fully | 30 VDC 277 VAC | |
 American Zettler | 660 Ohms | 36.4 mA | 2.4 VDC | SPDT (1 Form C) | Class F | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | Silver Cadmium Oxide (AgCdO) | -55 C | 85 °C | 15 ms | 10 ms | 24 VDC | 18 VDC | General Purpose | 40 A | Through Hole | 1200 W 12000 VA | cURus VDE | Sealed - Fully | 30 VDC 277 VAC | |
American Zettler | 660 Ohms | 36.4 mA | 2.4 VDC | SPDT (1 Form C) | Class F | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | Silver Cadmium Oxide (AgCdO) | 30 VDC 300 VAC | -55 C | 105 ░C | 15 ms | 10 ms | 24 VDC | 18 VDC | General Purpose | 40 A | Through Hole | 1200 W 12000 VA | cURus VDE | ||
American Zettler | 2560 Ohms | 18.8 mA | 4.8 VDC | SPDT (1 Form C) | Class B | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | Silver Tin Oxide (AgSnO) | 30 VDC 300 VAC | -55 C | 85 °C | 15 ms | 10 ms | 48 VDC | 36 VDC | General Purpose | 40 A | Through Hole | 1200 W 12000 VA | cURus VDE | ||
American Zettler | 380 Ohms | 47.4 mA | 1.8 VDC | SPDT (1 Form C) | Class B | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | Silver Cadmium Oxide (AgCdO) | 30 VDC 300 VAC | -55 C | 85 °C | 15 ms | 10 ms | 18 VDC | 13.5 VDC | General Purpose | 40 A | Through Hole | 1200 W 12000 VA | cURus VDE | Sealed - Fully | |
American Zettler | 27 Ohms | 185.2 mA | 0.5 VDC | SPDT (1 Form C) | Class B | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | Silver Cadmium Oxide (AgCdO) | 30 VDC 300 VAC | -55 C | 85 °C | 15 ms | 10 ms | 5 VDC | 3.75 VDC | General Purpose | 40 A | Through Hole | 1200 W 12000 VA | cURus VDE | Sealed - Fully | |
American Zettler | 40 Ohms | 0.15 A | 0.6 VDC | SPDT (1 Form C) | Class B | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | Silver Cadmium Oxide (AgCdO) | 30 VDC 300 VAC | -55 C | 85 °C | 15 ms | 10 ms | 4.5 VDC | General Purpose | 40 A | Through Hole | 1200 W 12000 VA | cURus VDE |
