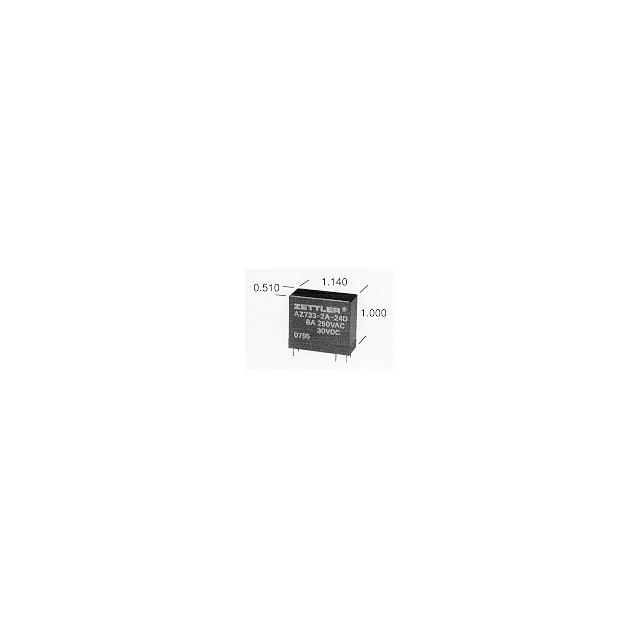

AZ733-2A Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE DPST 12A 9V
| Part | Coil Resistance | Approval Agency | Seal Rating | Coil Voltage | Contact Rating (Current) | Switching Voltage [Max] | Coil Insulation | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Load - Max Switching | Operate Time | Must Operate Voltage | Must Release Voltage | Release Time | Contact Material | Contact Form | Mounting Type | Relay Type | Coil Type | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 160 Ohms | CUR TUV UL | Sealed - Fully | 9 VDC | 12 A | 250 VDC 400 VAC | Class B | PC Pin | 85 °C | -40 C | 360 W 3324 VA | 15 ms | 6.3 VDC | 0.9 VDC | 5 ms | Silver Tin Oxide (AgSnO) | DPST-NO (2 Form A) | Through Hole | General Purpose | Non Latching | 56.3 mA |
 American Zettler | 160 Ohms | CUR TUV UL | Sealed - Fully | 9 VDC | 12 A | 250 VDC 400 VAC | Class F | PC Pin | 85 °C | -40 C | 360 W 3324 VA | 15 ms | 7.2 VDC | 0.9 VDC | 5 ms | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Through Hole | General Purpose | Non Latching | 56.3 mA |
 American Zettler | 275 Ohms | CUR TUV UL | Sealed - Fully | 12 VDC | 12 A | 250 VDC 400 VAC | Class F | PC Pin | 85 °C | -40 C | 360 W 3324 VA | 15 ms | 9.6 VDC | 1.2 VDC | 5 ms | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Through Hole | General Purpose | Non Latching | 43.6 mA |
American Zettler | CUR TUV UL | Sealed - Flux Protection | 24 VDC | 12 A | 250 VDC 400 VAC | Class F | PC Pin | 85 °C | -40 C | 360 W 3324 VA | 15 ms | 19.2 VDC | 2.4 VDC | 5 ms | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Through Hole | General Purpose | Non Latching | 21.8 mA | |
 American Zettler | 47 Ohms | CUR TUV UL | Sealed - Fully | 5 VDC | 12 A | 250 VDC 400 VAC | Class B | PC Pin | 85 °C | -40 C | 360 W 3324 VA | 15 ms | 3.5 VDC | 0.5 VDC | 5 ms | Silver Tin Oxide (AgSnO) | DPST-NO (2 Form A) | Through Hole | General Purpose | Non Latching | 106.4 mA |
American Zettler | 4.17 kOhms | CUR TUV UL | Sealed - Fully | 48 VDC | 12 A | 250 VDC 400 VAC | Class F | PC Pin | 85 °C | -40 C | 360 W 3324 VA | 15 ms | 38.4 VDC | 4.8 VDC | 5 ms | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Through Hole | General Purpose | Non Latching | 11.5 mA |
American Zettler | CUR TUV UL | Sealed - Fully | 24 VDC | 12 A | 250 VDC 400 VAC | Class F | PC Pin | 85 °C | -40 C | 360 W 3324 VA | 15 ms | 19.2 VDC | 2.4 VDC | 5 ms | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Through Hole | General Purpose | Non Latching | 21.8 mA |
