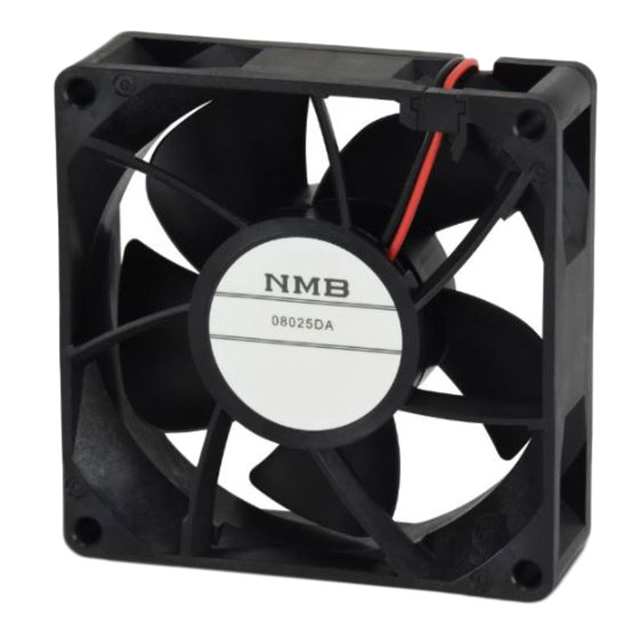

08025DA Series

Catalog

DC AXIAL FAN, BALL, 73CFM, 0.27A, 24V ROHS COMPLIANT: YES

Part	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Size / Dimension [z]	Size / Dimension [x]	Noise	RPM	Power (Watts)	Voltage - Rated	Termination	Bearing Type	Air Flow	Air Flow	Features	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Approval Agency
NMB TECHNOLOGIES 08025DA-24P-AA-00	Plastic	270 mA	70000 Hrs	Plastic	80 mm	80 mm	55 dB(A)	7000 RPM	6.48 W	24 VDC	2 Wire Leads	Ball	2.04 m³/min	73 CFM	Auto Restart	-10 °C	60 °C	Tubeaxial	0.265 lb	120.2 g	0.75 in H2O	186.8 Pa	25.4 mm
NMB TECHNOLOGIES 08025DA-12N-EU-02	Plastic	0.22 A	70000 Hrs	Plastic	80 mm	80 mm	45 dB(A)	5000 RPM	2.64 W	12 VDC	4 Wire Leads	Ball	1.43 mł/min	51.2 CFM	Auto Restart PWM Control Speed Sensor (Tach)	-10 °C	70 °C	Tubeaxial			0.42 in H2O	104.6 Pa	25.4 mm	7 V	13.2 VDC	CE cULus VDE
NMB TECHNOLOGIES 08025DA-12P-AA-00	Plastic	490 mA	70000 Hrs	Plastic	80 mm	80 mm	53 dB	7000 RPM	5.88 W	12 VDC	2 Wire Leads	Ball	2.03 m³/min	72.4 CFM	Auto Restart	-10 °C	60 °C	Tubeaxial	0.265 lb	120.2 g	0.75 in H2O	186.8 Pa	25.4 mm	7 V	13.2 VDC
