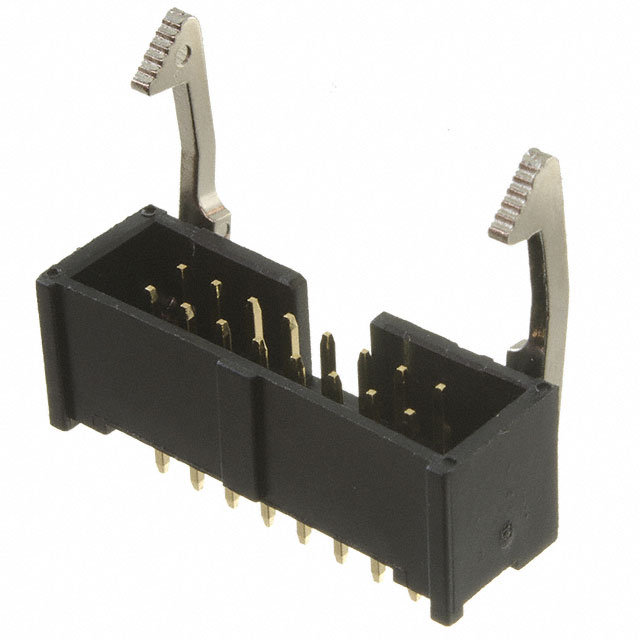

BHR-16 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 16POS 2.54MM

Part	Features	Contact Finish Thickness - Post	Termination	Insulation Material	Connector Type	Contact Shape	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Contact Material	Number of Positions	Shrouding	Contact Type	Contact Finish - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Style	Contact Finish Thickness - Mating	Insulation Color	Fastening Type	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Mounting Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Adam Tech BHR-16-VUA-ML	Keying Slot Polarizing Key	Flash	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Header	Square	All	0.1 in	2.54 mm	250 VAC	Brass	16	Shrouded - 4 Wall	Male Pin	Gold	Gold	0.358 "	9.1 mm	Board to Board Cable	Flash	Black	Push-Pull	2	-40 C	105 ░C	0.1 "	2.54 mm	Through Hole	3 A	0.13 "	3.3 mm	UL94 V-0

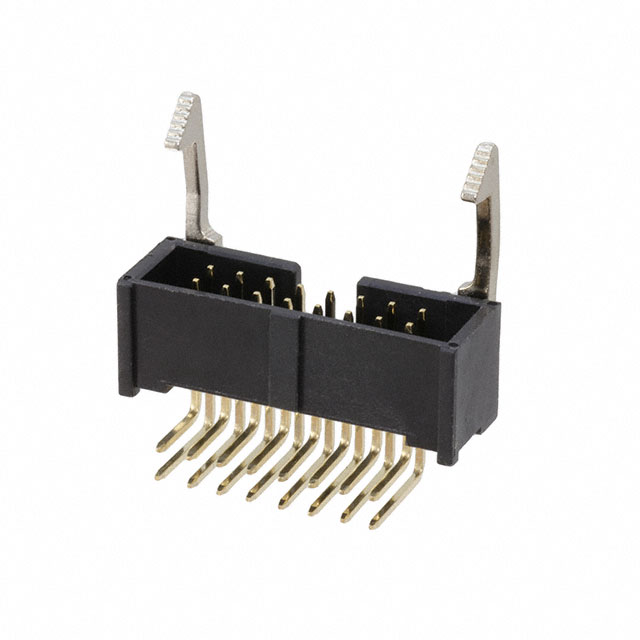

Adam Tech BHR-16-HUA-ML	Keying Slot	Flash	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Header	Square	All	0.1 in	2.54 mm	350 VAC	Brass	16	Shrouded - 4 Wall	Male Pin	Gold	Gold	0.354 in	9 mm	Board to Board Cable	Flash	Black	Latch Lock/Eject Hooks Long	2	-40 C	105 ░C	0.1 "	2.54 mm	Right Angle Through Hole	3 A			UL94 V-0	0.126 "	3.2 mm

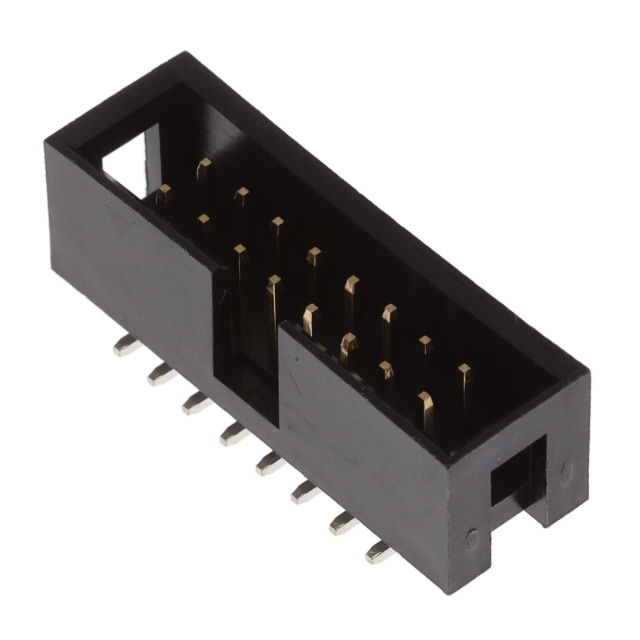

Adam Tech BHR-16-VSG-SMT	Keying Slot		Solder	Thermoplastic	Header	Square	All	0.1 in	2.54 mm	250 VAC	Brass	16	Shrouded - 4 Wall	Male Pin	Gold	Tin	0.413 in	10.49 mm	Board to Board Cable	Flash	Black	Push-Pull	2	-40 C	105 ░C	0.1 "	2.54 mm	Surface Mount	3 A			UL94 V-0

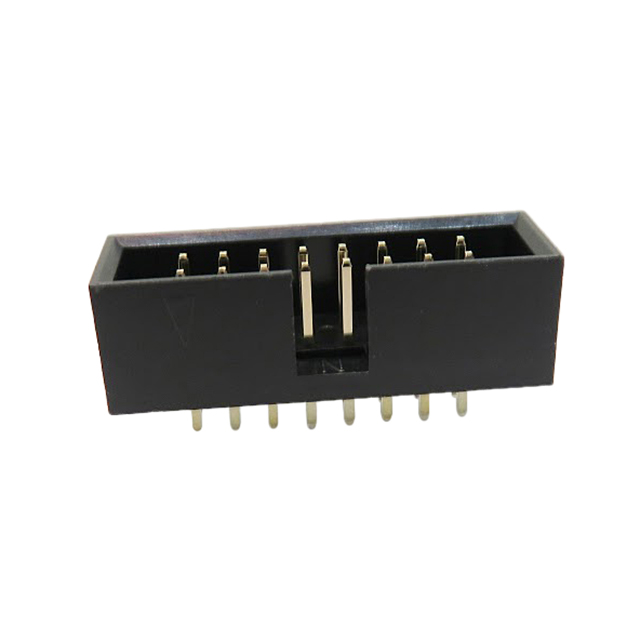

Adam Tech BHR-16-VUA	Keying Slot Polarizing Key	Flash	Solder	Polybutylene Terephthalate (PBT)	Header	Square	All	0.1 in	2.54 mm	250 VAC	Brass	16	Shrouded - 4 Wall	Male Pin	Gold	Gold	0.358 "	9.1 mm	Board to Board Cable	Flash	Black	Push-Pull	2	-55 C	105 ░C	0.1 "	2.54 mm	Through Hole	3 A	0.13 "	3.3 mm	UL94 V-0			8.8 mm	0.346 in
Adam Tech BHR-16-HUA	Keying Slot	Flash	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Header	Square	All	0.1 in	2.54 mm	250 VAC	Brass	16	Shrouded - 4 Wall	Male Pin	Gold	Gold	0.356 "	9.05 mm	Board to Board Cable	Flash	Black	Push-Pull	2	-40 C	105 ░C	0.1 "	2.54 mm	Right Angle Through Hole			3.4 mm	UL94 V-0	0.134 "
