629-36W Series
Manufacturer: EDAC Inc.
Beta
⌘K

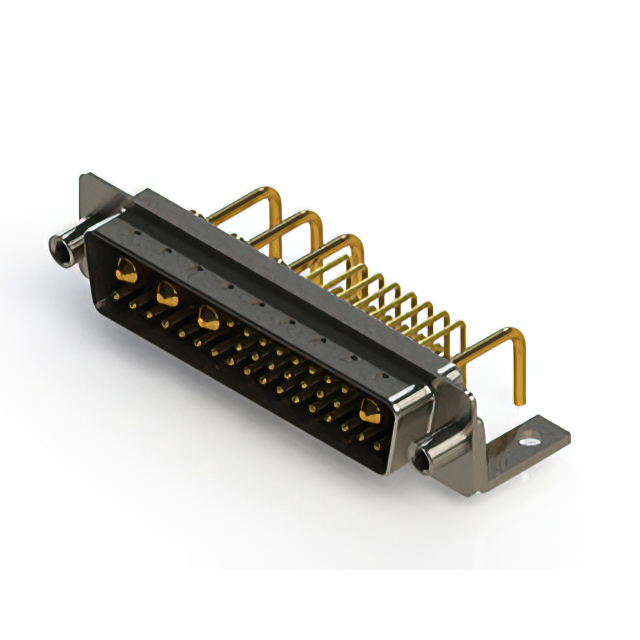

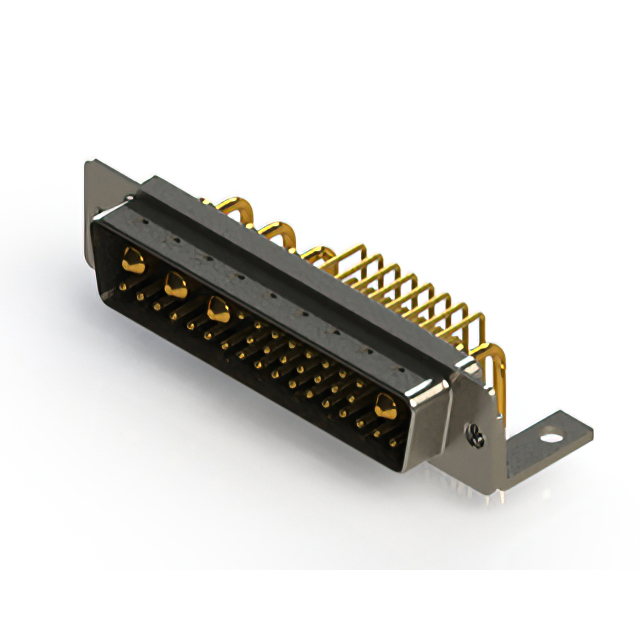

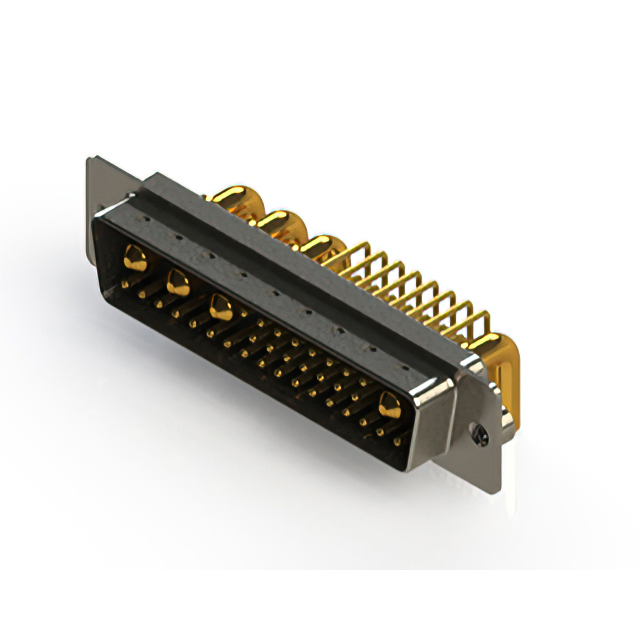

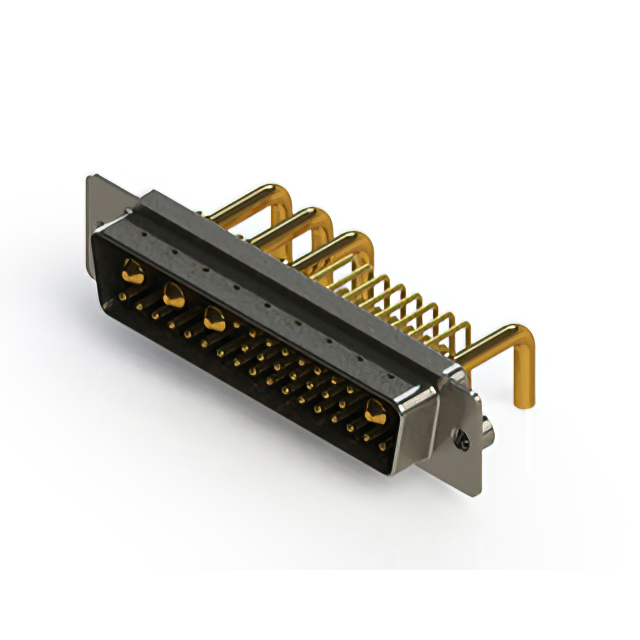

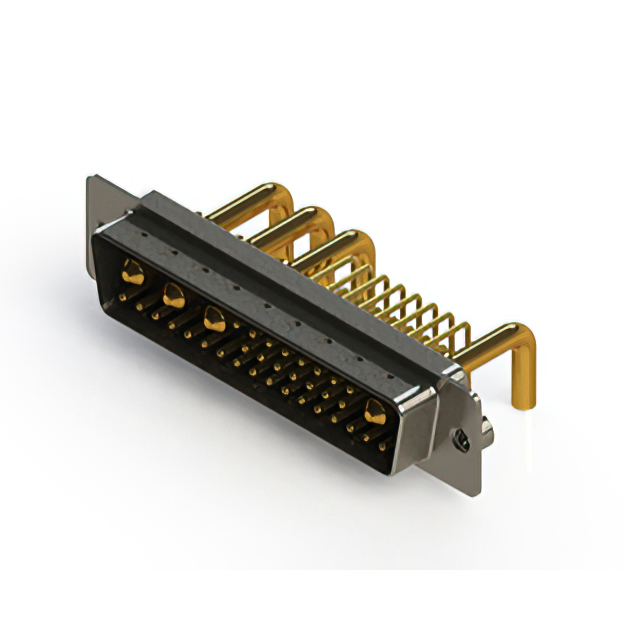

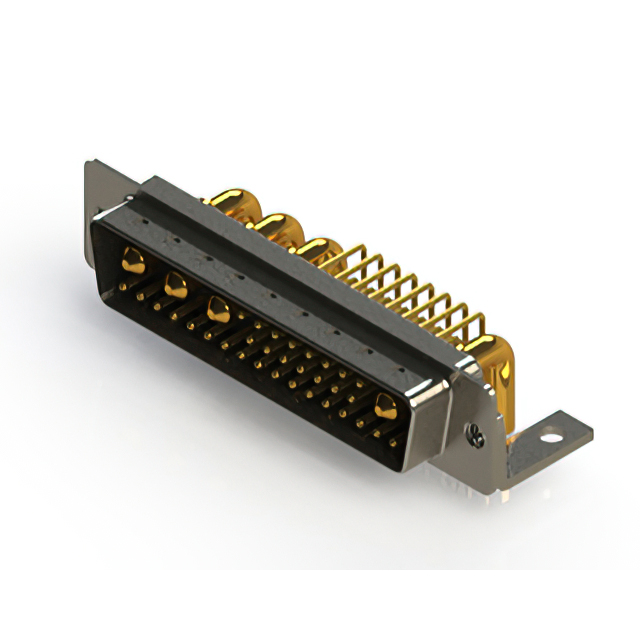

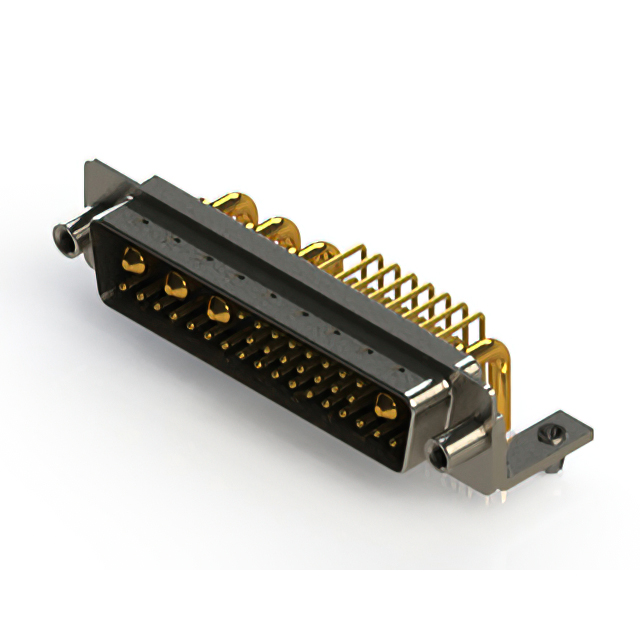

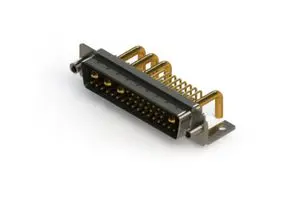

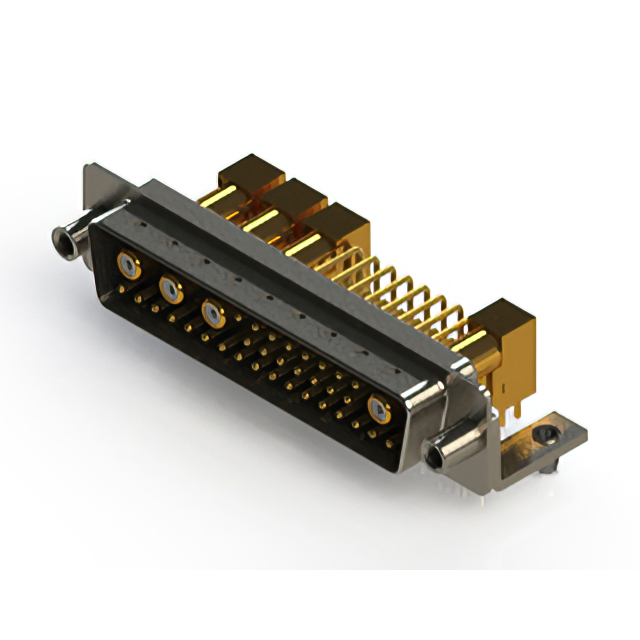

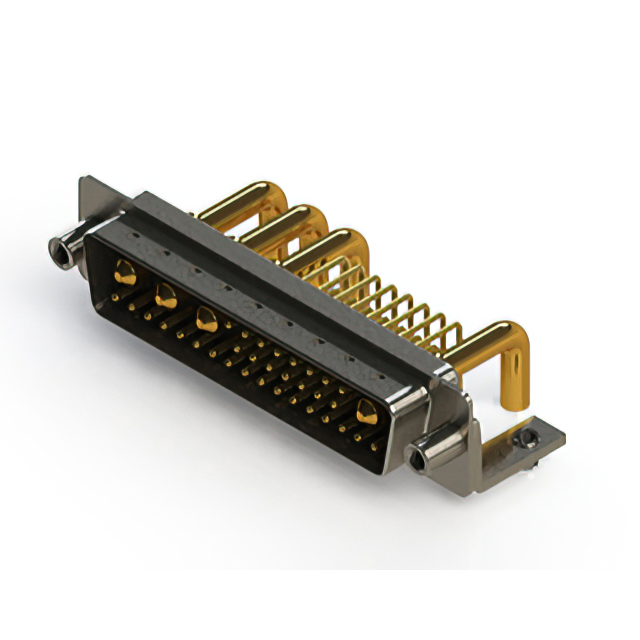

CONN D-SUB PLUG 36POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Voltage Rating | Number of Rows [custom] | Contact Type | Shell Material, Finish | Contact Finish | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Features | Connector Style | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Connector Type | Backset Spacing | Backset Spacing | Mounting Type | Termination | Current Rating (Amps) | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Signal and Power | Nickel Plated Steel | Gold | 20A 5A | 36W4 D DD | 5 | Grounding Indents Mounting Brackets | Combo D-Sub | UL94 V-0 | 30 Áin | 0.76 Ám | Housing/Shell | 4-40 | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | ||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Signal and Power | Nickel Plated Steel | Gold | 36W4 D DD | 5 | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | UL94 V-0 | 30 Áin | 0.76 Ám | 4-40 | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | 5 A 40 A | |||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Signal and Power | Nickel Plated Steel | Gold | 20A 5A | 36W4 D DD | 5 | Combo D-Sub | UL94 V-0 | 30 Áin | 0.76 Ám | Housing/Shell | 4-40 | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | |||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Coax Signal | Nickel Plated Steel | Gold | 36W4 D DD | 5 | Grounding Indents Mounting Brackets | Combo D-Sub | UL94 V-0 | M3 | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | 32 | 4 | Flash | |||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Signal and Power | Nickel Plated Steel | Gold | 10A 5A | 36W4 D DD | 5 | Board Lock Grounding Indents | Combo D-Sub | UL94 V-0 | 30 Áin | 0.76 Ám | 4-40 | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | |||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Signal and Power | Gold | 20A 5A | 36W4 D DD | 5 | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | UL94 V-0 | 30 Áin | 0.76 Ám | M3 | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | ||||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Signal and Power | Nickel Plated Steel | Gold | 36W4 D DD | 5 | Combo D-Sub | UL94 V-0 | 30 Áin | 0.76 Ám | Housing/Shell | 4-40 | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | 5 A 40 A | |||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Signal and Power | Gold | 10A 5A | 36W4 D DD | 5 | Grounding Indents Mounting Brackets | Combo D-Sub | UL94 V-0 | Housing/Shell (M3) | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | Flash | |||||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Signal and Power | Gold | 10A 5A | 36W4 D DD | 5 | Board Lock Grounding Indents | Combo D-Sub | UL94 V-0 | 4-40 | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | Flash | |||||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Signal and Power | Gold | 36W4 D DD | 5 | Grounding Indents Mounting Brackets | Combo D-Sub | UL94 V-0 | 30 Áin | 0.76 Ám | M3 | Plug Male Pins | 9.4 mm | 0.37 in | Right Angle Through Hole | Solder | 5 A 30 A |
