SR30 Series

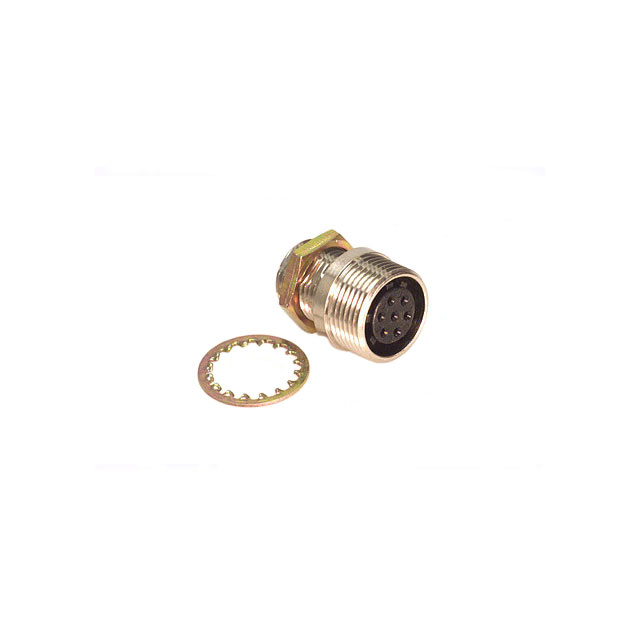

Standard Circular Connector 6P F STRT RECEPT T/H PANEL MNT SCREW LOC
Manufacturer: Hirose Electric Co Ltd
Catalog
Standard Circular Connector 6P F STRT RECEPT T/H PANEL MNT SCREW LOC
Beta
⌘K
Standard Circular Connector 6P F STRT RECEPT T/H PANEL MNT SCREW LOC
Standard Circular Connector 6P F STRT RECEPT T/H PANEL MNT SCREW LOC
Standard Circular Connector 6P F STRT RECEPT T/H PANEL MNT SCREW LOC
| Part | Accessory Type | For Use With/Related Products | Shell Size - Insert [custom] | Connector Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Color | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Applications | Shielding | Voltage Rating | Primary Material | Contact Finish - Mating | Backshell Material, Plating | Number of Positions | Shell Finish | Fastening Type | Insert Material | Shell Material | Cable Opening | Cable Opening | Compatible Tools | Tool Type | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

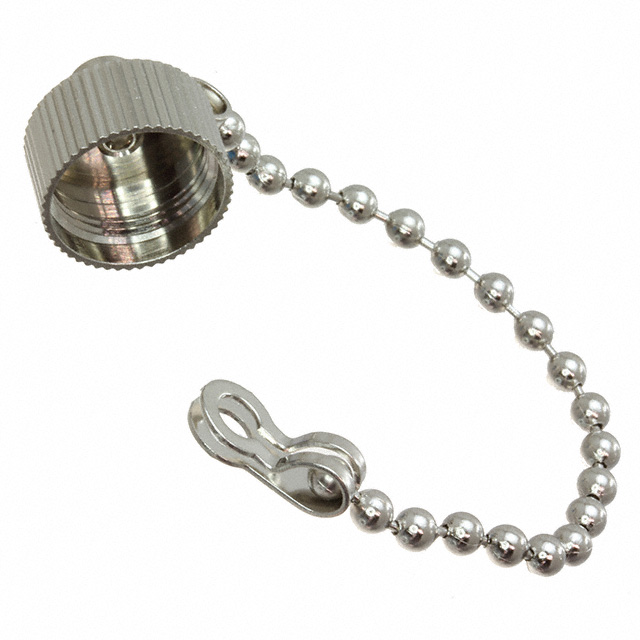

 Hirose Electric Co Ltd | Cap (Cover) Dust | SR30 Series Receptacle | 10 | ||||||||||||||||||||||||||

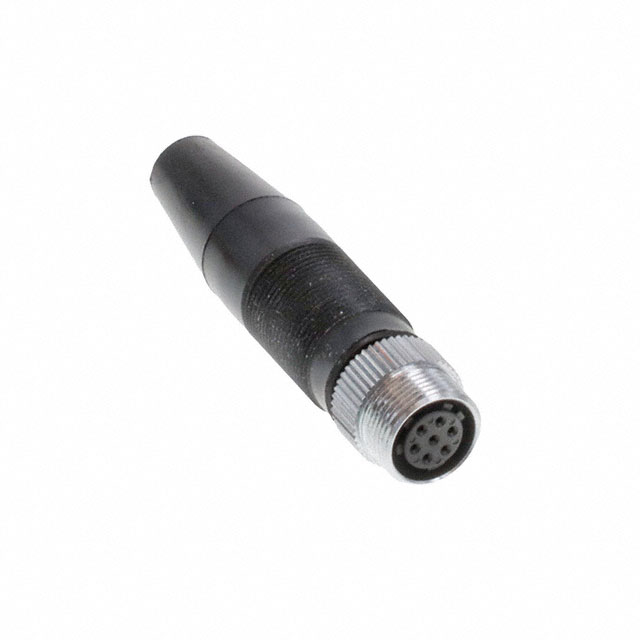

 Hirose Electric Co Ltd | 10 | Jack Female Sockets | Free Hanging (In-Line) | -10 °C | 60 °C | Keyed | Black Silver | Backshell Clamp Strain Relief | 118.1 µin | 3 µm | Phosphor Bronze | Radio | Unshielded | 100 VAC 140 VDC | Metal | Silver | Brass Nickel | 7 | Chrome | Threaded | Polyacetal | Brass | |||||||

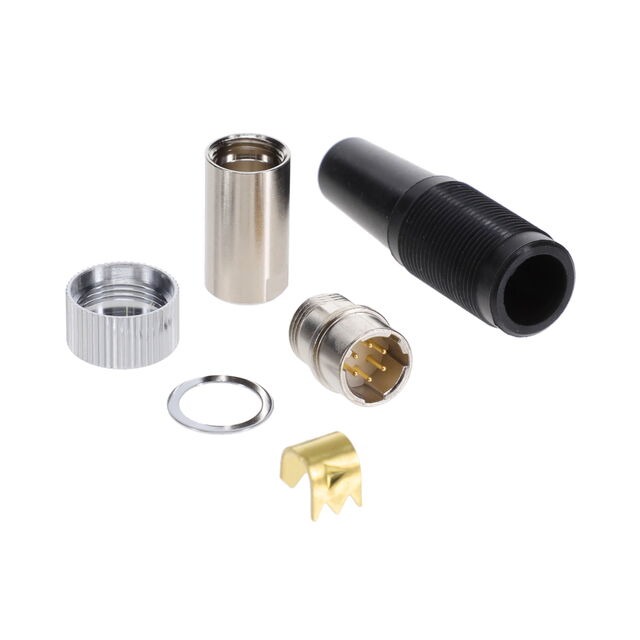

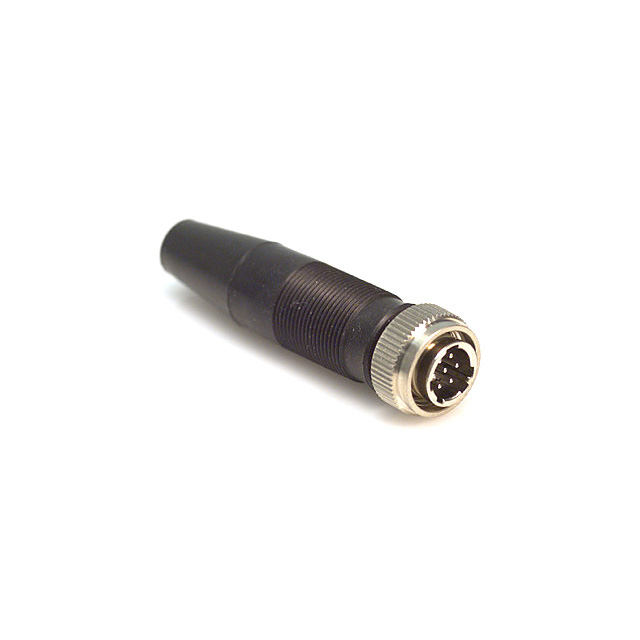

 Hirose Electric Co Ltd | 10 | Plug Male Pins | Free Hanging (In-Line) | -10 °C | 60 °C | Keyed | Black Silver | Backshell Clamp Coupling Nut Strain Relief | 7.87 Áin | 0.2 Ám | Brass | Radio | Unshielded | 100 VAC 140 VDC | Metal | Gold | Brass Nickel | 6 | Nickel | Threaded | Polyacetal | Zinc Alloy | 0.205 in | 5.2 mm | |||||
 Hirose Electric Co Ltd | |||||||||||||||||||||||||||||

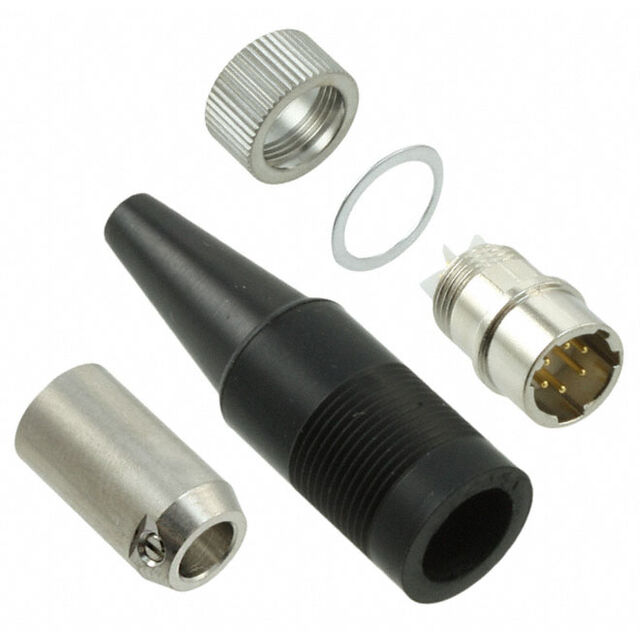

 Hirose Electric Co Ltd | Circular Connectors | SR30-10PE-T SR30-10PM-T | Die Set | ||||||||||||||||||||||||||

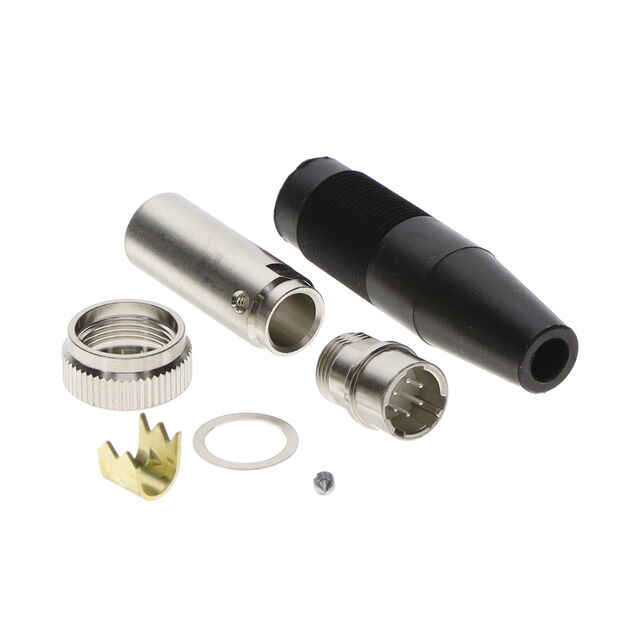

 Hirose Electric Co Ltd | 10 | Plug Male Pins | Free Hanging (In-Line) | -10 °C | 60 °C | Keyed | Black Silver | Backshell Clamp Coupling Nut Strain Relief | 118.1 µin | 3 µm | Brass | Radio | Unshielded | 100 VAC 140 VDC | Metal | Silver | Brass Nickel | 6 | Nickel | Threaded | Polyacetal | Zinc Alloy | 0.217 in | 5.5 mm | |||||
 Hirose Electric Co Ltd | 10 | Plug Male Pins | Free Hanging (In-Line) | -10 °C | 60 °C | Keyed | Black Silver | Backshell Coupling Nut Strain Relief | 8 µin | 0.203 µm | Brass | Radio | Unshielded | 100 VAC 140 VDC | Metal | Gold | Brass Nickel | 6 | Nickel | Threaded | Polyacetal | Zinc Alloy | |||||||
Hirose Electric Co Ltd | 10 | Jack Male Pins | Free Hanging (In-Line) | -10 °C | 60 °C | Keyed | Black Silver | Backshell Strain Relief | 7.87 Áin | 0.2 Ám | Phosphor Bronze | Radio | Unshielded | 100 VAC 140 VDC | Metal | Gold | Brass Nickel | 6 | Chrome | Threaded | Polyacetal | Brass | 0.169 in | 4.3 mm | |||||
Hirose Electric Co Ltd | 10 | Plug Male Pins | Free Hanging (In-Line) | -10 °C | 60 °C | Keyed | Black Silver | Backshell Clamp Coupling Nut Strain Relief | 7.87 Áin | 0.2 Ám | Brass | Radio | Unshielded | 100 VAC 140 VDC | Metal | Gold | Brass Nickel | 6 | Nickel | Threaded | Polyacetal | Zinc Alloy | 0.169 in | 4.3 mm | |||||
Hirose Electric Co Ltd | Cap (Cover) Dust | SR30 Series Receptacle | 10 |
