DF12E(3.0) Series

Catalog

CONN HDR 50POS SMD GOLD

Part	Number of Positions	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Height Above Board	Height Above Board [z]	Mounting Type	Pitch	Pitch	Mated Stacking Heights
Hirose Electric Co Ltd DF12E(3.0)-50DP-0.5V(81)	50	2	0.203 çm	8 µin	Header Outer Shroud Contacts	Gold	2.3 mm	0.091 "	Surface Mount	0.02 "	0.5 mm	3 mm
Hirose Electric Co Ltd DF12E(3.0)-14DP-0.5V(81)	14	2	0.203 çm	8 µin	Header Outer Shroud Contacts	Gold	2.3 mm	0.091 "	Surface Mount	0.02 "	0.5 mm	3 mm
Hirose Electric Co Ltd DF12E(3.0)-30DP-0.5V(81)	30	2	0.203 çm	8 µin	Header Outer Shroud Contacts	Gold	2.3 mm	0.091 "	Surface Mount	0.02 "	0.5 mm	3 mm
Hirose Electric Co Ltd DF12E(3.0)-36DP-0.5V(81)	36	2	0.203 çm	8 µin	Header Outer Shroud Contacts	Gold	2.3 mm	0.091 "	Surface Mount	0.02 "	0.5 mm	3 mm
Hirose Electric Co Ltd DF12E(3.0)-50DP-0.5V(80)	50	2			Header Outer Shroud Contacts	Gold	2.3 mm	0.091 "	Surface Mount	0.02 "	0.5 mm	3 mm
Hirose Electric Co Ltd DF12E(3.0)-32DP-0.5V(81)		2	0.203 çm	8 µin	Header Outer Shroud Contacts	Gold	2.3 mm	0.091 "	Surface Mount	0.02 "	0.5 mm	3 mm

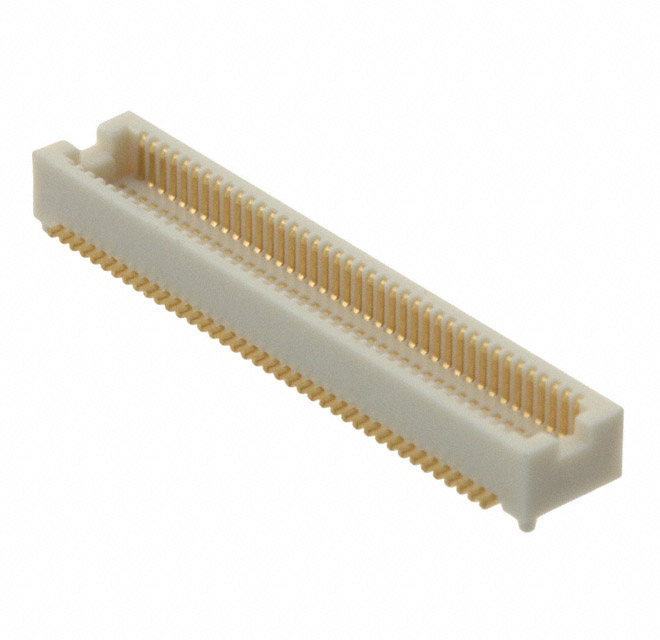

Hirose Electric Co Ltd DF12E(3.0)-80DP-0.5V(81)	80	2	0.203 çm	8 µin	Header Outer Shroud Contacts	Gold	2.3 mm	0.091 "	Surface Mount	0.02 "	0.5 mm	3 mm
