TPS63060-EP Series

HIGH INPUT VOLTAGE BUCK-BOOST CONVERTER WITH 2-A SWITCH CURRENT

Catalog

HIGH INPUT VOLTAGE BUCK-BOOST CONVERTER WITH 2-A SWITCH CURRENT

Part	Package / Case	Topology	Mounting Type	Current - Output	Number of Outputs	Voltage - Input (Min) [Min]	Function	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Supplier Device Package	Output Configuration	Voltage - Output (Min/Fixed)	Frequency - Switching	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Main Purpose	Outputs and Type	Outputs and Type	Voltage - Output	Supplied Contents	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Board Type
Texas Instruments TPS63060DSCT	10-WFDFN Exposed Pad	Buck-Boost	Surface Mount	2 A	1	2.5 V	Step-Up/Step-Down	8 V	12 V	10-WSON (3x3)	Positive	2.5 V	2.4 MHz	85 °C	-40 °C	Adjustable

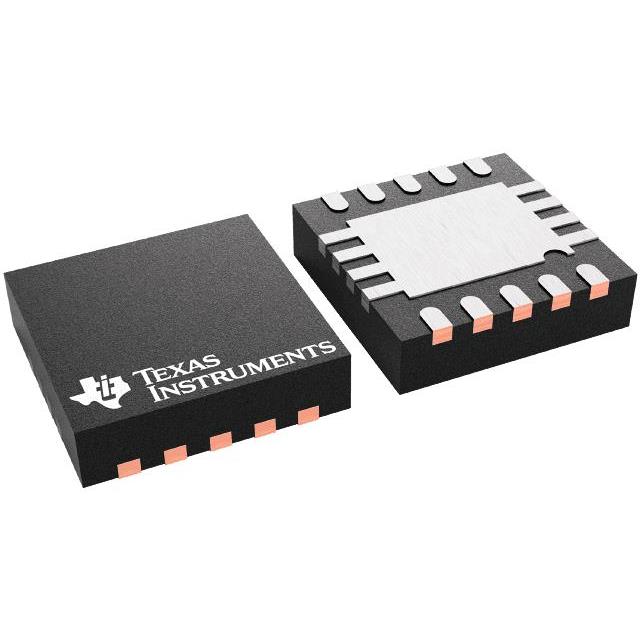

Texas Instruments V62/14602-01XE	10-WFDFN Exposed Pad	Buck-Boost	Surface Mount	2 A	1	2.5 V	Step-Up/Step-Down	8 V	12 V	10-WSON (3x3)	Positive	2.5 V	2.4 MHz	125 ¯C	-55 °C	Adjustable
Texas Instruments TPS63060DSCR	10-WFDFN Exposed Pad	Buck-Boost	Surface Mount	2 A	1	2.5 V	Step-Up/Step-Down	8 V	12 V	10-WSON (3x3)	Positive	2.5 V	2.4 MHz	85 °C	-40 °C	Adjustable

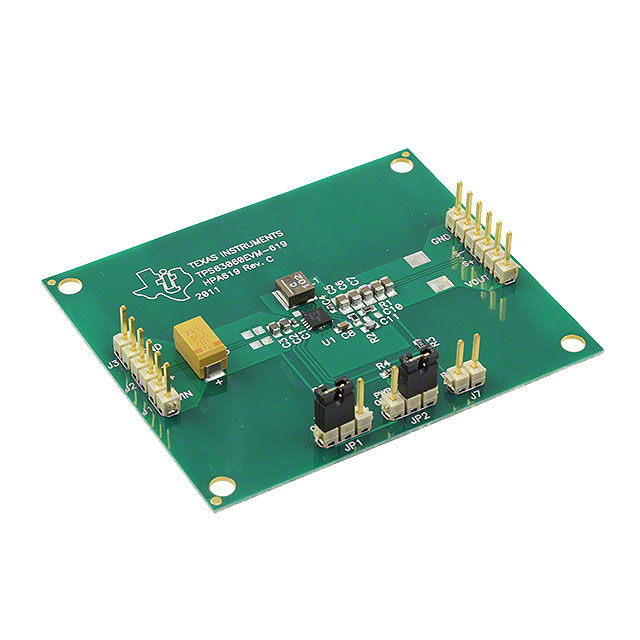

Texas Instruments TPS63060EVM-619				800 mA									2.4 MHz				DC/DC Step Up or Down	Non-Isolated	1	5 V	Board(s)	Buck-Boost	2.5 V	12 V	Fully Populated
Texas Instruments TPS63060MDSCTEP	10-WFDFN Exposed Pad	Buck-Boost	Surface Mount	2 A	1	2.5 V	Step-Up/Step-Down	8 V	12 V	10-WSON (3x3)	Positive	2.5 V	2.4 MHz	125 ¯C	-55 °C	Adjustable

Catalog

HIGH INPUT VOLTAGE BUCK-BOOST CONVERTER WITH 2-A SWITCH CURRENT

Key Features

• Up to 93% Efficiency2A/1A Output Current at 5V in Buck Mode1.3A Output Current at 5V in Boost Mode (VIN>4V)Automatic Transition Between Step Down and Boost ModeTypical Device Quiescent Current less than 30µAInput Voltage Range: 2.5V to 12VFixed and Adjustable Output Voltage Options from 2.5V to 8VPower Save Mode for Improved Efficiency at Low Output PowerForced Fixed Frequency Operation at 2.4MHz and SynchronizationPossiblePower Good OutputBuck-Boost Overlap ControlLoad Disconnect During ShutdownOvertemperature ProtectionOvervoltage ProtectionAvailable in a 3-mm × 3-mm, SON-10 PackageUp to 93% Efficiency2A/1A Output Current at 5V in Buck Mode1.3A Output Current at 5V in Boost Mode (VIN>4V)Automatic Transition Between Step Down and Boost ModeTypical Device Quiescent Current less than 30µAInput Voltage Range: 2.5V to 12VFixed and Adjustable Output Voltage Options from 2.5V to 8VPower Save Mode for Improved Efficiency at Low Output PowerForced Fixed Frequency Operation at 2.4MHz and SynchronizationPossiblePower Good OutputBuck-Boost Overlap ControlLoad Disconnect During ShutdownOvertemperature ProtectionOvervoltage ProtectionAvailable in a 3-mm × 3-mm, SON-10 Package

Description

The TPS63060 provides a power supply solution for products powered by either three-cell up to six-cell alkaline, NiCd or NiMH battery, or a one-cell or dual-cell Li-Ion or Li-polymer battery. Output currents can go as high as 2A while using a dual-cell Li-Ion or Li-Polymer Battery, and discharge it down to 5V or lower. The buck-boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters Power Save mode to maintain high efficiency over a wide load current range. The Power Save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 2.25A. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is packaged in a 10-pin SON PowerPAD package measuring 3mm × 3mm (DSC). The TPS63060 provides a power supply solution for products powered by either three-cell up to six-cell alkaline, NiCd or NiMH battery, or a one-cell or dual-cell Li-Ion or Li-polymer battery. Output currents can go as high as 2A while using a dual-cell Li-Ion or Li-Polymer Battery, and discharge it down to 5V or lower. The buck-boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters Power Save mode to maintain high efficiency over a wide load current range. The Power Save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 2.25A. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is packaged in a 10-pin SON PowerPAD package measuring 3mm × 3mm (DSC).
