VN7007AH Series

High side driver with current sense analog feedback for automotive applications

Catalog

High side driver with current sense analog feedback for automotive applications

Part	Voltage - Supply (Vcc/Vdd)	Current - Output (Max) [Max]	Grade	Fault Protection	Voltage - Load [Max]	Voltage - Load [Min]	Number of Outputs	Switch Type	Rds On (Typ)	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Input Type	Output Configuration	Ratio - Input:Output	Package / Case	Qualification	Mounting Type	Supplier Device Package
STMicroelectronics VN7007AHTR	Not Required	100 A	Automotive	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage UVLO	28 V	4 V	1	General Purpose	7 mOhm	On/Off	-40 °C	150 °C	N-Channel	Non-Inverting	High Side	1:1	OctaPAK (7 Leads + Tab)	AEC-Q100	Surface Mount	OctaPAK 7+1

Catalog

High side driver with current sense analog feedback for automotive applications

Description

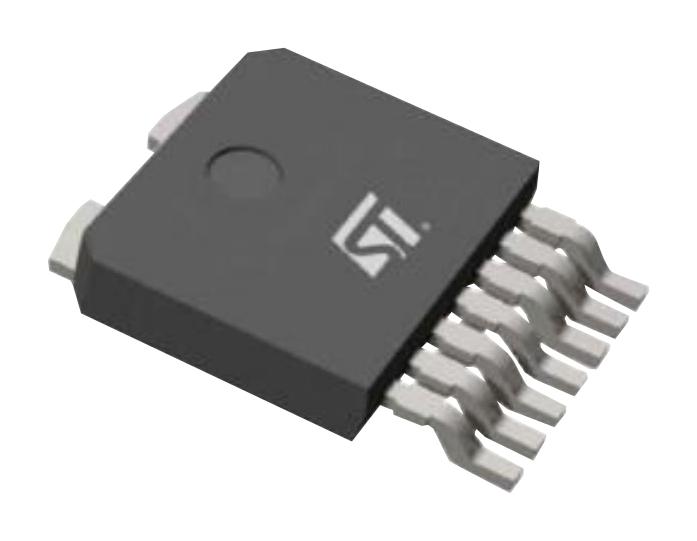

The device is a single channel high-side driver manufactured using ST proprietary VIPower®technology and housed in the Octapak package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics. The device integrates advanced protective functions such as load current limitation, overload active management by power limitation and overtemperature shutdown. A sense enable pin allows OFF-state diagnosis to be disabled during the module low-power mode as well as external sense resistor sharing among similar devices.
