C4841 Series

Catalog

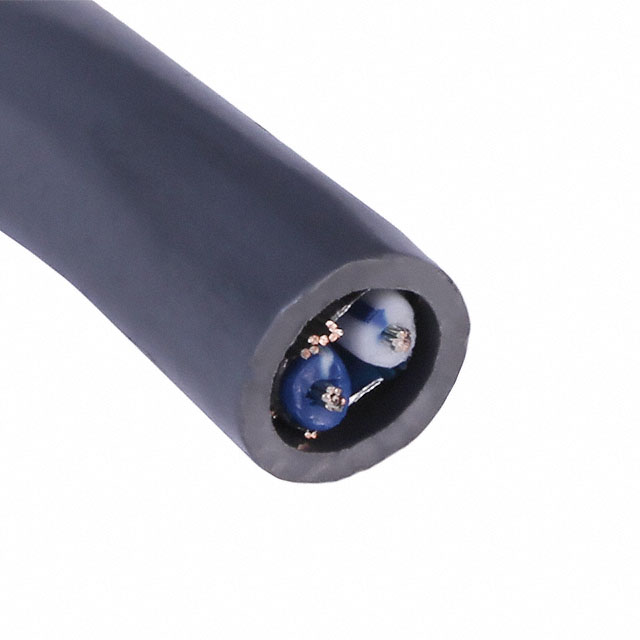

CABLE 2COND 24AWG GRAY SHLD

Part	Length	Length	Number of Conductors	Conductor Insulation	Conductor Material	Shield Type	Ratings	Cable Type	Features	Jacket (Insulation) Material	Length [x]	Length [x]	Usage	Wire Gauge	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Shield Material
Prysmian Group C4841A.41.10	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	2	Polyethylene (PE)	Copper Tinned	Braid Foil	UL Style 2919	Multi-Conductor	Low Capacitance	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m	Computer	24 AWG	Gray	7	32 AWG	0.235 "	5.97 mm	300 VDC	80 °C	-20 ░C	0.813 mm	0.032 in
Prysmian Group C4841A.41.10	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	2	Polyethylene (PE)	Copper Tinned	Braid Foil	UL Style 2919	Multi-Conductor	Low Capacitance	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m	Computer	24 AWG	Gray	7	32 AWG	0.235 "	5.97 mm	300 VDC	80 °C	-20 ░C	0.813 mm	0.032 in	90 % 100 %	Copper Flexfoil® Tinned
Prysmian Group C4841A.18.10	152.4 m	500 ft	2	Polyethylene (PE)	Copper Tinned	Braid Foil	UL Style 2919	Multi-Conductor	Low Capacitance	Poly-Vinyl Chloride (PVC)			Computer	24 AWG	Gray	7	32 AWG	0.235 "	5.97 mm	300 VDC	80 °C	-20 ░C	0.813 mm	0.032 in
Prysmian Group C4841A.18.10	152.4 m	500 ft	2	Polyethylene (PE)	Copper Tinned	Braid Foil	UL Style 2919	Multi-Conductor	Low Capacitance	Poly-Vinyl Chloride (PVC)			Computer	24 AWG	Gray	7	32 AWG	0.235 "	5.97 mm	300 VDC	80 °C	-20 ░C	0.813 mm	0.032 in	90 % 100 %	Copper Flexfoil® Tinned
